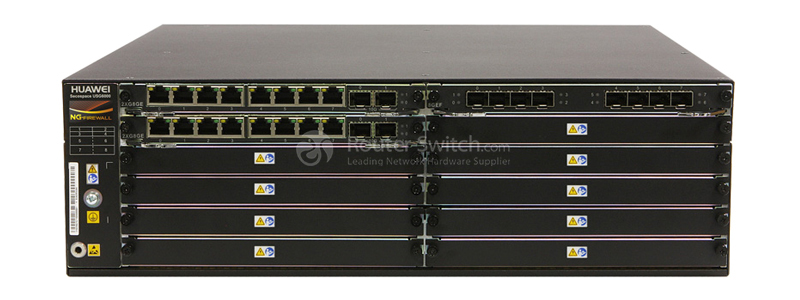

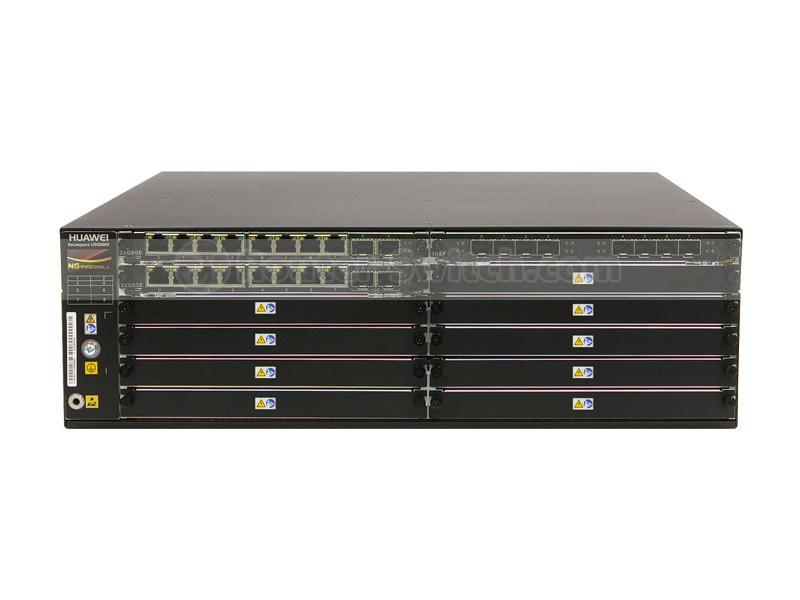

USG6680-AC, Huawei USG6680 Firewall, 16GE+8SFP+4*10GE/16G RAM/2 AC Power

USG6680-AC Specification

Fixed port

4 x 10 GE + 16 GE + 8 SFP

Height

3 U

Dimensions (H x W x D)

130.5 mm x 442 mm x 415 mm

Weight (full configuration)

24 kg

HDD

Optional. Supports 300 GB hard disks (RAID1 and hot swappable).

Redundant Power Supply

Standard configuration

AC Power Supply

100V to 240V

Maximum Power

700W

Features

NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam

Functions

Context Awareness

*Application, Content, Time, User, Attack, Location (ACTUAL)–based awareness capabilities

*Eight authentication methods (local, RADIUS, HWTACACS, SecureID, AD, CA, LDAP, and Endpoint Security)

Application Security

*Fine-grained identification of over 6000 application protocols, application-specific action, and online update of protocol databases

*Combination of application identification and virus scanning to recognize the viruses (more than 5 millions), Trojan horses, and malware hidden in applications

*Combination of application identification and content detection to identify file types and sensitive information to prevent information leaks

Intrusion Prevention

*Provides over 5,000 signatures for attack identification.

*Provides protocol identification to defend against abnormal protocol behaviors.

*Supports user-defined IPS signatures.

Web Security

*Cloud-based URL filtering with a URL category database that contains over 85 million URLs in over 80 categories

*Defense against web application attacks, such as cross-site scripting and SQL injection attacks

HTTP/HTTPS/FTP-based content awareness to defend against web viruses

*URL blacklist and whitelist and keyword filtering

Email Security

*Real-time anti-spam to detect and filter out phishing emails

*Local whitelist and blacklist, remote real-time blacklist, content filtering, keyword filtering, and mail filtering by attachment type, size, and quantity

*Virus scanning and notification for POP3/SMTP/IMAP email attachments

Data Security

*Data leak prevention based on content awareness

*File reassembly and data filtering for more than 30 file types (including Word, Excel, PPT, and PDF), and file blocking for more than 120 file types

Security Virtualization

Virtualization of security features, forwarding statistics, users, management operations, views, and resources (such as bandwidths and sessions)

Network Security

*Defense against more than 10 types of DDoS attacks, such as the SYN flood and UDP flood attacks

*VPN technologies: IPSec VPN, SSL VPN, L2TP VPN, MPLS VPN, and GRE

Routing

IPv4: static routing, RIP, OSPF, BGP, and IS-IS

IPv6: RIPng, OSPFv3, BGP4+, IPv6 IS-IS, IPv6 RD, and ACL6

Working Mode and Availability

Transparent, routing, or hybrid working mode and High Availability (HA), including the Active-Active and Active-Standby mode

Intelligent Management

*Evaluates the network risks based on the passed traffic and intelligently generates policies based on the evaluation to automatically optimize security policies. Supports policy matching ratio analysis and the detection of conflict and redundant policies to remove them, simplifying policy management.

*Provides a global configuration view and integrated policy management. The configurations can be completed in one page.

*Provides visualized and multi-dimensional report display by user, application, content, time, traffic, threat, and URL.
