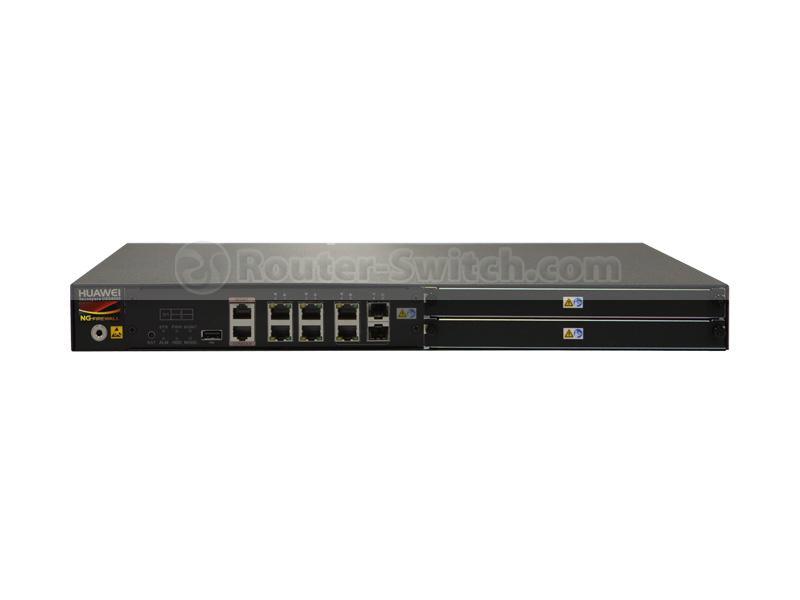

USG6370-AC, Huawei USG6370 Firewall, 8xGE RJ45/4xGE SFP/4GB Memory/1xAC Power

USG6370-AC Specifications

Description

USG6370 AC Host (8GE (RJ45) +4GE (SFP), 4GB Memory, 1 AC Power)

IPv4 Firewall Throughput1(1,518/512/64-byte, UDP)

4/4/1.2 Gbit/s

IPv6 Firewall Throughput1(1,518/512/84-byte, UDP)

4/4/1.6 Gbit/s

Firewall Throughput (packets per second)

1.8 Mpps

Firewall Latency (64-byte, UDP)

25 µs

FW + SA* Throughput2

4 Gbit/s

FW + SA + IPS Throughput2

2 Gbit/s

FW + SA + Antivirus Throughput2

2 Gbit/s

FW + SA + IPS + Antivirus + URL Throughput2

1.4 Gbit/s

FW + SA + IPS + Antivirus Throughput (real world)3

1 Gbit/s

Concurrent Sessions (HTTP1.1)1

4,000,000

New Sessions/Second (HTTP1.1)1

60,000

IPsec VPN Throughput1 (AES-128 + SHA1, 1,420-byte)

3 Gbit/s

Maximum IPsec VPN Tunnels (GW to GW)

4,000

Maximum IPsec VPN Tunnels (client to GW)

4,000

SSL Inspection Throughput4

90 Mbit/s

SSL VPN Throughput5

200 Mbit/s

Concurrent SSL VPN Users (default/maximum)

100/1,000

Security Policies (maximum)

15,000

Virtual Firewalls (default/maximum)

10/100

URL Filtering: Categories

More than 130

URL Filtering: URLs

Can access a database of over 120 million URLs in the cloud

Third-Party and Open-Source Ecosystem6

Open APIs for integration with third-party products through RESTCONF and NETCONF interfaces
Other third-party management software based on SNMP, SSH, and syslog
Collaboration with third-party tools, such as FireMon
Collaboration with Anti-APT solution

Centralized Management

Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and LogCenter

VLANs (maximum)

4,094

Virtual Interfaces (maximum)

1,024

High Availability Configurations

Active/Active, Active/Standby

Dimensions (H x W x D)

44.4 mm x 442 mm x 421 mm

Form Factor/Height

1U

Fixed Interfaces

8 x GE (RJ45) + 4 x GE (SFP)

USB 2.0 Port

Supported

Expansion Slot

2 WSIC*

Expansion I/O

WSIC: 2 x 10 GE (SFP+) + 8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45) BYPASS

Maximum Number of Interfaces

24 x GE (RJ45) + 4 x GE (SFP) + 4 x 10 GE (SFP+) or 20 x GE (SFP) + 8 × GE (RJ45)

MTBF

11.96 years

Weight (full configuration)

8.6 kg

Local Storage

Optional: Supports a 300 GB or 600 GB hard disk (the hard disk is hot-swappable, but the hard disk card is not)

AC Power Supply

100V to 240V, 50 Hz/60 Hz

Power Consumption (average/maximum)

56.13W/133.74W

Heat Dissipation

456 BTU/h

Power Supplies

Single 170W AC power supply; optional dual AC power supplies

Operating Environment (temperature/humidity)

Temperature: 0°C to 45°C (without optional HDD);
5°C to 40°C (with optional HDD) Humidity: 5% to 95% (without optional HDD), non-condensing;
5% to 90% (with optional HDD), non-condensing

Non-operating Environment

Temperature: –40°C to 70°C
Humidity: 5% to 95% (without optional HDD), non-condensing;
5% to 90% (with optional HDD), non-condensing

Operating Altitude (maximum)

5,000 meters (without optional HDD); 3,000 meters (with optional HDD)

Non-operating Altitude (maximum)

5,000 meters (without optional HDD); 3,000 meters (with optional HDD)

Noise

63 dBA

Software

ICSA Labs: Firewall, IPS, IPsec, and SSL VPN CC: EAL4+

Hardware

CB, CE-SDOC, ROHS, REACH & WEEE (EU), RCM, ETL, FCC & IC, VCCI, and BSMI

Regulatory Compliance

Products comply with CE markings per directives 2014/30/EU and 2014/35/EU

Safety

UL 60950-1
CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1

EMC: Emissions

EN 55022 Class A
ETSI EN 300 386
IEC 61000-3-2/EN 61000-3-2
IEC 61000-3-3/EN 61000-3-3
FCC CFR47 Part 15 Subpart B Class A
ICES-003 Class A
VCCI V-3 Class A
CNS 13438 Class A

EMC: Immunity

EN 55024
ETSI EN 300 386
CNS 13438 Class A
