U16Z05ACEQ, Huawei eSpace U1960 IP PBX, 1 SCU/1 MTU/AC Integrated Host

Huawei eSpace U1900 series gateways UC colution, eSpace u1910, eSpace U1930, eSpace U1960, eSpace U1980. eSpace U1900 series gateways are suited to be as core gateways in Huawei eSpace IP telephony solution and as access gateways for branch node in eSpace UC solution.

eSpace U1960 is a medium-capacity product in eSpace U1900 series which is suitable fot the medium-sized enterprises and branches less than 1,000 users. eSpace U1960 has MTU board for media resources and E1/T1 interfaces different from U1910 and U1930. Each MTU board provides 128 channels for media resources and two E1/T1 ports. Several MTU boards can be adopted according to the user capacity. CF cards can be inserted into MTU board to store voice messages. eSpace U1960 applies to medium and large-sized enterprises and supports centralized deployment where eSpace U1900 small capacity gateways can be used as access gateway in branches.

Quick Specs

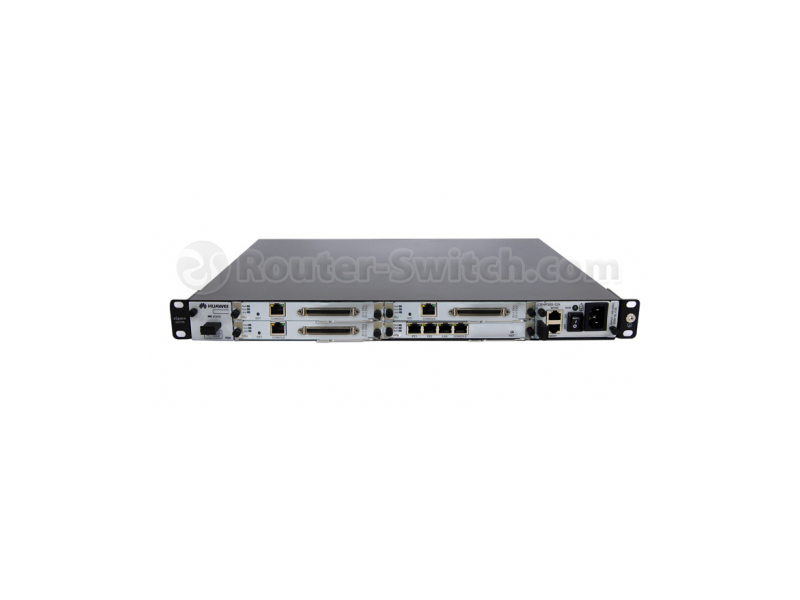

Figure 1 shows the appearance of U16Z05ACEQ.

.

Table 1 shows the Quick Specs.

Product Details

Figure 2 shows the typical applications of U1960.

U1960 is a small/medium-capacity voice gateway and applies to small, medium, and large-sized voice communication scenarios. It provides a wide range of voice services and supports two-node cluster deployment and geographical redundancy.

IPT application scenarios

When being deployed at the headquarters, U1960 provides call control services for network-wide users as a core voice gateway. The branches, according to their user capacities, can use different models of Huawei U1900 series gateways as local voice gateways. These local voice gateways support local regeneration to ensure service continuity. Using narrowband and broadband trunks, local voice gateways can be connected to external networks, such as PSTN, to implement communication between internal and external (mobile and fixedline) users. In this case, SIP phones can be connected directly. Analog phones and fax machines can be connected through integrated access devices (IADs).

UC application scenarios

Based on IPT application scenarios, U C a p p l i c a t i o n s e r v e r s ( e n h a n c e d communication suites) can be deployed at the same time to enrich communication channels and improve communication efficiency with a wide range of UC services, including presence, instant messaging, and multimedia conferencing.

Compare to Similar Items

Table 2 shows the comparison of U11Z02ACEQ, U13Z01ACEQ and U16Z05ACEQ.
