U16Z03ACFM

Name: U16Z03ACFM
SKU: U16Z03ACFM
Price: 2968 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

Skip to the beginning of the images gallery

Name:	U16Z03ACFM
Model:	U16Z03ACFM eSpace U1900 Series Unified Gateways
Brand:	Huawei
Detail:	U16Z03ACFM eSpace U1900 Series Unified Gateways eSpace U1960 AC Integrated Frame
	Rating: 90% 4.5/5.0 2 Reviews 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$2,968.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

U16Z03ACFM

U16Z03ACFM eSpace U1900 Series Unified Gateways eSpace U1960 AC Integrated Frame

Price: US$2,968.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

U16Z03ACFM Overview

Huawei eSpace U1900 series gateways UC colution, eSpace u1910, eSpace U1930, eSpace U1960, eSpace U1980. eSpace U1900 series gateways are suited to be as core gateways in Huawei eSpace IP telephony solution and as access gateways for branch node in eSpace UC solution.

eSpace U1960 is a medium-capacity product in eSpace U1900 series which is suitable fot the medium-sized enterprises and branches less than 1,000 users. eSpace U1960 has MTU board for media resources and E1/T1 interfaces different from U1910 and U1930. Each MTU board provides 128 channels for media resources and two E1/T1 ports. Several MTU boards can be adopted according to the user capacity. CF cards can be inserted into MTU board to store voice messages. eSpace U1960 applies to medium and large-sized enterprises and supports centralized deployment where eSpace U1900 small capacity gateways can be used as access gateway in branches.

Quick Specs

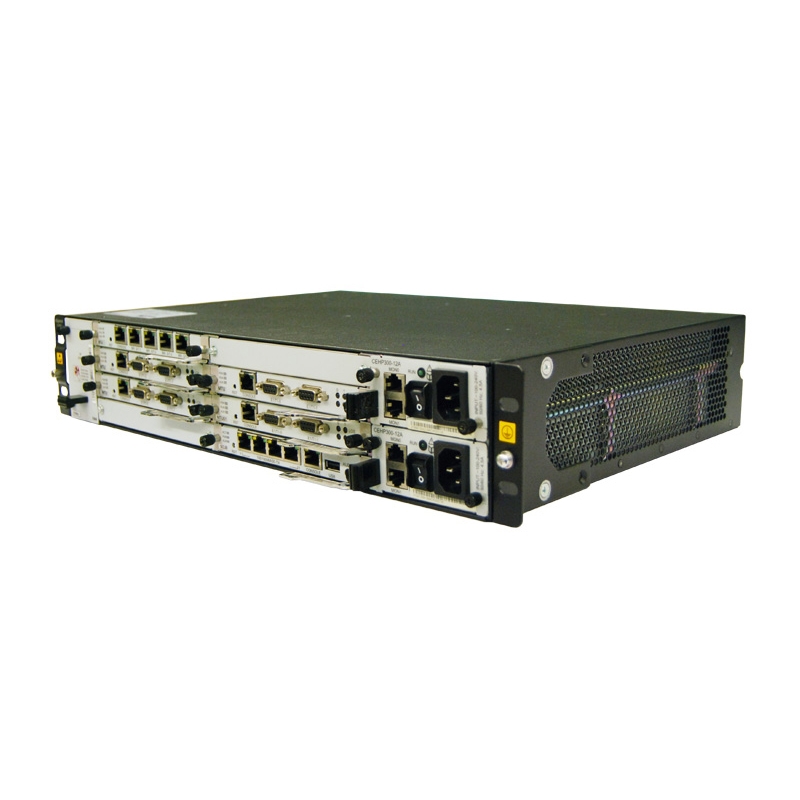

Figure 1 shows the appearance of U16Z03ACFM.

U16Z03ACFM Appearance

Table 1 shows the Quick Specs.

Product Code	U16Z03ACFM
Part Number	02356885
Description	eSpace U1960 AC Integrated Frame
Attributes	Hardware
Category	Hardware
Product Line	Unified Communications and Collaboration
Product Family	Unified Communications
Product Series	eSpace U1960(CRS V3)
UOM	PCS
Pack Weight(kg)	10.09
Pack Volume(m^3)	0.0513
*Pack Dimension(DWH mm)*	600450190
*Net Dimension(DWH mm)*	31044286
Typic Power(W)	23

Product Details

Figure 2 shows the typical applications of U1960.

U1960 is a small/medium-capacity voice gateway and applies to small, medium, and large-sized voice communication scenarios. It provides a wide range of voice services and supports two-node cluster deployment and geographical redundancy.

IPT application scenarios

When being deployed at the headquarters, U1960 provides call control services for network-wide users as a core voice gateway. The branches, according to their user capacities, can use different models of Huawei U1900 series gateways as local voice gateways. These local voice gateways support local regeneration to ensure service continuity. Using narrowband and broadband trunks, local voice gateways can be connected to external networks, such as PSTN, to implement communication between internal and external (mobile and fixedline) users. In this case, SIP phones can be connected directly. Analog phones and fax machines can be connected through integrated access devices (IADs).

IPT application scenarios

UC application scenarios

Based on IPT application scenarios, UC applicationservers (enhanced communication suites) can be deployed at the same time to enrich communication channels and improve communication efficiency with a wide range of UC services, including presence, instant messaging, and multimedia conferencing.

UC application scenarios

Compare to Similar Items

Table 2 shows the comparison of U11Z11ACFM, U16Z03ACFM.

Product Code	U11Z11ACFM	U16Z03ACFM
Part Number	02356691	02356885
Description	eSpace U1911 AC Integrated Frame	eSpace U1960 AC Integrated Frame
Product Series	eSpace U1911(CRS V3)	eSpace U1960(CRS V3)
Typic Power(W)	23	23

Get more information

Do you have any question about the U16Z03ACFM

Quality Certifications

Specification

U16Z03ACFM Specification

eSpace U1960 Specifications
Maximum number of users		1,000(a maximum of 192 FXS ports for analog users or 1,000 SIP users)
Terminal type		Analog phones, IP phones, video phones and soft clients
Port		72 FXO ports or 14 E1/T1 ports
Trunk protocol		SS7, R2, PRI, QSIG, SIP
Codec		G.711A/μ, G.729a/b/ab, iLBC, G.722/G.722.1/G.722.2
Number of meeting participants		A maximum of 360 meeting participants which can be allocated to 120 meeting halls (each hall can support up to 60 participants by maximum)
Built-in voice mail(optional)		30 channels concurrently Built-in 16G SD storage card
Power supply		AC: 100 V to 240 V, 50 Hz/60 Hz DC: –38.4 V to –60 V (typical value: –48 V) Redundancy: 1+1 backup
Maximum power consumption		220 W (full configuration)
Dimensions (H * W * D)		Standard 19-inch 2 U subrack 86.1 mm * 442 mm * 310 mm
Weight		10 kg (full configuration)
Environment	Temperature	Storage temperature: –40° C to +70° C Long-term operating temperature: 0° C to 45° C Short-term operating temperature: –5° C to +55° C
	Relative humidity	5% to 95% (without condensation)
	Dustproof	Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment)
System Reliability		99.995%
Maintainability		Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST)
Manageability		Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common issues could arise with the U16Z03ACFM and how can I troubleshoot them?

Common issues include connectivity problems and configuration errors. Refer to the troubleshooting section in the manual or Huawei support for solutions.

What accessories are available with the U16Z03ACFM?

Accessories include power adapters, network cables, and mounting brackets. Additional licenses for expanded features may also be available.

How does the U16Z03ACFM compare to other similar products?

The U16Z03ACFM offers a competitive edge with its integrated AC, user capacity, and range of features, typically at a lower total cost of ownership than similar products.

Can the U16Z03ACFM be used in remote office environments?

Yes, the U16Z03ACFM is versatile enough to support remote offices and branch locations as part of a unified communication solution.

Learn More

How cost-effective is the U16Z03ACFM eSpace U1960 AC Integrated Frame?

The U16Z03ACFM offers an excellent balance of price and performance, making it ideal for mid-sized enterprises looking for reliable communication infrastructure.

What are the key characteristics of the U16Z03ACFM eSpace U1960 AC Integrated Frame?

The U16Z03ACFM features integrated AC, high reliability, and supports up to 10,000 users. It also supports diverse communication and collaboration features.

What is the primary application scenario for the U16Z03ACFM?

The U16Z03ACFM is suitable for mid-sized enterprises and organizations that need a robust and unified communication platform.

How do I install the U16Z03ACFM eSpace U1960?

Follow the detailed installation guide provided by Huawei, ensuring proper connection of power supplies, network interfaces, and user terminals.

Does the U16Z03ACFM require software upgrades?

Yes, periodic software upgrades are recommended to maintain optimal performance and security.

Are there alternative products to the U16Z03ACFM?

Yes, alternatives include other models in the Huawei eSpace U1900 Series, like the eSpace U1980 and eSpace U1920, depending on your needs.

What common issues could arise with the U16Z03ACFM and how can I troubleshoot them?

Common issues include connectivity problems and configuration errors. Refer to the troubleshooting section in the manual or Huawei support for solutions.

What accessories are available with the U16Z03ACFM?

Accessories include power adapters, network cables, and mounting brackets. Additional licenses for expanded features may also be available.

How does the U16Z03ACFM compare to other similar products?

The U16Z03ACFM offers a competitive edge with its integrated AC, user capacity, and range of features, typically at a lower total cost of ownership than similar products.

Can the U16Z03ACFM be used in remote office environments?

Yes, the U16Z03ACFM is versatile enough to support remote offices and branch locations as part of a unified communication solution.
