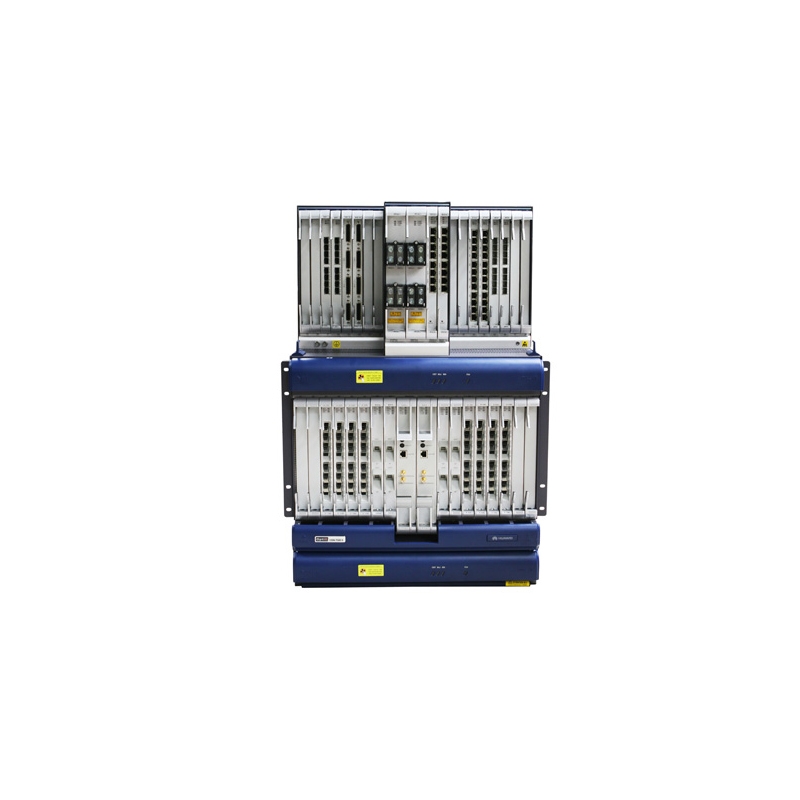

Huawei TNN1XMD2 Overview

The Huawei TNN1XMD2 is a carrier-grade optical multiplexing board designed for OptiX OSN MSTP transmission systems. This bidirectional 2-channel module combines CWDM&DWDM technology to efficiently multiplex and demultiplex wavelengths over single-fiber links, helping service providers and enterprise networks in Asia, Europe, Africa, and North America expand backbone capacity without new fiber. With broad support for packet, SDH, and OTN networking modes, the TNN1XMD2 enables flexible multiservice transport and reliable long-distance aggregation.

Product Highlights

2 ch

Dual Channel

40 λ

DWDM Ready

8 λ

CWDM Ready

Product Applications Scenarios

Service Providers

The TNN1XMD2 increases fiber capacity using CWDM&DWDM, allowing carriers to aggregate multi-service traffic and defer new fiber builds, reducing backbone upgrade costs by up to 40%.

Enterprise Network

Enterprises can use the TNN1XMD2 to multiplex SAN, Ethernet, and SDH services over a single pair of fibers, simplifying campus or metro interconnects and improving link utilization.

Data Center

In regional data centers, the board aggregates FE/GE/10GE services onto WDM wavelengths, supporting resilient inter-DC connectivity and lowering transport costs per Gbit/s.

Product Features Comparison


Model	TNN1XMD2, Huawei TNN1XMD2 Optical Multiplexing Board, 2-Channel, Bidirectional, CWDM&DWDM	TN97TM2001, Huawei TN97TM2000 Series Wavelength Multiplexing Board, 20 ports, C Band, 191.275~196.075THz	TN11DCU04, Huawei OSN Series Dispersion Compensation Unit, 80km distance/G.652 fiber/For OSN	TN11DCU05, Huawei OSN Series Dispersion Compensation Unit, 100km G.652, For OSN, Type E
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	Bidirectional 2-Channel Optical Multiplexing/DeMultiplexing Board(CWDM&DWDM )	Wavelength Multiplexing	Dispersion Compensation Unit	Dispersion Compensation Unit
Port Configuration	n/a	20	n/a	n/a
Supported Speed	n/a	n/a	n/a	n/a
Compatible Platform	OptiX OSN Series Shared Board	n/a	OSN	OSN
Installation Type	PCS	Plug-in Module	Rack Mountable	Rack-mountable

Optional Add-ons

Model Number	Description
TN11DCU04	Huawei TN11DCU04 OSN dispersion compensation unit for G.652 fiber up to 80km, complements WDM transport.
TN11DCU05	Huawei TN11DCU05 OSN dispersion compensation unit for 100km G.652 links, enhancing long-haul DWDM spans.
TN11SFIU01	Huawei TN11SFIU01 fiber interface board with SFP-based 1G/10G optical ports for OSN access and aggregation.

Quality Certifications

Specification

Huawei TNN1XMD2 Specification

Model

TNN1XMD2

Brand

Huawei

Part Number

03030SFS

Description

Bidirectional 2-Channel Optical Multiplexing/DeMultiplexing Board(CWDM&DWDM )

Discount Category

OptiX OSN Series Shared Board

Product Line

Networking

Sub Product Family

MSTP

Product Series

OSN 7500 II

UOM

PCS

Net Dimension(D*W*H mm)

208*193*19

Typic Power(W)

Dimensions

800mm (H) x 496mm (W) x 295mm (D)

Switch Capacity

Packet: 320 Gbit/s and TDM: 360 Gbit/s (higher order), 40 Gbit/s (lower order), OTN: 560Gbit/s

Service Slots

32 slots, 16 slots for interface boards and 16 slots for processing boards with same bandwidth per slot

Ethernet interface

FE/GE/10GE/40GE

SDH interface

STM-1/4/16/64

PDH interface

E1/T1, E3/T3, E4

ATM interface

E1, STM-1

WDM interface

40 DWDM wavelengths, compliant with ITU-T G.694.1 8 CWDM wavelengths, compliant with ITU-T G.694.2

SAN interface

FDDI, ESCON, FICON/FICON Express, FC100/200/400/800/1200

PCM interface

FXS/FXO, 2/4W VF & E&M X.21/V.35/V.11/V.24/V.28, RS232/RS422, RS449/RS423A/RS422A, RS530/RS530A,RS485, G.703 64 kbit/s codirectional

Other interface

DDN, Video

Networking Mode

Supports packet, hybrid (packet + SDH or OTN + SDH) or SDH networking Supporting WDM networking Supporting single-fiber bidirectional transmission

Power Supply

48V DC/-60V DC

Ethernet Feature

E-Line and E-LAN, QinQ MPLS-TP based VPWS and VPLS Multi-section pseudo-wire (MS-PW) ETH PWE3, TDM PWE3, A TM/IMA PWE3 IGMP Snooping V2 Blacklist, Broadcast packet suppression, ACL VLAN SWAP

PCM Feature

Voice or data Conference/Meeting,P2MP,MP2MP FXO/FXS mode can be set by software E&M Interface voltage can be set by software (-48V/-12V) E&M signaling can be set by software (Bell types I, II, III, IV, V and British Telecom SSDC5)

QoS

Hierarchical QoS scheduling and traffic shaping DiffServ mode based on traffic classification, eight priority queues Simple traffic classification, complex traffic classification, per hop behavior (PHB),and A CL Committed access rate (CAR), shaping based on port scheduling priority PQ scheduling priority, weighted fair queuing (WFQ) and PQ+WFQ queuing Tail drop and weighted random early detection (WRED)

MPLS OAM

LSP/PW OAM: FDI, BDI,CV, FFD, TraceRoute, Ping, LM, DM PW OAM: CES PW VCCV

Ethernet OAM

ETH-CC, ETH-Loopback, ETH-Link Trace, Remote Loopback, Remote Fault Detection, RMON(RFC 2819)

MPLS-TP based Service Protection

LSP/PW Linear protection, Ring protection Anti multifailure protection based on MS-PW LAG, MC-LAG, Dual-homing protection, LPT

SDH based Service Protection

2/4 fiber MS-SP Ring; 1+1/1:n (n SNCP/SNCTP Tributary protection for E1/T1, E3/T3, E4, STM-1(e) and FE

ASON

Distributed restorable rerouting protection 5-level service dedicated protection scheme based on different SLA: Diamond, Gold, Silver, Copper and Iron services Based on VC-4 and VC-12 granularity

Synchronization

Both Ethernet and SDH networks supporting clock synchronization Supporting G.813, Synchronous Ethernet and IEEE 1588v2 synchronization Adaptive clock recovery (ACR) Two external clock inputs/outputs (2MHz or 2 Mbit/s) Two external time signals (1pps+TOD)
