DS420+

DS420+ Specification

CPU

CPU Model

Intel Celeron J4025

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

2-core 2.0 (base) / 2.9 (burst) GHz

Hardware Encryption Engine (AES-NI)

√

Memory

System Memory

2 GB DDR4 non-ECC

Total Memory Slots

1

Maximum Memory Capacity

6 GB (2 GB + 4 GB)

Notes

* Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

* Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

4

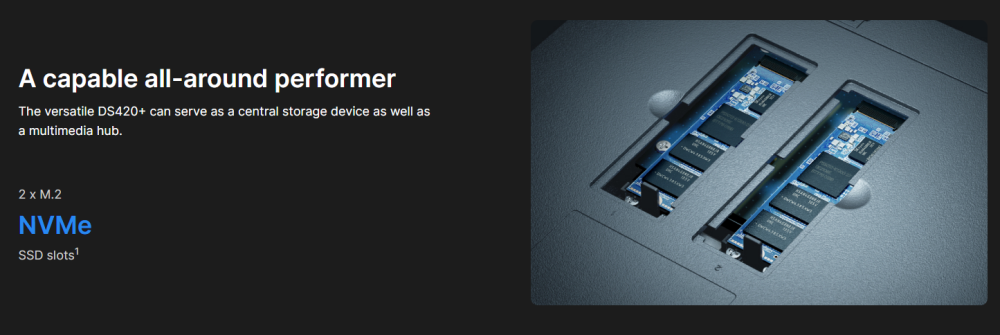

M.2 Drive Slots

2 (NVMe)

Compatible Drive Type*

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe SSD

Maximum Single Volume Size*

108 TB

Hot Swappable Drive

√

Notes

* "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

* Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

RJ-45 1GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port*

2

Notes

The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

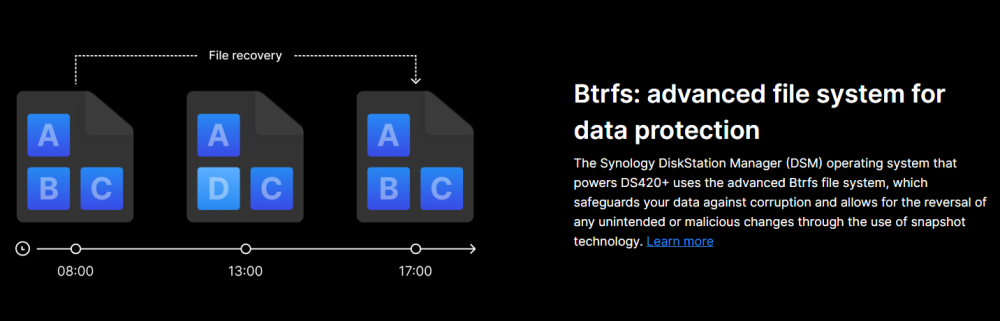

File System

Internal Drives

Btrfs

EXT4

External Drives

Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT

Appearance

Size (Height x Width x Depth)

166 mm x 199 mm x 223 mm

Weight

2.18 kg

Others

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

Full-Speed Mode

Cool Mode

Quiet Mode

Brightness Adjustable Front LED Indicators

√

Power Recovery

√

Noise Level*

19.8 dB(A)

Scheduled Power On / Off

√

Wake on LAN / WAN

√

Power Supply Unit / Adapter

90 W

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

28.30 W (Access)

8.45 W (HDD Hibernation)

British Thermal Unit

96.5 BTU/hr (Access)

28.81 BTU/hr (HDD Hibernation)

Notes

* Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

* Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

FCC

CE

BSMI

EAC

CCC

KC

VCCI

RCM

Warranty

3 Years

Notes: The warranty period starts from the purchase date as stated on your purchase receipt.

Environment

RoHS Compliant

Packaging Content

Main Unit X 1

Accessory Pack X 1

AC Power Adapter X 1

AC Power Cord X 1

RJ-45 LAN Cable X 2

Quick Installation Guide X 1

Optional Accessories

DDR4 non-ECC SODIMM: D4NESO-2666-4G

3.5" SATA HDD: HAT5300

2.5" SATA SSD: SAT5200

M.2 2280 NVMe SSD: SNV3400

VisualStation: VS960HD/VS360HD

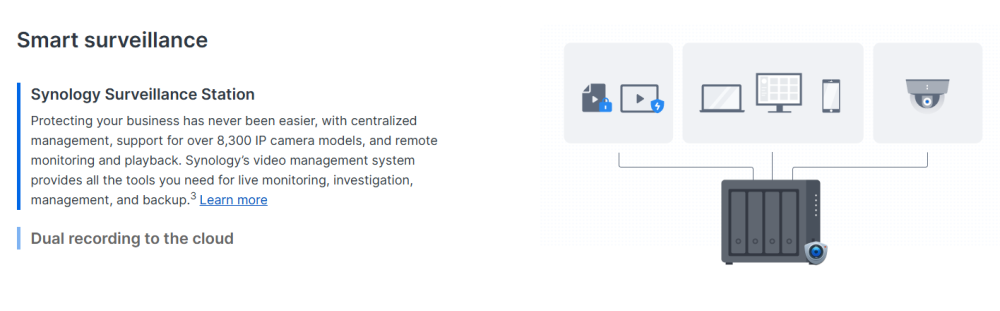

Surveillance Device License Pack

Notes: All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
