SVN5850-AC, Huawei SVN5850 Security Gateway, 8xGE RJ45/4xGE SFP/4GB Memory

100% Genuine Ready to Ship

$21,472.00

Overview

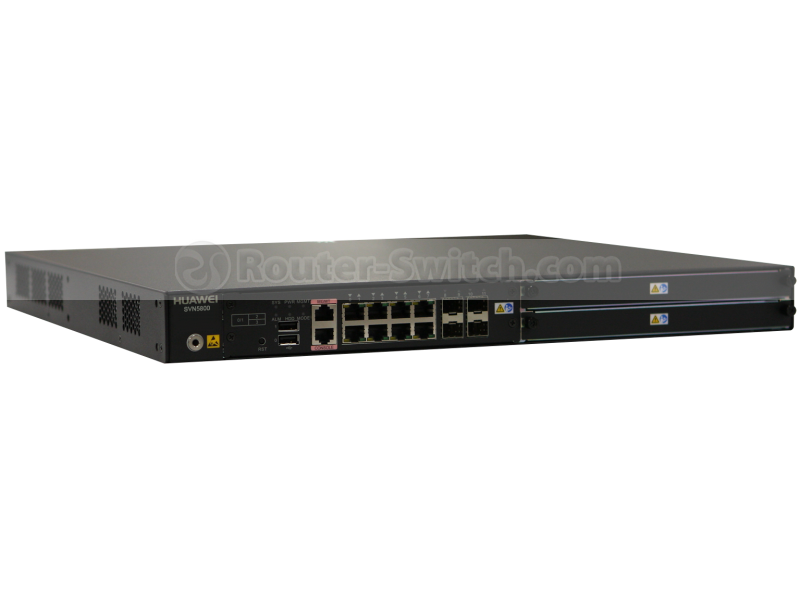

Huawei SVN5850-AC Overview

The Huawei SVN5850-AC is an enterprise-class security gateway designed for large-scale SSL VPN and IPSec VPN deployments. It supports up to 12,000 concurrent SSL VPN users and 30,000 SSL VPN connections, making it ideal for distributed enterprises across Asia, Europe, Africa, and North America. With 3 Gbit/s IPSec VPN throughput, rich VPN types, and strong user authentication, this firewall-class appliance secures remote access while integrating bandwidth management, intelligent ISP link selection, and advanced network security in a compact 1U rack-mount form factor.

Product Highlights

30,000

SSL Conns

12,000

SSL Users

3Gbit/s

IPSec VPN

Product Components Breakdown

Front Panel of the Product:

①

ESD jack

②

Management port

③

10/100/1000M autosensing Ethernet electrical port

④

WSIC(Slot 2)

⑤

WSIC(Slot 3)

⑥

4x1GE SFP

⑦

Console port

Product Applications Scenarios

Enterprise Network

The SVN5850-AC secures headquarters and branch connectivity with high SSL/IPSec capacity, enabling unified policy control and reducing ongoing WAN security operating costs by simplifying gateway consolidation.

Cloud Services

With multi-VPN support and strong authentication, it provides encrypted access to private and hybrid cloud resources, cutting remote access risks and streamlining secure onboarding of new cloud workloads.

Security & Privacy

Advanced user authentication, terminal security checks, and DDoS defenses protect sensitive data, helping organizations improve compliance posture and reduce security incident exposure across sites.

Product Features Comparison


Model	SVN5850-AC, Huawei SVN5850 Security Gateway, 8×GE RJ45/4×GE SFP/4GB Memory	USG6680-AC, Huawei USG6680 Firewall, 16GE+8SFP+4*10GE/16G RAM/2 AC Power	USG6620-BDL-AC, Huawei USG6620 Firewall, 8GE+4SFP/8GB RAM/1AC Power	ASA5555-K8, Cisco ASA 5500 Series Firewall, 8GE Data/1GE Mgmt/AC Power
Brand	Huawei	Huawei	Huawei	Cisco
Firewall Throughput	n/a	n/a	n/a	4 Gbps
VPN Performance	IPSec VPN throughput: 3 Gbit/s	VPN technologies: IPSec VPN, SSL VPN, L2TP VPN, MPLS VPN, and GRE	IPSec VPN, SSL VPN, L2TP VPN, MPLS VPN, GRE	VPN Throughput (3DES/AES): 700 Mbps
Interface Type and Count	Fixed ports: 8 × GE + 4 × SFP; Expansion slots: 2 × WSIC; Expansion card types: WSIC: 2 × 10GE (SFP+), 8 × GE (RJ45), 4 × GE (RJ45), 8 × GE (SFP), 4 × GE (RJ45, BYPASS)	Fixed Port: 4 x 10 GE + 16 GE + 8 SFP	Fixed Port: 8 GE + 4 SFP	Interfaces: 8 x 1000Base-T RJ-45, 1 x 1000Base-T (management) RJ-45, 1 x management RJ-45, 2 x USB 2.0 Type A
Concurrent Sessions	Maximum number of concurrent SSL VPN users: 12,000; Maximum number of concurrent SSL VPN connections: 30,000; Concurrent IPSec VPN connections: 4,000	n/a	n/a	Concurrent Sessions: 1,000,000
Security Features	Network security: Access control, NAT, attack defense; VPN types: SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN; Authentication control: Role-based access, external group mapping, dynamic authorization; Terminal security: terminal/host security check, cache cleaning, terminal ID binding, DDoS defense	Features: NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, anti-spam; Application Security, Intrusion Prevention, Web Security, Email Security, Data Security, Security Virtualization, Network Security	Main Security Features: NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, anti-spam; extensive IPS, web, email, and data security features	Key Features: Firewall protection, VPN support, VLAN support, High Availability; Firewall Throughput and VPN capabilities; IPS option

Optional Add-ons

Model Number	Description
02310PNT	Huawei 300GB hot-swappable hard disk drive for SVN/USG security gateways
WSIC-2X10GE-SFP+	Huawei WSIC module with 2x10GE SFP+ interfaces for SVN/USG series expansion
WSIC-8GE-RJ45	Huawei WSIC 8xGE RJ45 expansion card for increasing copper ports on security gateways

Quality Certifications

Specification

Huawei SVN5850-AC Specification

Model

SVN5850-AC

Brand

Huawei

Maximum number of concurrent SSL VPN users

12,000

Maximum number of concurrent SSL VPN connections

30,000

IPSec VPN throughput

3 Gbit/s

Concurrent IPSec VPN connections

4,000

Maximum number of virtual gateways

256

I/O

—

Fixed ports

8 × GE + 4 × SFP

Expansion slots

2 × WSIC

Expansion card types

WSIC: 2 × 10GE (SFP+), 8 × GE (RJ45), 4 × GE (RJ45), 8 × GE (SFP), 4 × GE (RJ45, BYPASS)

Form factor

1U rack-mount

Dimensions (H × W × D)

43.6mm × 442mm × 421mm

HDD

Optional, 300GB hot-swappable single hard disk

Redundant power supply

Optional

AC power supply

100 V to 240 V AC

Maximum power consumption

170W

Operating environment

Temperature: 0°C to 45°C (without hard disk) / 5°C to 40°C (with hard disk); Humidity: 10% to 90%

Storage environment

Temperature: -40°C to 70°C; Humidity: 5% to 95% (non-condensing)

SSL VPN

Web proxy, file sharing, port forwarding, network extension, multimedia tunnel; access to Web, client/server applications, and multimedia resources over IPv4 or IPv6

VPN types

SSL VPN, IPSec VPN, GRE VPN, L2TP VPN, MPLS VPN

User authentication

Local password (VPNDB), AD, RADIUS, LDAP, SecurID, X.509 digital certificate, USB key, SMS, device ID, CAPTCHA; supports hierarchical authentication, SSO, software keyboard

Authentication control

Role-based access, external group mapping, dynamic authorization based on terminal security level; fine-grained control by application, IP address, port, and URL; identification of over 6,000 application protocols

Supported operating systems

Android, Windows, macOS, iOS, Linux, Symbian, BlackBerry OS

Terminal security

Terminal/host security check, cache cleaning, terminal ID binding, DDoS attack defense at application and network layers

Virtual gateway

Multiple virtual gateways on one physical gateway with independent authentication, authorization, services, and resource management

Agile features

Bandwidth management, intelligent ISP link selection

Network security

Access control, NAT, attack defense

Network protocols

IPv4 and IPv6

Deployment and availability

Transparent, routing, and hybrid deployment modes; Active/Active and Active/Standby HA

Weight

15 kg

Get more information

Discover unbeatable prices and fast shipping for the SVN5850-AC, Huawei SVN5850 Security Gateway, 8×GE RJ45/4×GE SFP/4GB Memory . Access the detailed SVN5850-AC, Huawei SVN5850 Security Gateway, 8×GE RJ45/4×GE SFP/4GB Memory datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How does the SVN5850-AC compare with similar products?

The SVN5850-AC often surpasses similar products in terms of memory capacity and port configuration, offering better scalability for growing networks.

What should I do if the SVN5850-AC is not functioning properly?

First, check the power supply and network connections, then refer to the user manual for troubleshooting steps or contact Huawei support.

What distinguishes the SVN5850-AC from other Huawei routers?

The SVN5850-AC stands out with its combination of 8GE(RJ45) and 4GE(SFP) ports along with 4GB memory, providing a balanced mix of performance and expandability.

Why should I buy from router-switch.com?

As an authorized distributor for 20+ top brands, router-switch.com offers:
- Genuine products with full warranties.
- Competitive pricing and bulk order discounts.
- Professional pre-sales and after-sales support.

Learn More

How cost-effective is the SVN5850-AC?

The SVN5850-AC offers excellent performance and scalability at a competitive price, making it a cost-effective choice for system integrators and distributors.

What are the main features of the SVN5850-AC?

The SVN5850-AC features 8GE(RJ45), 4GE(SFP) ports, 4GB memory, and an AC power supply, providing robust connectivity and reliable performance.

In what scenarios can I use the SVN5850-AC?

The SVN5850-AC is ideal for enterprise networks requiring high-performance routing and switching capabilities in a scalable and reliable package.

How do I install the SVN5850-AC?

Installation involves mounting the device in a rack, connecting the power supply, and configuring the network settings through the web interface or CLI.

Does the SVN5850-AC need regular upgrades?

While not mandatory, regular firmware updates for the SVN5850-AC can enhance security, performance, and add new features.

Are there alternative products to the SVN5850-AC?

Alternatives include other Huawei routers like the AR series, which provide similar features and performance depending on your specific needs.

What accessories are available for the SVN5850-AC?

Available accessories include additional SFP modules, power cables, rack mounting kits, and memory upgrades.
