How cost-effective is the SG200-10FP?

The SG200-10FP offers a good balance of performance and cost, making it ideal for small to medium businesses requiring PoE support with a 62W power budget.

What are the key features of the SG200-10FP?

Key features include 10 10/100/1000 ports, 2 combo mini-GBIC ports, and PoE support on 8 ports with a 62W power budget.

What are the optimal application scenarios for the SG200-10FP?

The SG200-10FP is perfect for small business networks, IP telephony, surveillance, and wireless deployments requiring PoE support.

How do I install the SG200-10FP?

Mount the SG200-10FP on a rack or wall, connect the power, and configure the switch using the Cisco web-based interface.

Does the SG200-10FP need regular upgrades?

Firmware updates may be required for optimal performance and security; check Cisco's support page periodically for updates.

Are there alternative products to the SG200-10FP?

Alternatives include the Cisco SF200-24FP and the Cisco SG250-10P, which offer similar PoE capabilities and port configurations.

SG200-10FP

Name: SG200-10FP
SKU: SG200-10FP
Rating: 4 (1 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	SG200-10FP
Model:	SG200-10FP - Cisco Small Business 200 Series Smart Switches
Brand:	Cisco
Detail:	10 10/100/1000 ports, 2 combo mini-GBIC ports - PoE support on 8 ports with 62W power budget
	Rating: 80% 4/5.0 1 Review 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

SG200-10FP

10 10/100/1000 ports, 2 combo mini-GBIC ports - PoE support on 8 ports with 62W power budget

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

SG200-10FP Overview

Cisco 200 series switch is a series of affordable smart switch that combines powerful network performance and reliability with the essential network management features you need for a solid business network. This expandable Gigabit Ethernet switch provides basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switch. And with an easy-to-use web user interface, Cisco discovery protocol and Cisco Smartports you can deploy and configure a rock-solid business network in minutes.

Quick Specs

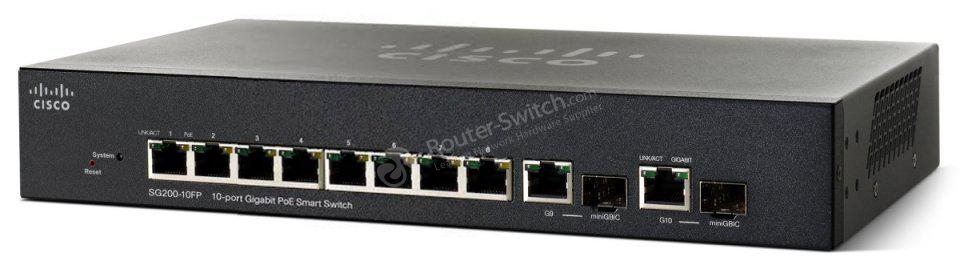

Figure 1 shows the appearance of .

Table 1 shows the Quick Specs.

Product ID	SG200-10FP
Device Type	Switch - 10 ports
Enclosure Type	Rack-mountable
Ports	8 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity : 20 Gbps : Forwarding performance (64-byte packet size) : 14.88 Mpps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
Remote Management Protocol	SNMP, RMON, HTTP, TFTP
Encryption Algorithm	MD5
Authentication Method	RADIUS
Features	Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant Standards	IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, 802.3af PoE
RAM	128 MB
Flash Memory	16 MB
Status Indicators	Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces	8 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE \| 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 \| 2 x SFP (mini-GBIC)
Power
Power Device	Power supply - internal
Voltage Required	Power adapter - external
Miscellaneous
Width	11 in
Depth	6.7 in
Height	1.5 in
Weight	8.7 lbs
Mounting Kit	2.7 lbs
MTBF	67,009 hour(s)
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localization	Chinese (simplified), English, German, French, Italian, Spanish
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - lifetime : Technical support - web support - 1 year Â¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature	32 ° F
Max Operating Temperature	104 ° F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-4 ° F
Max Storage Temperature	158 ° F
Humidity Range Storage	10 - 90% (non-condensing)

Get More Information

Do you have any question about the Cisco SG200-10FP

Quality Certifications

Specification

SG200-10FP Specification

SG200-10FP Specification
Device Type	Switch - 10 ports
Enclosure Type	Rack-mountable
Ports	8 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Performance	Switching capacity : 20 Gbps : Forwarding performance (64-byte packet size) : 14.88 Mpps
MAC Address Table Size	8000 entries
Jumbo Frame Support	Yes
Remote Management Protocol	SNMP, RMON, HTTP, TFTP
Encryption Algorithm	MD5
Authentication Method	RADIUS
Features	Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant Standards	IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, 802.3af PoE
RAM	128 MB
Flash Memory	16 MB
Status Indicators	Link activity, port transmission speed, system, PoE
Expansion and Connectivity
Interfaces	8 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE \| 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 \| 2 x SFP (mini-GBIC)
Power
Power Device	Power supply - internal
Voltage Required	Power adapter - external
Miscellaneous
Width	11 in
Depth	6.7 in
Height	1.5 in
Weight	8.7 lbs
Mounting Kit	2.7 lbs
MTBF	67,009 hour(s)
Compliant Standards	UL 60950, FCC Part 15 A, CSA 22.2
Localization	Chinese (simplified), English, German, French, Italian, Spanish
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - lifetime : Technical support - web support - 1 year Â¦ Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature	32 ° F
Max Operating Temperature	104 ° F
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-4 ° F
Max Storage Temperature	158 ° F
Humidity Range Storage	10 - 90% (non-condensing)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the SG200-10FP?

Common steps include power cycling the device, checking cable connections, and ensuring firmware is up-to-date.

What accessories are available for the SG200-10FP?

Accessories include rack-mount kits, additional power cables, and mini-GBIC modules for extended connectivity.

How does the SG200-10FP compare to other SG200 series switches?

The SG200-10FP includes PoE support and combo mini-GBIC ports, providing a cost-effective solution for SMBs needing flexible power and connectivity options.

Can the SG200-10FP handle high-bandwidth applications?

Yes, with 10 10/100/1000 ports and 2 mini-GBIC ports, it can manage high-bandwidth tasks such as video streaming and large file transfers.
