End of Life

Skip to the beginning of the images gallery

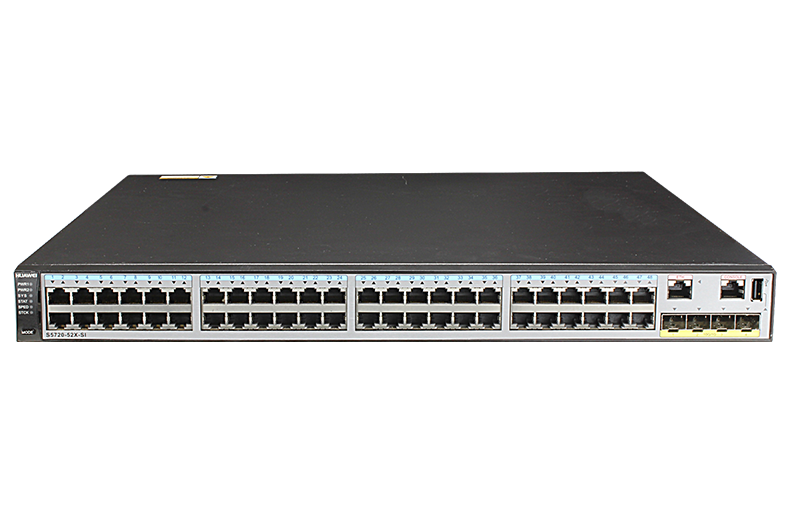

S5720-52X-SI-DC, Huawei S5720 Switch, 48xGE RJ45/4x10GE SFP+/150W DC PSU

Brand: Huawei
Model: S5720-52X-SI-DC

$1,303.05

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Replacement

S5731S-S48T4X-A

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

S5720-52X-SI-DC, Huawei S5720 Switch, 48xGE RJ45/4x10GE SFP+/150W DC PSU

100% Genuine Ready to Ship

$1,303.05

Overview

Huawei S5720-52X-SI-DC Overview

The Huawei S5720-52X-SI-DC is an enterprise switch designed for high‑density campus and aggregation networks. It delivers 336 Gbit/s switching capacity and 96Mpps forwarding performance across 48 Gigabit RJ45 access ports plus 4×10GE SFP+ uplinks, ideal for growing Asian and global deployments. Advanced ring protection, rich IP routing, multicast, and security features help distributors, SMB integrators, and end users build resilient, easy‑managed Layer 3 networks at scale.

Product Highlights

336 Gbit/s

Switch Cap

96Mpps

Fwd Rate

48+4

Port Mix

Product Applications Scenarios

Enterprise Network

High switching capacity and rich Layer 3 routing simplify campus aggregation, reducing core upgrades and cutting deployment costs by up to 25% for multi‑site enterprises.

Cloud Services

10GE uplinks and advanced multicast optimize north‑south traffic for private cloud pods, improving VM and storage access while lowering latency for hosted services.

Service Providers

Comprehensive IP routing and ring protection deliver stable Ethernet aggregation for metro and access POPs, helping operators boost availability and simplify OAM.

Product Features Comparison

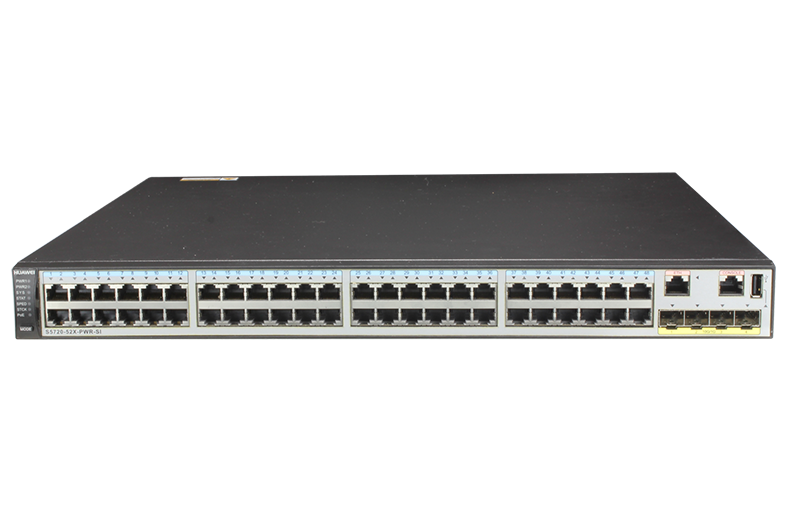

Model	S5720-52X-SI-DC	S5320-52X-PWR-SI-ACF	S5700-28P-PWR-LI-AC	S5720-50X-EI-AC
Brand	Huawei	Huawei	Huawei	Huawei
Port Configuration	48 Ethernet 10/100/1,000 ports P series: 4 Gig SFP X series: 4 x 10 Gig SFP+	n/a	24 GE POE ports, 4 GE SFP ports	n/a
Switching Capacity	336 Gbit/s	n/a	n/a	n/a
Forwarding Rate	96Mpps	n/a	Forwarding performance: 42Mpps	n/a
PoE Budget	n/a	PoE: Supported	PoE+: PoE+	n/a
Stacking Capability	iStack	Stack ports: GE electrical ports and 10GE SFP+ optical ports on the front panel	Max Number of Stacks: 48Gbps	n/a

Optional Add-ons

Model Number	Description
HW-SFP-GE-LX-SM1310	Huawei 1GE SFP LX single-mode optical module for extended uplink distance
HW-SFP-10G-SR	Huawei 10GE SFP+ SR optical transceiver for short-range fiber uplinks
HW-DC-PSU-150W	Huawei 150W DC power supply module compatible with S5720 DC models

Quality Certifications

Specification

Huawei S5720-52X-SI-DC Specification

Model

S5720-52X-SI-DC

Brand

Huawei

Switching Capacity

336 Gbit/s

Forwarding Performance

96Mpps

Fixed Ports

48 Ethernet 10/100/1,000 ports P series: 4 Gig SFP X series: 4 x 10 Gig SFP+

MAC Address Table

16K

Ring Protection

RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection

IP Routing

Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6

Multicast

PIM-DM, PIM-SM, and PIM-SSM IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics

Security

User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries MAC Forced Forwarding (MFF) Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist 802.1x authentication, MAC address authentication, and combined authentication on a per port basis Portal authentication on a per VLANIF interface basis MACSec (hardware ready)

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and client patches One-click and automatic delivery of service configurations Supports independent running client

Management and Maintenance

iStack Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow

Interoperability

VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

Get more information

Discover unbeatable prices and fast shipping for the S5720-52X-SI-DC, Huawei S5720 Switch, 48×GE RJ45/4×10GE SFP+/150W DC PSU . Access the detailed S5720-52X-SI-DC, Huawei S5720 Switch, 48×GE RJ45/4×10GE SFP+/150W DC PSU datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the S5720-52X-SI-DC?

Available accessories include additional power supplies, rack-mount kits, and SFP+ transceivers for enhanced connectivity.

How does the S5720-52X-SI-DC compare to similar products?

The S5720-52X-SI-DC stands out with its combination of high port density and the inclusion of 10 Gig SFP+ ports.

What are the power supply options for the S5720-52X-SI-DC?

The product comes with a 150W DC power supply, supporting reliable and consistent power for demanding applications.

Why should I buy from router-switch.com?

As an authorized distributor for 20+ top brands, router-switch.com offers:
- Genuine products with full warranties.
- Competitive pricing and bulk order discounts.
- Professional pre-sales and after-sales support.

Learn More

How cost-effective is the S5720-52X-SI-DC?

The S5720-52X-SI-DC offers excellent value with 48 Gigabit Ethernet ports and 4 10 Gig SFP+ ports, ideal for high-performance networks.

What are the key features of the S5720-52X-SI-DC?

It features 48 Ethernet 10/100/1000 ports and 4 10 Gig SFP+ ports, and it comes with a 150W DC power supply.

What is the typical application scenario for the S5720-52X-SI-DC?

It is best suited for enterprise networks and data centers requiring reliable and high-speed connectivity.

How do I install the S5720-52X-SI-DC?

Installation is simple with rack-mounting options. Refer to the user manual for detailed steps and safety precautions.

Does the S5720-52X-SI-DC need to be upgraded?

Regular firmware updates are recommended to ensure optimal performance and security features.

Are there alternative products to the S5720-52X-SI-DC?

Alternative options include other models from the Huawei S5720 series, which offer varying port configurations and power options.

What common troubleshooting steps are there for the S5720-52X-SI-DC?

Common steps include checking power connections, verifying cable integrity, and updating firmware.
