How cost-effective is the S2350-28TP-EI-AC?

The S2350-28TP-EI-AC offers high performance and advanced features at a competitive price, making it suitable for SMBs.

What are the key characteristics of S2350-28TP-EI-AC?

The S2350-28TP-EI-AC features 24 Ethernet 10/100 ports, 2 SFP ports, and 2 dual-purpose 10/100/1000 ports, ensuring flexible connectivity.

What are the key application scenarios for S2350-28TP-EI-AC?

The S2350-28TP-EI-AC is ideal for enterprise access networks, SMBs, and educational institutions requiring reliable network access.

How do I install the S2350-28TP-EI-AC?

The S2350-28TP-EI-AC can be rack-mounted or used in a desktop setup. Follow the provided installation guide for detailed steps.

Does S2350-28TP-EI-AC need regular upgrades?

Firmware updates are recommended to ensure optimal performance and security. Check Huawei's support for the latest updates.

Are there alternative products to S2350-28TP-EI-AC?

Alternatives include Huawei's S5720 series, offering more ports and advanced features for growing network demands.

S2350-28TP-EI-AC

Name: S2350-28TP-EI-AC
SKU: S2350-28TP-EI-AC
Price: 457 USD
Availability: OutOfStock
Rating: 4.9 (9 reviews)

Skip to the end of the images gallery

End of Life

Skip to the beginning of the images gallery

Name:	S2350-28TP-EI-AC
Model:	S2350-28TP-EI-AC Huawei S2300 Series Switch
Brand:	Huawei
Detail:	S2350-28TP-EI-AC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V,front access)
	Rating: 98% 4.9/5.0 9 Reviews 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$457.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

S2350-28TP-EI-AC

S2350-28TP-EI-AC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V,front access)

Price: US$457.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S2350-28TP-EI-AC Overview

The S2350 Series Ethernet Switches (S2350 for short) provide the access and data transport functions. They are developed by Huawei to meet the requirements for reliable access and High quality transmission of multiple services on the metropolitan area network (MAN). Huawei S2300 Series Switch S2350-28TP-EI-AC 24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V,front access, QoS, comprehensive Layer 2 Feature.

Quick Specs

Figure 1 shows the appearance of S2350-28TP-EI-AC.

Table 1 shows the Quick Specs.

Product Code	S2350-28TP-EI-AC
Ports	28
Maximum stack bandwidth (bidirectional)	10 Gbit/s
Transmission Rate	10/100/1000Mbps
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	44.3 years
Stack port	Two uplink 1000BASE-X optical ports
Noise under normal temperature (27°C, sound power)	0 (The device has no fans.)
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
Weight	≤ 5 kg

Product Details

Figure 2 shows the front panel of S2350-28TP-EI-AC.

Note:

①	Twenty-four 10/100BASE-TX electrical ports
②	Two 1000BASE-X optical ports Applicable modules and cables: ·GE optical module ·GE-CWDM optical module ·GE-DWDM optical module ·GE SFP copper module ·Stack optical module ·1 m, 10 m SFP+ copper cables ·3 m, 10 m AOC cables
③	Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) Modules applicable to combo optical ports: ·FE optical module ·GE optical module ·GE-CWDM optical module ·GE-DWDM optical module
④	One console port
⑤	AC power socket NOTE: It is used with an AC power cable.
⑥	Jack reserved for AC terminal locking latch NOTE: The AC terminal locking latch is not delivered with the switch

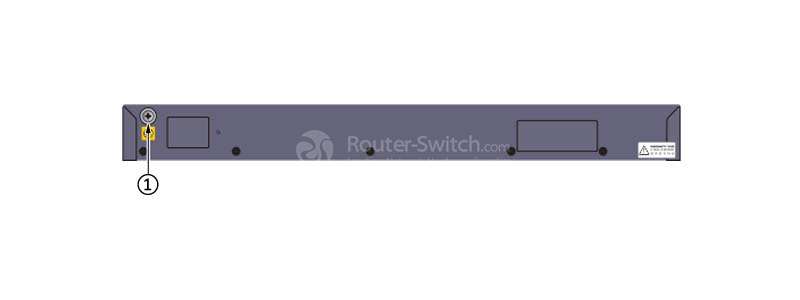

Figure 3 shows the back panel of S2350-28TP-EI-AC.

Note:

①	Ground screw NOTE: It is used with a ground cable

The Modules

Table 2 shows the recommended elements for the S2350-28TP-EI-AC.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

Compare to Similar Items

Table 3 shows the comparison of S2350-28TP-EI-AC and S2350-28TP-PWR-EI-AC.

Product Code	S2350-28TP-EI-AC	S2350-28TP-PWR-EI-AC
Ports	28	28
Maximum stack bandwidth (bidirectional)	10 Gbit/s	10 Gbit/s
Transmission Rate	10/100/1000Mbps	10/100/1000Mbps
Memory (RAM)	256 MB	256 MB
Flash	200 MB	200 MB
Mean time between failures (MTBF)	44.3 years	78.29 years
Stack port	Two uplink 1000BASE-X optical ports	Two uplink 1000BASE-X optical ports
Noise under normal temperature (27°C, sound power)	0 (The device has no fans.)	less than 52 dBA
PoE	No	Yes
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans)	15.7 W	445 W (power consumption: 75 W; PoE: 370 W)

Get more information

Do you have any question about the S2350-28TP-EI-AC?

Quality Certifications

Specification

S2350-28TP-EI-AC Specification

S2350-28TP-EI-AC Specifications
Technical Specifications
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	44.3 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode; ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
Weight	≤ 5 kg (11.02 lb)
Stack ports	Two uplink 1000Base-X optical ports
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans)	15.7 W
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5096 ft.) NOTE： When the altitude is between 1800 m (5096 ft.) and 5000 m (16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	0 (The device has no fans.)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0 m to 5000 m
Certification	·EMC certification ·Safety certification ·Manufacturing certification
Performance Specifications
Ethernet	MAC:16K VLAN:4K Maximum number of Eth-Trunks:8 Maximum number of dynamic ARP entries in the system:256
QoS	Maximum number of outbound QoS queues on an interface:8 CAR:8 Kbit/s
ACL	ACLv4: Supports a maximum of 500 inbound and outbound ACLv4 entries. ACLv6: Supports a maximum of 500 inbound and outbound ACLv6 entries.
IP unicast	IPv4 Route capacity:32 IPv6 Route capacity:16
Multicast	Number of multicast groups on the switch:1K
Reliability	RRPP: ·Maximum number of RRPP instances: 64 ·Maximum number of RRPP rings: 16 ·Maximum number of RRPP domains: 8 Smart Link: · Maximum number of instances: 64 · Maximum number of Smart Link groups: 16 MSTP: · Maximum number of MSTIs: 64 VBST: ·Number of protected VLANs: 128 SEP: ·Maximum number of segments: 16

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for S2350-28TP-EI-AC?

Restart the device, check cable connections, and ensure firmware is updated. Consult the user manual for detailed troubleshooting.

What accessories are available for S2350-28TP-EI-AC?

Accessories include power cables, mounting kits, and optional SFP modules for extended connectivity options.

How does S2350-28TP-EI-AC compare with similar products?

The S2350-28TP-EI-AC is cost-effective and feature-rich compared to similar switches, providing excellent value for small businesses.

Is technical support available for S2350-28TP-Ei-AC?

Yes, Huawei offers comprehensive technical support and resources for the S2350-28TP-EI-AC through their official support channels.
