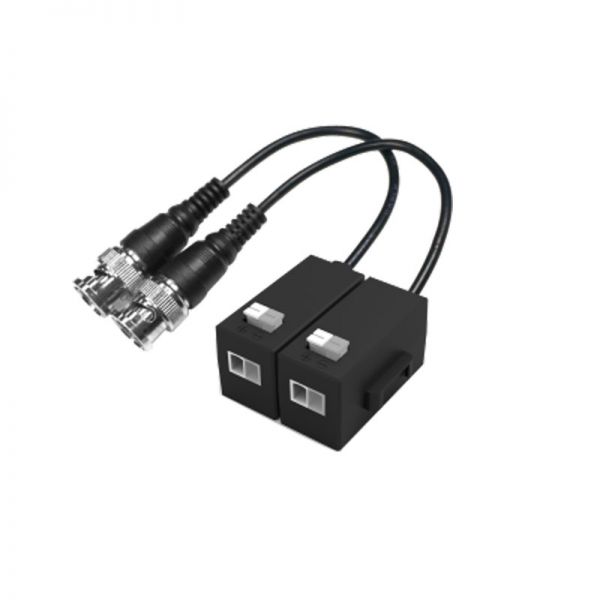

Name:	PFM800-E
Model:	PFM800-E - Dahua CVI Accessories
Brand:	Dahua
Detail:	Dahua 1 Channel Passive HDCVI Balun
	Rating: 100% 5/5.0 1 Review
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

PFM800-E

Dahua 1 Channel Passive HDCVI Balun

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

PFM800-E Overview

The Dahua PFM800-E 1 Channel Passive HDCVI Balun is a premium solution specifically designed for transmitting HD video over long distances while maintaining superior image quality. Its high-performance design supports efficient signal transmission, making it an essential accessory for a range of CCTV surveillance applications. This balun is a must-have for anyone aiming to integrate reliable and powerful video transmission capabilities into their security systems.

Quick Spec

Brand	Dahua
Model	PFM800-E
Channels	1
Transmission Distance	Up to 450m (1476.38ft)
Compatibility	HDCVI, HDTVI, AHD

Product Features

● Supports 1-channel passive transmission.
● HD video transmission over long distances without quality loss.
● Compatible with HDCVI, HDTVI, and AHD formats.
● Robust design for enhanced durability.
● No power required for operation.

Product Applications

● Ideal for long-distance video surveillance in large buildings or campuses.
● Perfect for upgrading existing analog systems to HD without changing existing cabling.
● Suitable for use in secure facilities that require high-definition video monitoring.

Supported Options

Accessory	Model
Wall mount bracket	PFM820
Surge protector	PFM890
HD coaxial cable	PFM920

Compare to Similar Items

Model	Differences
Dahua PFM801-E	Supports 2-channel transmission
Dahua PFM800	Non-passive version, requires power
Dahua PFM810-E	Extended transmission distance up to 600m

Get more information

For further information about the Dahua PFM800-E and its price, contact us through Live Chat or at sales@router-switch.com. Check Dahua PFM800-E price and PFM800-E datasheet, buy Dahua PFM800-E with the best price and fast shipping. Free Live Chat support is available.

Quality Certifications

Specification

PFM800-E Specification

PFM800-E Specifications
Brand	Dahua
Product Name	PFM800-E
Type	1 Channel Passive HDCVI Balun
Transmission Distance	Up to 400m/1300ft for 720p CVI Cameras
Input	1-Channel BNC Male
Output	1-Channel UTP
Video Format	HDCVI/HDTVI/AHD/Analog
Impedance	75 Ohms (BNC), 100 Ohms (UTP)
Surge Protection	2KV (different mode), 6KV (common mode)
Housing Material	ABS Plastic
Color	Black
Operating Temperature	-10°C~+50°C (14°F~122°F)
Storage Temperature	-30°C~+70°C (-22°F~158°F)
Operating Humidity	0~95% (Non-condensing)
Dimensions	58mm x 16mm x 20mm
Mounting	Plug and Play
Applications	CCTV Systems
Connector Type	BNC Male, UTP RJ-45
Anti-interference	Multi-layer PCB Design
Bandwidth	Up to 60MHz
Compliance	RoHS, CE, FCC
