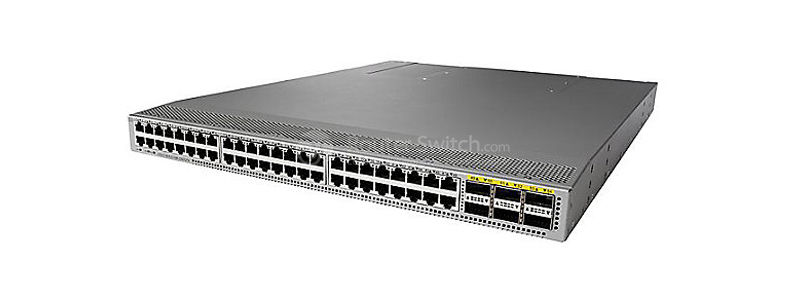

N9K-C9372TX-E, Cisco Nexus 9300 Switch, 48x10G-T/6x40G QSFP+

N9K-C9372TX-E Specification

Ports

48 fixed 1/10GBASE-T and 6 QSFP+ ports

Supported speeds

100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds

40 Gigabit Ethernet uplink port

6 fixed QSFP+ ports

Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.

The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations.

Power supplies (up to 2)

650W AC, 930W DC, or 1200W HVAC/HVDC

Typical power*(AC & DC)

374.5W

Maximum power* (AC & DC)

694W

Input voltage (AC)

100 to 240V

Input voltage (HVAC)

200 to 277V

Input voltage (DC)

-40V to -72V DC (min-max)

-48V to -60V DC (nominal)

Input voltage (HVDC)

–240 to –380V

Frequency (AC)

50 to 60 Hz

Fans

4

Physical (H x W x D)

1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm)

Acoustics

48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed

RoHS compliance

Yes

Product Specifications

Maximum number of longest prefix match (LPM) routes

128,000*

Maximum number of IP host entries

208,000*

Maximum number of MAC address entries

96,000*

Number of multicast routes

●  32,000 (without virtual PortChannel [vPC])

●  32,000 (with vPC)

Number of Interior Gateway Management Protocol (IGMP) snooping groups

●  32,000 (without vPC)

●  32,000 (with vPC)

Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch

16

Number of access control list (ACL) entries

●  4000 ingress

●  1000 egress

Maximum number of VLANs

4096

Maximum number of Virtual Routing and Forwarding (VRF) instances

1000

Maximum number of links in a PortChannel

32

Maximum number of ECMP paths

64

Maximum number of PortChannels

528

Number of active SPAN sessions

4

Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances

507

Maximum number of Hot-Standby Router Protocol (HSRP) groups

490

Maximum number of Multiple Spanning Tree (MST) instances

64

Maximum number of VXLAN tunnel endpoints (VTEP)

256

Environmental Properties

Operating temperature

32 to 104°F (0 to 40°C)

Nonoperating (storage) temperature

-40 to 158°F (-40 to 70°C)

Humidity

5 to 95% (noncondensing)

Altitude

0 to 13,123 ft (0 to 4000m)

Weight

Cisco Nexus 9372PX/9372PX-E without power supplies or fans

22.2 lb (10.1 kg)

Cisco Nexus 9372TX/9372TX-E without power supplies or fans

22.6 lb (10.25 kg)

Safety and EMC

Regulatory compliance

Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC

Safety

●  UL 60950-1 Second Edition

●  CAN/CSA-C22.2 No. 60950-1 Second Edition

●  EN 60950-1 Second Edition

●  IEC 60950-1 Second Edition

●  AS/NZS 60950-1

●  GB4943

EMC: Emissions

●  47CFR Part 15 (CFR 47) Class A

●  AS/NZS CISPR22 Class A

●  CISPR22 Class A

●  EN55022 Class A

●  ICES003 Class A

●  VCCI Class A

●  EN61000-3-2

●  EN61000-3-3

●  KN22 Class A

●  CNS13438 Class A

EMC: Immunity

●  EN55024

●  CISPR24

●  EN300386

●  KN 61000-4 series

RoHS

The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors
