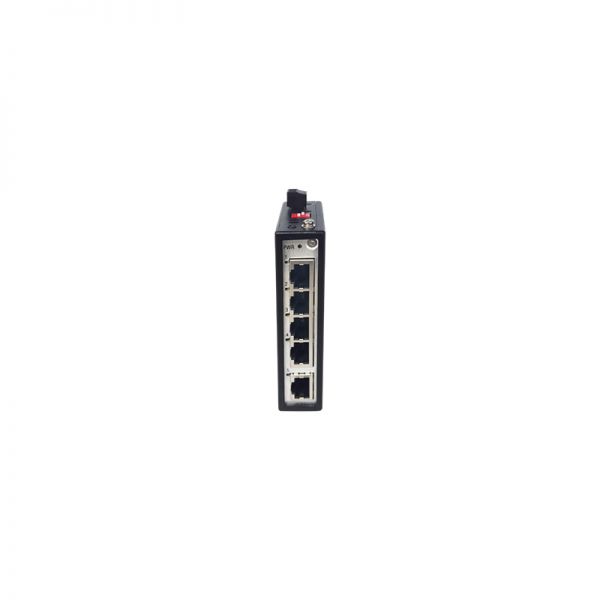

main product photo
Name:

MTX100-A5K0050

Model:MRD MTX100-A5K0050
Brand: MRD
Detail:

MTX Series 5 10/100/1000BaseT Ports

Rating:
100%
5/5.0
1 Review
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

MTX100-A5K0050

MTX Series 5 10/100/1000BaseT Ports

Overview
Specification
Reviews
Q&A
Warranty
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

MTX100-A5K0050 Overview

MTX100 5-port Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy. 5 10/100/1000BaseT Ports. IP30 Protection Class, Oper- ating Temperature from -40°C to +75°C. 12/24/48 VDC (9.6~60VDC) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).

Quick Spec

Table 1 shows the quick spec of the MTX100-A5K0050

Model MTX100-A5K0050
Interface Configuration 5 x 10/100/1000 BaseT
Input Voltage 12/24/48 VDC & 24 VAC
Fansless Yes
Backplane Bandwidth 8Gbps
Installasion DIN-rail mounting
IP Rating IP30;
Conformal Coated Optional
Dimensions (W x H x D) 24 × 100 × 61.8 mm
0.94 inch x 3.94 inch x 2.43 inch
Weight 0.23kg
0.5 lb
MTBF ≥400,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
UL/cUL61010

Product Features

● Industrial-grade Chip
● 10/100/1000 BaseT(X)(RJ45 connector)
● Compact size for easy installation
● QoS supported to process critical data in heavy traffic
● Die-casting aluminum alloy housing
● IP30 or IP40 protection class
● -40 to 75°C or –10 to 60°C(IP40) wide operating temperature range

Supported Options

Table 2 shows the supported options of the MTX100-A5K0050

MDP-IE50W-24 50W Industrial DIN-Rail Power Supply.
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 24VDC/2.08A
Operating Temperature from -40°C to +75°C with conventional cooling
Class 2 Power Supply

Compare to Similar Items

Table 3 shows the comparison to similar items of the MTX100-A5K0050

Product number Product description
EDS-G2005-EL-T 5 x GE(MOXA)

Get More Information

Do you have any questions about the MTX100-A5K0050 price?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

MTX100-A5K0050 Specification

MTX100-A5K0050 Specification
Backplane Bandwidth 8Gbps
Processing Type Store-and-Forward
MAC Table Size 4K
Packet Buffer Size 1.5 MB
Exchange Rate 1,488,000 pps/1000M ports;
Ethernet Interface Quality of Service (QoS),
Broadcast Storm Protection (BSP)
Diagnosis Mode
Redundancy
Time Synchronization
Others
Connection 1 removable 2-contact terminal block
Input Voltage 9.6~60 VDC & 18~30 VAC
Power Consumption 5W
Overload Current Protection Supported
Reverse Polarity Protection Supported
Installasion DIN-rail mounting
Housing Die-casting aluminum alloy housing
IP Rating IP40;
IP30;
Conformal Coated Optional
Dimensions (W x H x D) 24 × 100 × 61.8 mm
0.94 inch x 3.94 inch x 2.43 inch
Weight 0.23kg
0.5 lb
MTBF ≥400,000H
Storage Temperature -40 ℃ ~ 85 ℃
-40℉ ~ 185℉
Operating Temperature -40 ℃~ 75 ℃
-40℉ ~ 167℉
Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-31
Circuit Board Approved by IPC
EMI FCC Part 15 Subpart B Class A
EN 55032 Class A
EN 55035 Class A
EMS IEC(EN)61000-4-2, Class 3
IEC(EN)61000-4-3, Class 3
IEC(EN)61000-4-4, Class 3
IEC(EN)61000-4-5, Class 3
IEC(EN)61000-4-6, Class 3
IEC(EN)61000-4-8, Class 5
IEC(EN)61000-4-18, Class 3
Product Safety EN/IEC62368-1 UL/cUL61010
Hazardous Area EN55032
EN55024
EN61000-3-2
EN61000-3-3
EN61000-6-2
EN61000-6-4
FCC Part 15 Subpart B Class A

Quality Certifications

Q&A

Questions & Answers

Are there alternative products to the MTX100-A5K0050 in the industrial switch category?

While the MTX100-A5K0050 offers unique advantages with its anti-corrosion aluminum alloy construction, there are alternative industrial switches available in the market. Integrators may explore other models with similar features or different specifications to align with their specific project requirements. Comparing options can help determine the best fit for the intended application.

What are the troubleshooting steps for common issues with the MTX100-A5K0050?

In case of common issues with the MTX100-A5K0050, users can refer to the user manual for detailed troubleshooting steps. Typical problems such as connectivity issues, configuration errors, or performance issues can often be resolved through basic troubleshooting procedures. Integrators can also reach out to technical support for assistance in diagnosing and resolving any complex issues.

What accessories are available for the MTX100-A5K0050?

Various accessories complement the MTX100-A5K0050, including mounting kits, power supplies, and rack installation components. These accessories enable integrators to tailor the switch setup to meet specific installation requirements and ensure optimal performance. Additionally, accessories like SFP modules and cables are available to expand connectivity options and enhance network flexibility.

How does the MTX100-A5K0050 compare with other similar industrial switches?

In comparison to other similar industrial switches, the MTX100-A5K0050 stands out for its anti-corrosion aluminum alloy construction, offering increased durability and longevity. Its robust design makes it suitable for challenging environments where standard switches may struggle. Integrators seeking a reliable and long-lasting solution can benefit from the unique characteristics of the MTX100-A5K0050.
