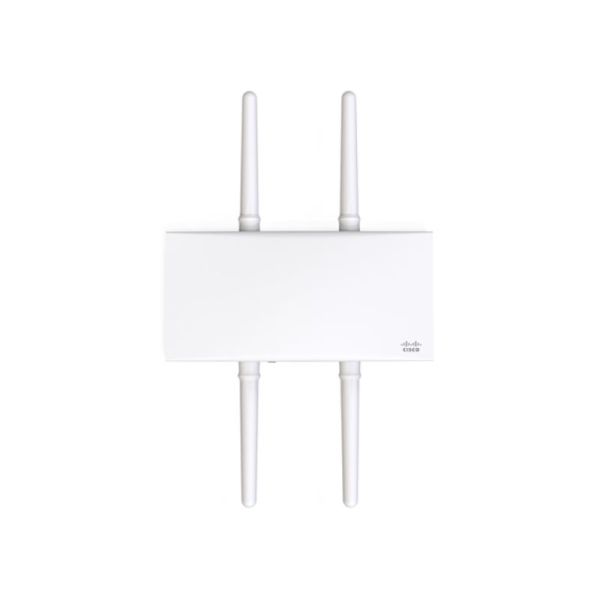

MR46, Cisco MR Series Access Point, Wi-Fi 6/Multigigabit/802.11ax

MR46 Specifications

• 2.4 GHz 802.11b/g/n/ax client access radio
• 5 GHz 802.11a/n/ac/ax client access radio
• 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support
• Concurrent operation of all four radios
• Supported frequency bands (country-specific restrictions apply):
  • 2.401 - 2.484 GHz
  • 5.150 - 5.250 GHz (UNII-1)
  • 5.250 - 5.350 GHZ (UNII-2A)
  • 5.490 - 5.730 GHz (UNII-2C)
  • 5.735 -5.825 GHz (UNII-3)

• Internal antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)

• DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**
• 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
• SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support
• Maximal ratio combining (MRC) & beamforming
• 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)

• Up to 1024-QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

• Power over Ethernet: 42.5 - 57 V (802.3at compliant)
• Alternative: 12 V DC input
• Power consumption: 30W max (802.3at required)
• Power over Ethernet injector and DC adapter sold separately

• 1x 100/1,000/2.5G BASE-T Ethernet (RJ45)
• 1x DC power connector (5.5 mm x 2.5 mm, center positive)

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable
• Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

• Two security screw options (included) (13.5 mm long, 2.5 mm diameter, 5 mm head)
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

• Operating altitude: Up to 40,000 feet (12,192 meters)
• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% to 95% non-condensing

• Mean time between failure (MTBF): 1,406,652 hrs at +25°C operating temperature

• 12.05” x 5.06” x 1.74” (30.6 cm x 12.84 cm x 4.43 cm), not including desk mount feet or mount plate
• Weight: 28.22 oz (800 g)

• Integrated layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1q) and tunneling with IPsec VPN
• PCI compliance reporting
• WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)***
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise mobility management (EMM) and Mobile device management (MDM) integration
• Cisco ISE integration for guest access and BYOD posturing

• Advanced power save (U-APSD)
• WMM access categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

• PMK, OKC, and 802.11r for fast layer 2 roaming
• Distributed or centralized layer 3 roaming

• Embedded location analytics reporting and device tracking
• Global layer 7 traffic analytics reporting per network, per device, and per application

• 1 power/booting/firmware upgrade status

• RoHS
• For additional country-specific regulatory information, please contact Meraki sales

• Indoor access point
• Lifetime hardware warranty with advanced replacement included

• MR46-HW: Meraki MR46 cloud managed 802.11ax AP
• MA-PWR-30W-XX: Meraki AC adapter for MR series (XX = US/EU/UK/AU)
• MA-INJ-4: Meraki MR 802.3at PoE Injector (Power Cord Not Included)
• MA-INJ-6: Meraki MR MultiGigabit 802.3bt Injector (Power Cord Not Included)
• Note: Meraki access point license required
