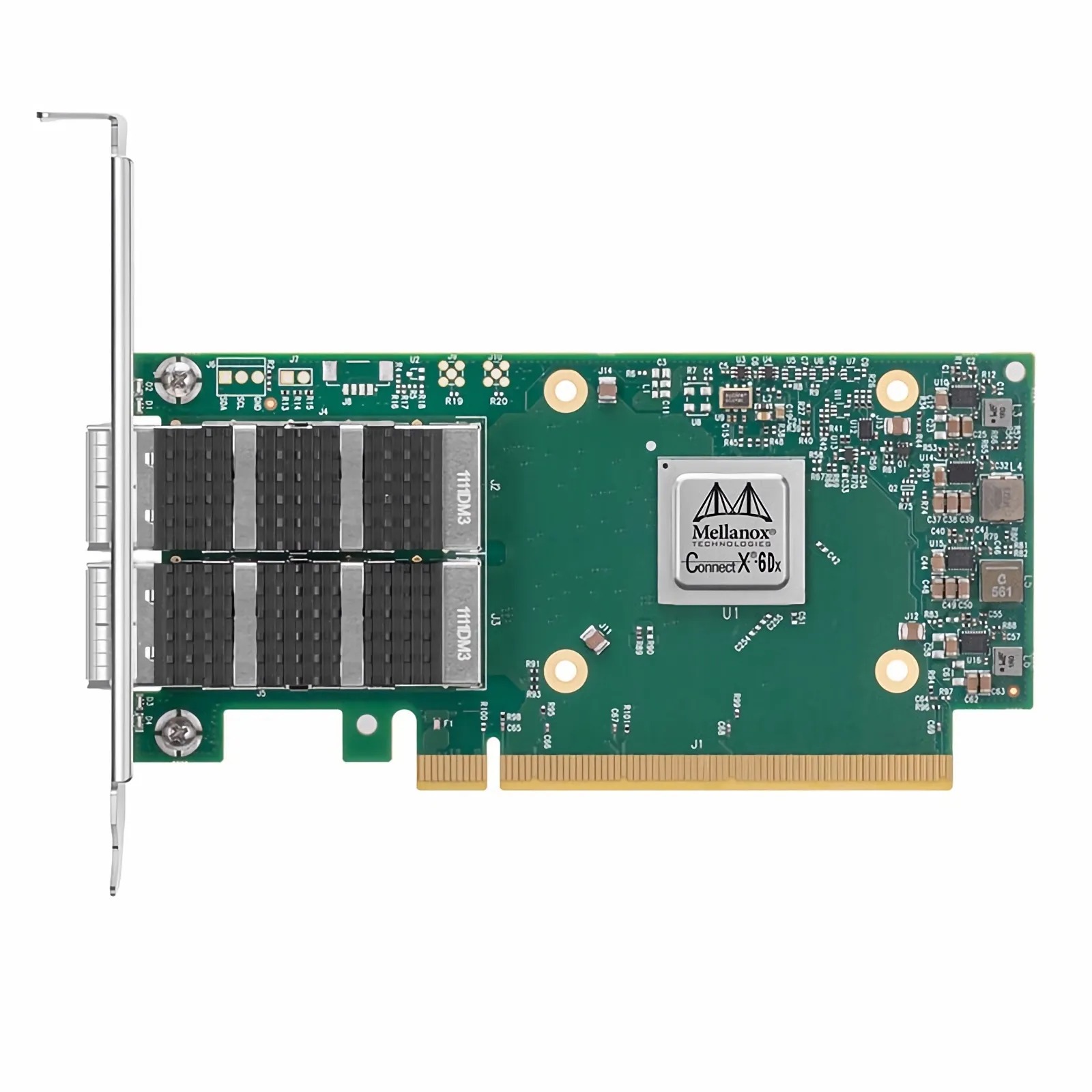

MCX623106AC-CDAT, NVIDIA Mellanox ConnectX-6 Dx Network Adapter, 100GbE/Dual QSFP56/PCIe 4.0 x16

Overview

NVIDIA Mellanox MCX623106AC-CDAT Overview

The MCX623106AC-CDAT is a 100GbE Ethernet adapter card for PCIe Gen 4.0 x16 servers. It provides two QSFP56 ports, supports Ethernet speeds from 1GbE to 100GbE, and combines hardware-accelerated security with Crypto and Secure Boot for scalable cloud and data-center connectivity.

Key Specifications

Ethernet Connectivity

1/10/25/40/50/100 GbE

Port Configuration

2 × QSFP56 Ethernet

Host Interface

PCIe Gen 4.0 x16; Gen 3.0 compatible

Security

Crypto enabled
Secure Boot enabled

Form Factor

HHHL; Tall Bracket

Board Dimensions

142.00 × 68.90 mm

Best Fit Applications

Data Center Networking

MCX623106AC-CDAT supports high-speed server connectivity through dual QSFP56 ports, PCIe Gen 4.0 x16 host bandwidth, and hardware acceleration for demanding data-center workloads.

Cloud Network Fabrics

Hardware offloads for overlay networking, SR-IOV, QoS, and Open vSwitch ASAP² help reduce host overhead in virtualized and cloud infrastructure.

RoCE and Accelerated Storage

RoCE, PeerDirect, and NVMe over Fabrics acceleration support low-latency communication and high-performance storage environments.

Why MCX623106AC-CDAT

Integrated Security Acceleration

Crypto-enabled hardware accelerates IPsec and TLS data-in-motion encryption, while Secure Boot and hardware root-of-trust features help protect adapter integrity.

Dual-Port Multi-Rate Connectivity

Two QSFP56 ports support 1/10/25/40/50/100GbE connectivity for flexible server, storage, and data-center network designs.

Hardware Offload for Cloud and Storage Workloads

RoCE, SR-IOV, overlay-network offload, Open vSwitch ASAP², and NVMe over Fabrics acceleration help reduce host CPU overhead and support demanding virtualized and storage environments.

Compare Related Models

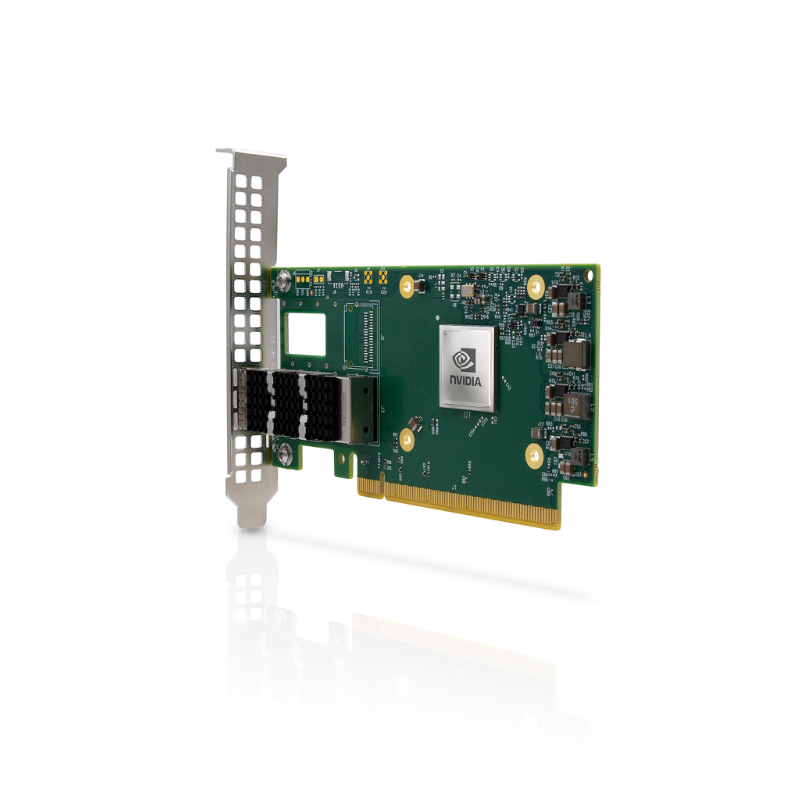

	MCX623106AC-CDAT	MCX623106AN-CDAT	MCX623106AS-CDAT	MCX623105AN-CDAT
Port Configuration	Dual-port QSFP56	Dual-port QSFP56	Dual-port QSFP56	Single-port QSFP56
Ethernet Speed	1/10/25/40/50/100 GbE	1/10/25/40/50/100 GbE	1/10/25/40/50/100 GbE	1/10/25/40/50/100 GbE
PCIe Interface	Gen 4.0 x16	Gen 4.0 x16	Gen 4.0 x16	Gen 4.0 x16
Crypto	Enabled	Disabled	Disabled	Disabled
Secure Boot	Enabled	Disabled	Enabled	Disabled
Bracket Type	Tall Bracket	Tall Bracket	Tall Bracket	Tall Bracket
Board Dimensions	142.00 × 68.90 mm	142.00 × 68.90 mm	142.00 × 68.90 mm	142.00 × 68.90 mm

Quality Certifications

Specification

NVIDIA Mellanox MCX623106AC-CDAT Specification

Brand	NVIDIA
Product Family	ConnectX-6 Dx EN
Product Type	Ethernet Adapter Card
Legacy OPN	MCX623106AC-CDAT
NVIDIA SKU	900-9X6AG-0086-ST0
Port Configuration	Dual-port QSFP56 Ethernet
Connector Support	Copper and optical
Ethernet Data Rate	1/10/25/40/50/100 Gb/s
PCIe Interface	PCIe Gen 3.0/4.0, 16 lanes, up to 16.0 GT/s
PCIe Compatibility	PCIe 2.0 and 1.1 compatible
Security	Crypto enabled; Secure Boot enabled
Form Factor	HHHL; Tall Bracket
Dimensions	142.00 × 68.90 mm
Auxiliary Voltage	3.3Aux
Maximum Current	100mA
Typical Power, PCIe Gen 3.0	18.7W
Typical Power, PCIe Gen 4.0	19.52W
Maximum Power, PCIe Gen 3.0	25.28W
Maximum Power, PCIe Gen 4.0	26.64W
Maximum QSFP56 Port Power	5W per port
Airflow, Passive Cable	550LFM at 55°C
Airflow, Active 2.5W Cable	700LFM at 55°C
Airflow Direction	Heatsink to Port
Operating Temperature	0°C to 55°C
Non-operating Temperature	-40°C to 70°C
Operating Humidity	10% to 85% relative humidity
Non-operating Humidity	10% to 90% relative humidity
Operating Altitude	3050m
Safety Compliance	CB / cTUVus / CE
EMC Compliance	CE / FCC / VCCI / ICES / RCM
RoHS	RoHS compliant
Management Interface	MCTP over SMBus or MCTP over PCIe for BMC connectivity
Network Features	RoCE, SR-IOV, VXLAN/NVGRE offload, OVS ASAP², QoS, NVMe over Fabrics acceleration
Software Ecosystem	MLNX_OFED, WinOF-2, DOCA-Host, MFT, mstflint, FlexBoot, UEFI
Supported Environments	RHEL/CentOS, Windows, FreeBSD, VMware
Shipping Weight	3.25875 kg (including packaging)
Limitation Note	For crypto-enabled cards operating at 100Gb/s or higher with substantial IPsec traffic, consult the NVIDIA release notes for possible bandwidth limitations.
