JW024A

Name: JW024A
SKU: JW024A
Price: 408 USD
Availability: OutOfStock
Rating: 4 (1 reviews)

Skip to the beginning of the images gallery

Name:	JW024A
Model:	HPE JW024A - Aruba AP Outdoor Antenna
Brand:	Aruba
Detail:	ANT-2x2-2314 2.4 GHz 14dBi 30x30deg Dual Pol MIMO High Gain Dir N-Type Outdoor Antenna
	Rating: 80% 4/5.0 1 Review 10 Questions
List Price:	US$559.00 (27% OFF)
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$408.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

JW024A

ANT-2x2-2314 2.4 GHz 14dBi 30x30deg Dual Pol MIMO High Gain Dir N-Type Outdoor Antenna

List Price: US$559.00

Price: US$408.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

JW024A Overview

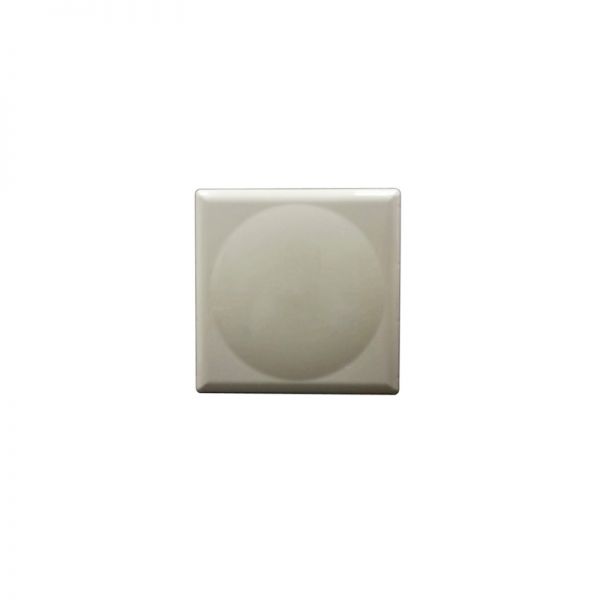

The Aruba JW024A, also known as the ANT-2x2-2314, is a high-performance outdoor antenna designed to handle demanding wireless communication needs. It operates at 2.4 GHz, offering a potent 14 dBi gain and 30x30-degree dual polarization MIMO for superior signal quality and strength. This N-Type antenna is ideal for directional applications and delivers exceptional connectivity over long distances.

Quick Spec

Frequency Range	2.4 GHz
Gain	14 dBi
Beamwidth	30x30 degrees
Connector Type	N-Type
Polarization	Dual Pol

Product Features

High gain of 14 dBi for extended coverage
Dual polarization to support MIMO functionality
Weatherproof design suitable for outdoor deployment
30x30-degree beamwidth for focused signal direction
N-Type connectors for reliable connections

Product Applications

Long-distance point-to-point wireless links
Outdoor wireless networks in harsh environments
High-density urban areas requiring precise signal targeting

Supported Options

Mounting Kit	JW021A
Lightning Arrester	JW062A
Extension Cable (10 meters)	JW051A

Compare to Similar Items

Model	Key Differences
JW025A	5 GHz, 16 dBi gain, wider beamwidth
JW020A	2.4 GHz, 10 dBi gain, omnidirectional
JW026A	2.4 GHz, 12 dBi gain, larger form factor

Get more information

Check Aruba JW024A price and JW024A datasheet, buy Aruba JW024A with the best price and fast shipping. Free Live Chat is supported. For further information regarding the Aruba JW024A, please contact us through Live Chat or email us at sales@router-switch.com.

Quality Certifications

Specification

JW024A Specification

JW024A Specifications
Brand	Aruba
Model	JW024A
Product Name	ANT-2x2-2314
Frequency	2.4 GHz
Gain	14 dBi
Beamwidth (Horizontal)	30 degrees
Beamwidth (Vertical)	30 degrees
Polarization	Dual Pol
MIMO	2x2
Connector Type	N-Type
Usage	Outdoor
Antenna Type	Directional
Operating Temperature	-40??C to 70??C
Dimensions	330 mm x 330 mm
Wind Survival	Up to 130 mph
Impedance	50 Ohms
Max Power Input	10 watts
Front to Back Ratio	25 dB
VSWR	1.5:1
Mounting	Pole

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps are there for the JW024A ANT-2x2-2314 antenna?

Ensure all connections are secure, check for physical obstructions, verify the access point configuration, and consult the manual for signal strength adjustments if needed.

What accessories are available for the JW024A ANT-2x2-2314 antenna?

The JW024A includes a mounting kit for installation. Additional accessories like extension cables and lightning arrestors can be purchased separately for enhanced installation flexibility.

How does the JW024A ANT-2x2-2314 compare with similar products?

Compared to similar products, the JW024A offers a balanced combination of high gain and narrow beamwidth, providing better signal stability and focused coverage in dense outdoor environments.

Can the JW024A ANT-2x2-2314 antenna be used with any Aruba access points?

Yes, the JW024A is compatible with a wide range of Aruba access points, ensuring seamless integration and enhanced wireless performance for outdoor applications.

Learn More

Is the JW024A ANT-2x2-2314 antenna cost-effective for outdoor use?

Yes, the JW024A offers a high gain of 14dBi in a compact form, providing robust performance at a competitive price, making it a cost-effective solution for outdoor wireless projects.

What are the key features of the JW024A ANT-2x2-2314 antenna?

The JW024A features dual polarization, MIMO technology, 2.4 GHz frequency, 14 dBi gain, and a 30x30 degree coverage area, ensuring reliable and high-performance outdoor connectivity.

What application scenarios is the JW024A ANT-2x2-2314 best suited for?

The JW024A is ideal for outdoor environments requiring concentrated, high-gain wireless signals such as point-to-point backhaul connections, high-density urban areas, and expansive outdoor facilities.

How do I install the JW024A ANT-2x2-2314 outdoor antenna?

The JW024A comes with a mounting kit that includes all necessary hardware and a user manual with step-by-step instructions for easy installation on poles or walls.

Does the JW024A ANT-2x2-2314 need frequent firmware upgrades?

No, the JW024A antenna does not require firmware upgrades. However, it is recommended to keep the connected access point's firmware updated for optimal performance.

Are there alternative products to the JW024A ANT-2x2-2314 antenna?

Yes, alternatives include other high-gain outdoor antennas such as the Aruba ANT-4x4-5614, but the specific choice depends on your coverage and performance requirements.
