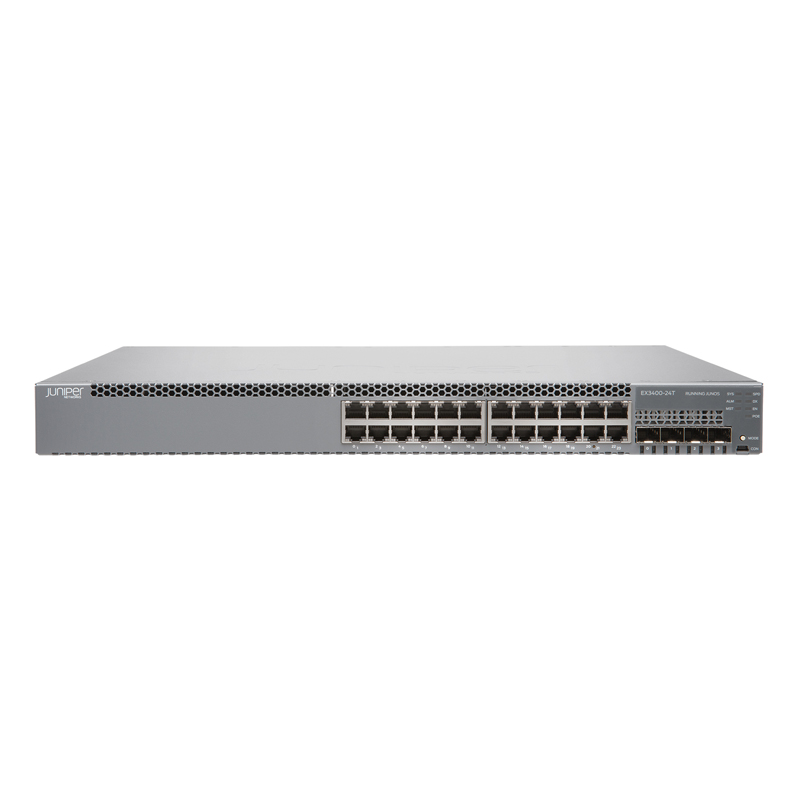

EX3400-24T-DC, Juniper 24-Port 1G DC Switch with 4 x 1/10G SFP/SFP+ and 2 x 40G QSFP+ Uplinks

Name: EX3400-24T-DC, Juniper 24-Port 1G DC Switch with 4 x 1/10G SFP/SFP+ and 2 x 40G QSFP+ Uplinks
SKU: EX3400-24T-DC
Price: 1194 USD
Availability: InStock
Rating: 4.7 (19 reviews)

Brand: Juniper
Model: EX3400-24T-DC
In Stock
- United States
- United Kingdom
- Germany
- United Arab Emirates
- Singapore
- India
- Hong Kong

Rating:

93%

4.7/5.0

19 Reviews

21 Questions

List Price: $5,393.00

78% OFF

$1,194.00

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

EX3400-24T-DC, Juniper 24-Port 1G DC Switch with 4 x 1/10G SFP/SFP+ and 2 x 40G QSFP+ Uplinks

100% Genuine Ready to Ship

$5,393.00

78% OFF

$1,194.00

Overview

Juniper EX3400-24T-DC Overview

The Juniper EX3400-24T-DC is a fixed 1U Ethernet access switch designed for Junos OS deployments that require DC power. It provides 24 10/100/1000BASE-T ports, four SFP/SFP+ uplink ports, two 40GbE QSFP+ ports, front-to-back airflow, and a 150W DC power supply.

Key Specifications

Access Ports

24 × 10/100/1000BASE-T

Uplink Interfaces

4 × SFP/SFP+ and 2 × 40GbE QSFP+

DC Power

150W JPSU-150-DC-AFO

Switching Capacity

288 Gbps bidirectional

L2/L3 Throughput

214 Mpps

Virtual Chassis

Up to 10 EX3400 switches

Figure 1. EX3400-24T-DC Front Panel

Juniper EX3400-24T-DC front panel

Front panel with 24 Gigabit Ethernet ports, status LEDs, a Mini-USB console port, and four SFP/SFP+ uplink ports.

1	RJ-45 ports
2	Chassis status LEDs
3	Port status mode LEDs. The PoE LED is not present on EX3400-24T-DC.
4	Factory Reset/Mode button
5	Mini-USB console port
6	SFP/SFP+ uplink ports

Figure 2. EX3400-24T-DC Rear Panel with DC Power Supply

Juniper EX3400-24T-DC rear panel with DC power supply

Rear panel with management and console ports, two 40GbE QSFP+ uplink ports, fan modules, and a DC power supply.

1	USB port
2	Management Ethernet port
3	RJ-45 console port
4	Protective earthing terminal
5	QSFP+ uplink ports
6	ESD point
7	Fan modules
8	CLEI code label
9	Serial Number ID label
10	DC power supply
11	Empty power supply slot covered by a blank panel

Best Fit Applications

DC-Powered Campus Access

Juniper positions the EX3400 as an access-layer switch for campus fabric deployments. With 24 Gigabit Ethernet ports, four SFP/SFP+ uplinks, two 40GbE QSFP+ ports, and a 150W DC power supply, EX3400-24T-DC fits access cabinets that use DC power and require higher-speed uplink options.

Non-PoE Wiring Closet Access

EX3400-24T-DC provides 24 10/100/1000BASE-T access ports without PoE, making it suitable for wired endpoints that have their own power source. Its SFP/SFP+ and QSFP+ interfaces provide uplink capacity for distribution or aggregation connections.

Virtual Chassis Access and Distribution

The EX3400 platform supports up to 10 EX3400 switches in one Virtual Chassis. The two QSFP+ ports are configured as Virtual Chassis ports by default, while SFP+ uplink ports can also be configured as VCPs when the required transceivers and configuration conditions are met.

Why EX3400-24T-DC

Native DC Power Configuration

The model uses a 150W DC power supply, making it a direct hardware choice for network environments built around -48 to -60VDC power systems.

High-Speed Uplink Flexibility

The combination of SFP/SFP+ ports and 40GbE QSFP+ ports provides an upgrade path from Gigabit access connectivity to 10GbE and 40GbE switch interconnection or upstream aggregation.

Virtual Chassis Expansion

Up to 10 EX3400 switches can operate as one logical device through Virtual Chassis, simplifying management and enabling multi-switch expansion within the same platform family.

Field-Replaceable Power and Cooling

The EX3400 supports hot-removable and hot-insertable power supplies and fan modules. EX3400-24T-DC uses front-to-back airflow and EX3400-FAN-AFO fan modules.

Compare Related Models

	EX3400-24T-DC	EX3400-24T	EX3400-24P	EX3400-48T
Port Configuration	24 × 10/100/1000BASE-T	24 × 10/100/1000BASE-T	24 × 10/100/1000BASE-T	48 × 10/100/1000BASE-T
Uplink Configuration	4 × SFP/SFP+; 2 × 40GbE QSFP+	4 × SFP/SFP+; 2 × 40GbE QSFP+	4 × SFP/SFP+; 2 × 40GbE QSFP+	4 × SFP/SFP+; 2 × 40GbE QSFP+
PoE	No PoE	No PoE	24 PoE+ ports	No PoE
Switching Capacity	144/288 Gbps	144/288 Gbps	144/288 Gbps	168/336 Gbps
L2/L3 Throughput	214 Mpps	214 Mpps	214 Mpps	250 Mpps
Power Supply	150W DC	150W AC	600W AC	150W AC
Airflow	Front-to-back	Front-to-back	Front-to-back	Front-to-back
Recommended Use	DC-powered 24-port access and aggregation	AC-powered 24-port access	24-port access for PoE+ endpoints	Higher-density non-PoE access
Not Ideal For	PoE endpoint deployment	DC-powered sites	DC-only power systems or non-PoE deployments	DC-powered sites or 24-port requirements

Connectivity Options

Type	Part Number	Description
Front Uplink Interfaces	4 × SFP/SFP+	Supports 1GbE SFP, 10GbE SFP+, or a combination of both. Optical modules are ordered separately.

Type	Part Number	Description
40GbE Uplinks	2 × QSFP+	Configured as Virtual Chassis ports by default. They can also be configured as network ports for upstream aggregation.

Type	Part Number	Description
SFP+ DAC Cables	EX-SFP-10GE-DAC-1M	10GbE SFP+ passive direct attach copper cable, 1 m.
	EX-SFP-10GE-DAC-3M	10GbE SFP+ passive direct attach copper cable, 3 m.
	EX-SFP-10GE-DAC-5M	10GbE SFP+ passive direct attach copper cable, 5 m.
	EX-SFP-10GE-DAC-7M	10GbE SFP+ passive direct attach copper cable, 7 m.

Type	Part Number	Description
Power Supplies	JPSU-150-DC-AFO	150W DC power supply with front-to-back airflow. Supports hot insertion and removal.

Type	Part Number	Description
Fan Modules	EX3400-FAN-AFO	Front-to-back airflow fan module for EX3400 switches.

Type	Part Number	Description
Virtual Chassis Interconnection	QSFP+ or SFP+ VCP	Up to 10 EX3400 switches can operate as one logical device. SFP transceivers cannot be used to form a Virtual Chassis.

Type	Part Number	Description
Upstream Router or Aggregation Connection	SFP, SFP+, or QSFP+	Use 1GbE SFP, 10GbE SFP+, or 40GbE QSFP+ interfaces according to the upstream device, transceiver, cable, and distance requirements.

Compatibility Check

Access Ports	24 × 10/100/1000BASE-T RJ-45 ports. PoE is not available on the EX3400-24T-DC network ports.
SFP/SFP+ Uplinks	Four uplink ports support 1GbE SFP, 10GbE SFP+, or a combination of both.
QSFP+ Uplinks	Two 40GbE QSFP+ ports are available for Virtual Chassis or network uplink operation.
Virtual Chassis	Supports up to 10 EX3400 switches. QSFP+ ports are configured as VCPs by default; SFP+ ports can also be configured as VCPs.
VCP Transceivers	SFP+ or QSFP+ transceivers are required for Virtual Chassis interconnection. SFP transceivers cannot form a Virtual Chassis.
DC Power	Uses JPSU-150-DC-AFO, with -48 through -60VDC input and 150W output. A compatible power cord must be confirmed separately.
Airflow	The switch uses front-to-back airflow. Power supply and fan module airflow should match the chassis airflow direction.
Optics and Cables	Use Juniper-qualified optical transceivers and DAC cables. Exact optic compatibility should be checked in the Juniper Hardware Compatibility Tool before ordering.

Quality Certifications

Specification

Juniper EX3400-24T-DC Specification

Product Information
Brand	Juniper
Model	EX3400-24T-DC
Product Family	EX3400 Ethernet Switch
Operating System	Junos OS
Chassis Type	Fixed
Form Factor	1U
First Junos OS Release	15.1X53-D51
Ports and Connectivity
RJ-45 Port Count	24
RJ-45 Port Type	10/100/1000BASE-T Gigabit Ethernet
PoE Support	No PoE support on the RJ-45 network ports
SFP/SFP+ Uplink Port Count	4
SFP/SFP+ Uplink Support	1GbE SFP, 10GbE SFP+, or a combination
QSFP+ Uplink Port Count	2
QSFP+ Uplink Speed	40GbE
Management Port	1 x RJ-45
Console Port	1 x RJ-45
Console Port 2	1 x Mini-USB Type B
USB Port	1 x Type A
Virtual Chassis Port Type	QSFP+
Maximum Virtual Chassis Members	10 EX3400 switches
Performance
Packet Switching Capacity, Unidirectional	144 Gbps at 64-byte packets
Packet Switching Capacity, Bidirectional	288 Gbps at 64-byte packets
L2/L3 Throughput	214 Mpps at 64-byte packets
MAC Addresses per System	32,000
IPv4 Unicast Host Routes	36,000
IPv4 Unicast Route Prefixes	14,000
IPv4 Multicast Routes	4,000
IPv6 Unicast Host Routes	18,000
IPv6 Unicast Route Prefixes	3,500
IPv6 Multicast Routes	2,000
IPv6 Neighbor Discovery Entries	8,000
ARP Entries	16,000
VLAN IDs Supported	4,096
VLAN ID Range	1–4094
Jumbo Frames	9216 bytes
QoS Hardware Queues per Port	12
Link Aggregation Groups	128
Maximum Ports per LAG	16
MACsec	Supported
Power and Cooling
Power Supply Type	DC
Power Supply Model	JPSU-150-DC-AFO
Power Supply Rating	150W
Minimum Power Supplies Installed	1
Maximum Power Supplies Installed	2
DC Input Voltage	-48 through -60 VDC
DC Input Current Rating	4.7 A maximum at -48 VDC
Power Supply Weight	1.43 lb / 0.65 kg
Fan Module Model	EX3400-FAN-AFO
Fan Module Count	2
Fan Module Replacement	Hot-removable and hot-insertable
Airflow Direction	Front-to-back
Physical and Environmental
Chassis Height	1.72 in / 4.37 cm
Chassis Width	17.4 in / 44.1 cm
Chassis Depth, Without Power Supply	13.78 in / 35 cm
Chassis Depth, With Power Supply Installed	15.05 in / 38.24 cm
Chassis Weight, Without Power Supply or Fan Modules	9.76 lb / 4.43 kg
Packaging Weight	12.78 kg
CPU	Dual Core 1 GHz
DRAM	2 GB
Flash	2 GB
Operating Temperature	0° through 45° C / 32° through 113° F
Storage Temperature	-40° through 70° C / -40° through 158° F
Operating Altitude	Up to 10,000 ft / 3048 m
Non-Operating Altitude	Up to 16,000 ft / 4877 m
Operating Humidity	10% through 85%, noncondensing
Non-Operating Humidity	0% through 95%, noncondensing
Seismic Tolerance	Zone 4
Acoustic Noise Level	36 dB
Maintenance Clearance	30 in / 76.2 cm

Still unsure about your config? Talk to an engineer →

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Does the EX3400-24T-DC support Power over Ethernet (PoE)?

No, the Juniper EX3400-24T-DC switch does not support Power over Ethernet (PoE) capabilities.

How can Juniper switches contribute to optimizing ICT product delivery?

Juniper switches offer reliable and high-performance networking, leading to improved ICT product delivery, particularly in terms of speed and reliability.

Which keyword is associated with Juniper's software-defined networking (SDN) solutions?

The keyword "Juniper SDN switches" is relevant when discussing Juniper's switches compatible with SDN architectures.

Learn More

Are the products sold on router-switch.com authentic?

Does the EX3400-24T-DC support Power over Ethernet (PoE)?

No, the Juniper EX3400-24T-DC switch does not support Power over Ethernet (PoE) capabilities.

How can Juniper switches contribute to optimizing ICT product delivery?

Juniper switches offer reliable and high-performance networking, leading to improved ICT product delivery, particularly in terms of speed and reliability.

Which keyword is associated with Juniper's software-defined networking (SDN) solutions?

The keyword "Juniper SDN switches" is relevant when discussing Juniper's switches compatible with SDN architectures.

What are some key factors to consider when selecting Juniper switches for specific applications?

The keyword "Juniper switch selection criteria" can be used to explore factors such as port density, power consumption, performance, and supported features when choosing Juniper switches for specific applications.

How do Juniper switches ensure low latency and high throughput?

Juniper switches incorporate features like cut-through switching and low-latency ASICs to minimize latency and achieve high throughput in data transmission.

How can businesses benefit from Juniper switches in terms of SEO?

Businesses can improve their SEO performance by ensuring that their websites and online services are delivered efficiently with the help of a robust network infrastructure, including Juniper switches.

How do Juniper switches optimize network performance?

Juniper switches employ technologies like Virtual Chassis and Virtual Chassis Fabric to optimize network performance, ensuring high availability and rapid data transfer.

What are some popular models of Juniper switches?

Examples of popular Juniper switches include the Juniper EX Series (e.g., EX2200, EX3300, EX4200) and the Juniper QFX Series (e.g., QFX5100, QFX5200).

How do Juniper switches contribute to network security?

Juniper switches offer advanced security features such as Access Control Lists (ACLs) and VLAN segmentation, helping to enhance network security and mitigate potential threats.

What are Juniper switches?

Juniper switches are network devices used to connect multiple devices within a Local Area Network (LAN) or Wide Area Network (WAN) environment. They facilitate the efficient transfer of data between connected devices.

What is the maximum stacking bandwidth of the EX3400 24T DC?

The maximum stacking bandwidth of the EX3400 24T DC depends on the configuration.

Can the EX3400 24T DC be stacked with other EX3400 switches?

Yes, the EX3400 24T DC can be stacked with other EX3400 switches.

What is the maximum number of VLANs that the EX3400 24T DC supports?

The maximum number of VLANs that the EX3400 24T DC supports depends on the configuration.

Does the EX3400 24T DC support VLANs?

Yes, the EX3400 24T DC supports VLANs.

Can the EX3400 24T DC be managed through a web interface?

Yes, the EX3400 24T DC can be managed through a web interface.

What is the maximum power consumption of the EX3400 24T DC?

The maximum power consumption of the EX3400 24T DC depends on the configuration.

Does the EX3400 24T DC support PoE?

No, the EX3400 24T DC does not support PoE.

What type of Ethernet ports does the EX3400 24T DC have?

The EX3400 24T DC has 10/100/1000BASE-T Ethernet ports.

How many ports does the EX3400 24T DC have?

The EX3400 24T DC has 24 ports.

What is the form factor of the EX3400 24T DC?

The EX3400 24T DC has a 1U form factor.

Warranty

Your Trusted Global ICT Partner
Delivering reliable, cross-border fulfillment with 20+ years of expertise, backed by rigorous QC, fast logistics, and worldwide warehousing.
Global warehousing
10+ hubs positioned for fast international dispatch and stable availability.
Seamless cross-border
QC-verified packing and predictable delivery via FedEx, DHL, UPS.
ICT Tools Hub for Confident Monitoring
Stay informed on product lifecycle status and real-time inventory availability—supporting confident planning, sourcing, and operational execution.
EOL/EOSL Checker
Verify product lifecycle status to plan purchases and avoid EOL/EOSL risks.
Request VIP Inventory Portal Access
Connect via live chat for VIP access to real-time inventory on priority SKUs.
Certified Experts Across Leading Vendors
Professional guidance for network, security & data center builds, delivered by certified experts with extensive, hands-on deployment experience.
Multi-vendor engineering
Certified expertise across Cisco, HPE, Aruba, Dell, Juniper, Huawei and Fortinet.
Deployment-ready guidance
Faster, safer rollouts with project-focused engineering guidance.

The Choice of 21,500 +Global Customers

Industry-Leading Warranty Coverage You Can Trust

100% Low Price Guarantee
Router-switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
100% Quality Assurance
All items are brand new, original, and factory-sealed.
Upon request, each unit can be fully tested and verified by a Juniper-certified engineer to ensure perfect working condition before shipment.
100% Money-Back Guarantee
If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly.
Visit Return Policy page for more information.
Free Juniper Technical Support
Our Juniper-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
Flexible & Secure Payment and Shipping
We support multiple secure payment and logistics options, backed by industry-leading verification:
Pay by wire transfer.

Pay with your paypal.

Pay with your Visa credit card.

Pay with your Mastercard credit card.

Pay with your Discover Card.

Pay by American Express.
More
Trusted & Secure Payments ×
100% Trusted, Secure Purchase at Router-switch.com
120+ Local Currencies

Multiple Payment Options

100% Secure Payments
Choose the payment method that works for you—local options, multiple currencies, or bank transfers. Every payment is protected by SSL encryption, PCI DSS-level security, McAfee Secure, and VeriSign Secured for complete peace of mind.

Guaranteed Safe Checkout

View Payment Options
Visit How to Pay page for more information

Warranty Coverage & RMA Instructions

Extended, Worry-Free Warranty Coverage
- Factory New Sealed Enterprise Hardware: 3 Years
- Factory New Sealed Consumer Devices: 1 Year
Visit Warranty Policy page for more information
How to Get Support
If you encounter issues with products, please reach out to your dedicated sales representative. They will assist with diagnostics, remote troubleshooting, and RMA processing if necessary.
Visit Contact Us page for more support options.
