Name:	ISR4431-AXV/K9
Model:	ISR4431-AXV/K9 - Cisco Router 4000 Series
Brand:	Cisco
Detail:	Cisco ISR 4431 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25
	Rating: 100% 5/5.0 4 Reviews 10 Questions 131/mo Sold
List Price:	US$32,069.00 (47% OFF)
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$16,879.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

ISR4431-AXV/K9

Cisco ISR 4431 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25

List Price: US$32,069.00

Price: US$16,879.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

ISR4431-AXV/K9 Overview

Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router. The Cisco ISR4431-AXV/K9 is the 4431 Application Experience with Voice (AXV) Bundle.

Quick Spec

Figure 1 shows the appearance of ISR4431-AXV/K9.

Table 1 shows the quick spec.

Product Number	ISR4431-AXV/K9
Product Description	Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25
Aggregate Throughput	500Mbps to 1Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default flash memory	8 GB
Maximum flash memory	32 GB

Product Details

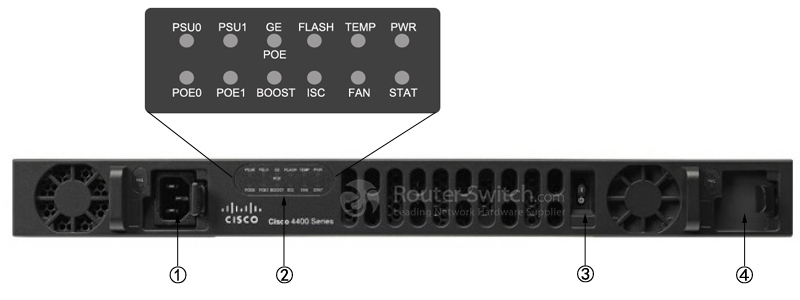

Figure 2 shows the LEDs on the front panel of the Cisco ISR4431/K9 for reference. ISR4431-AXV/K9 is similar with it.

Note:

①	Power supply unit	③	Router power On/Off switch
②	LEDs	④	Optional power supply unit

·LEDs include 12 indicators.

Table 2 shows the LED descriptions.

LEDs	Represents	Color	Description
PSU	Power Supply Unit (P0 and P1) Status	Green	PSU is on and is providing power.
		Amber	PSU is on but with errors or in a failure condition.
		Off	Power supply is turned off.
GE POE	Internal PoE Daughter Card Status	Green	PSU is installed and providing power
		Amber	PSU is installed but in a failure condition.
		Off	PSU is off.
FLASH	System Flash Status	Blinking Green	Compact flash/eUSB flash is present and currently being accessed.
TEMP	Temperature Status	Solid green	All temperature sensors in the system are within acceptable range.
		Amber	One or more temperature sensors in the system are outside the acceptable range.
		Off	Temperature is not being monitored.
PWR	System Power	Green	System power is on and functioning correctly.
		Green blinking	System power is in the process of shutting down.
		Amber	System power is up, but low level initialization failed.
		Amber blinking	System power is up, but the system failed to come out of reset.
		Off	System power is off.
POE BOOST	Power Over Ethernet Boost Mode	Green	Two PoE power supplies are installed and operating in boost mode.
POE BOOST	Power Over Ethernet Boost Mode	Off	This can mean one of the following: ·No PoE PSU installed. ·One PoE PSU installed. ·Two PoE PSUs installed and operating in redundant mode.
ISC	ISC Slot Status	Green	PVDM4 is present and enabled.
		Amber	Initialized with error.
		Off	Not present.
FAN	Fan Status	Green	All fans are operating.
		Amber	One fan has stopped working.
		Blinking Amber	Two or more fans have stopped working, or the fan tray has been removed.
		Off	Fans are not being monitored.
STAT	System Status	Solid green	System operating normally.
		Blinking amber	BIOS/Rommon is booting.
		Amber	BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.
		Off	System is not out of reset or BIOS image is not loadable.

Figure 3 shows the back panel of Cisco ISR4431/K9 for reference. ISR4431-AXV/K9 is similar with it.

Note:

①	GE management port	⑤	Console port
②	Auxiliary port	⑥	GE Ports
③	USB Type A port	⑦	NIM Slots
④	USB Type B mini port

·The NIMs support 2 single-wide or 1 double-wide.

·The GE Ports include 4 RJ45 ports and 4 SFP ports.

The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and several cables.

Items	Models	Descriptions
Console and Auxillary Cables	CAB-AUX-RJ45	Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
	CAB-ETH-S-RJ45	Cisco Router Cable CAB-ETH-S-RJ45
	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Licenses	L-SL-44-APP-K9=	Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
	NIM-8MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 4 shows the comparison between ISR4431-AXV/K9 and ISR4321-AXV/K9.

Product Number	ISR4431-AXV/K9	ISR4321-AXV/K9
Product Description	Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25	Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses.
Aggregate Throughput	500Mbps to 1Gbps	50 Mbps to 100 Mbps
Total onboard WAN or LAN 10/100/1000 ports	4	2
RJ-45-based ports	4	2
SFP-based ports	4	1
NIM slots	3	2
Onboard ISC slot	1	1

Get more information

Do you have any question about the ISR4431-AXV/K9

Quality Certifications

Specification

ISR4431-AXV/K9 Specification

ISR4431-AX/K9 Specification
Product Number	ISR4431-AXV/K9
Product Description	Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25
Aggregate Throughput	500Mbps to 1Gbps
Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	4
Enhanced service-module slots	0
Doublewide service-module slots	0
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	NA
Default memory DDR3 ECC DRAM (data plane)	2 GB
Maximum memory DDR3 ECC DRAM (data plane)	2 GB
Default memory DDR3 ECC DRAM (control/services plane)	4 GB
Maximum memory DDR3 ECC DRAM (control/services plane)	16 GB
Default flash memory	8 GB
Maximum flash memory	32 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC, and PoE
Redundant power supply	Internal: AC, DC, and PoE
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	3 to 1.3A
AC input surge current	60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts)	65
Maximum power with AC power supply (watts)	250 (no PoE)
Maximum power with PoE power supply (platform only) (watts)	500 with PoE redundant
Maximum endpoint PoE power available from PoE power supply (watts)	250 W with optional redundancy

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the ISR4431-AXV/K9?

Common troubleshooting for the ISR4431-AXV/K9 involves checking cable connections, verifying configuration settings, and updating firmware to resolve performance issues.

What accessories are available for the ISR4431-AXV/K9?

Accessories for the ISR4431-AXV/K9 include additional interface cards, power supply units, and mounting kits for flexible deployment options.

How does the ISR4431-AXV/K9 compare to similar products?

Compared to similar products, the ISR4431-AXV/K9 offers superior integrated security and communication capabilities, making it a preferred choice for enterprise branches.

What are the product features of the ISR4431-AXV/K9?

The ISR4431-AXV/K9 features a PVDM4-64 module, integrated security and UC licenses, high-performance routing, and is ideal for enterprise-level applications.

Learn More

How cost-effective is the ISR4431-AXV/K9 router?

The ISR4431-AXV/K9 offers a comprehensive feature set including APP.SEC.UC and CUBE-25 licensing, making it a cost-effective choice for enterprises seeking robust security and unified communication capabilities.

What are the main characteristics of the ISR4431-AXV/K9?

The ISR4431-AXV/K9 features PVDM4-64, integrated security (APP.SEC.UC) and Unified Communications (CUBE-25) licenses, and high-performance routing capabilities suited for enterprise needs.

What are the application scenarios for the ISR4431-AXV/K9?

The ISR4431-AXV/K9 is ideal for enterprise branches requiring secure, high-speed connectivity, unified communications, and application optimization.

How do you install the ISR4431-AXV/K9 router?

To install the ISR4431-AXV/K9, mount the router on a standard rack, connect the LAN and WAN interfaces, and configure the security and communication features using Cisco's IOS-XE software.

Does the ISR4431-AXV/K9 router need upgrades?

The ISR4431-AXV/K9 may require periodic firmware updates to maintain optimal performance and security compliance.

Are there alternative products to the ISR4431-AXV/K9?

Alternatives to the ISR4431-AXV/K9 include the ISR4321 and ISR4351 models, depending on the specific performance and capacity needs of the enterprise.

What are common troubleshooting steps for the ISR4431-AXV/K9?

Common troubleshooting for the ISR4431-AXV/K9 involves checking cable connections, verifying configuration settings, and updating firmware to resolve performance issues.

What accessories are available for the ISR4431-AXV/K9?

Accessories for the ISR4431-AXV/K9 include additional interface cards, power supply units, and mounting kits for flexible deployment options.

How does the ISR4431-AXV/K9 compare to similar products?

Compared to similar products, the ISR4431-AXV/K9 offers superior integrated security and communication capabilities, making it a preferred choice for enterprise branches.

What are the product features of the ISR4431-AXV/K9?

The ISR4431-AXV/K9 features a PVDM4-64 module, integrated security and UC licenses, high-performance routing, and is ideal for enterprise-level applications.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Resources Downloads

Support and Resources

Transition Guide

Model Datasheet

ISR4431-AXV/K9 Datasheet

ISR4431-AXV/K9

You may also be interested in the following product(s)

ISR4431-AXV/K9

ISR4431-AXV/K9 Overview

Quick Spec

Product Details

The Modules, Cards, Licenses & Accessories

Compare to Similar Items

Get more information

Quality Certifications

ISR4431-AXV/K9 Specification

ISR4431-AX/K9 Specification

Quality Certifications

Questions & Answers

What are common troubleshooting steps for the ISR4431-AXV/K9?

What accessories are available for the ISR4431-AXV/K9?

How does the ISR4431-AXV/K9 compare to similar products?

What are the product features of the ISR4431-AXV/K9?

How cost-effective is the ISR4431-AXV/K9 router?

What are the main characteristics of the ISR4431-AXV/K9?

What are the application scenarios for the ISR4431-AXV/K9?

How do you install the ISR4431-AXV/K9 router?

Does the ISR4431-AXV/K9 router need upgrades?

Are there alternative products to the ISR4431-AXV/K9?

What are common troubleshooting steps for the ISR4431-AXV/K9?

What accessories are available for the ISR4431-AXV/K9?

How does the ISR4431-AXV/K9 compare to similar products?

What are the product features of the ISR4431-AXV/K9?

Standard Services

Warranty

Resources Downloads

Product Tags
