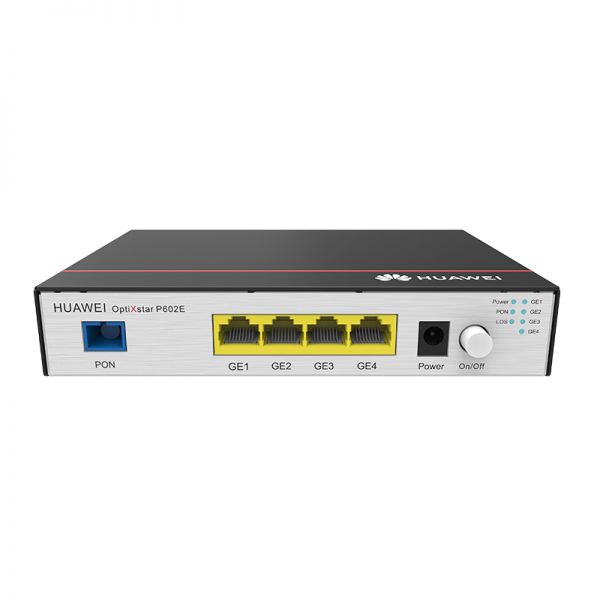

Huawei OptiXstar P602E

Huawei OptiXstar P602E Specification

NNI

GPON

UNI

4*GE

Dimensions (W x D x H)

160mm x 110mm x 30mm (Without floor mat)

Operating temperature

-40°C to +55°C

Operating humidity

5%RH to 95%RH (non-condensing)

Power adapter input

100V to 240V AC, 50/60Hz

System power supply

11V to 14V (typical 12 V), 1A

Static power consumption

3.5 W

Maximum power consumption

5 W

Surge protection specifications

GE: common mode 6 kV; differential mode 1.5 kV.

AC power: common mode 6kV; differential mode 6 kV

Installation mode

Support outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.

Port Parameters

PON

· Port type: SC/UPC

· Complying with ITU-T G.984.2, Class B+

· Receiver sensitivity: -27dBm;

· Overload optical power: -8dBm;

· Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s

· Type B single-homing

· Type B dual-homing (supported in Layer 2 forwarding)

GE

· Port type: RJ-45

· Auto ports speed (10/100/1000 Mbit/s)

· Auto-MDI/MDIX

· Configuration of the number of MAC addresses learned

· VLAN transparent transmission/VLAN filtering

Function List

Automatic Service Provisioning

· Authentication exemption

· XML/OMCI/TR069

Multicast

· IGMP v2/v3 snooping

· Dynamic controllable multicast

· IGMP proxy

· MLDv1/MLDv2 snooping

Smart O&M

· XML/Web UI

· Rogue ONT detection and self-regulation

· Ring network detection/PPPoE/DHCP simulation testing

QoS

· Ethernet port rate limitation

· 802.1p priority

· SP/WRR/SP+WRR

Layer 3 Features

· Default/Static/Policy/Service routes

· VLAN binding

· ALG/UPnP/ARP

· DDNS/DMZ/DNS/NAPT

· PPPoE/Static IP/DHCP

· Port mapping/Port trigger

· IPv6

Layer 2 Management

· DHCP Option82

· PITP

· BPDU transparent transmission

· LLDP/LLDP-MED

Security

· 802.1x

· IPv6/IPv4 firewalls

· Filtering based on MAC/IP/URL

· DoS/ARP anti-attacks

· Static MAC address binding

· Device access control

· Web session number restriction
