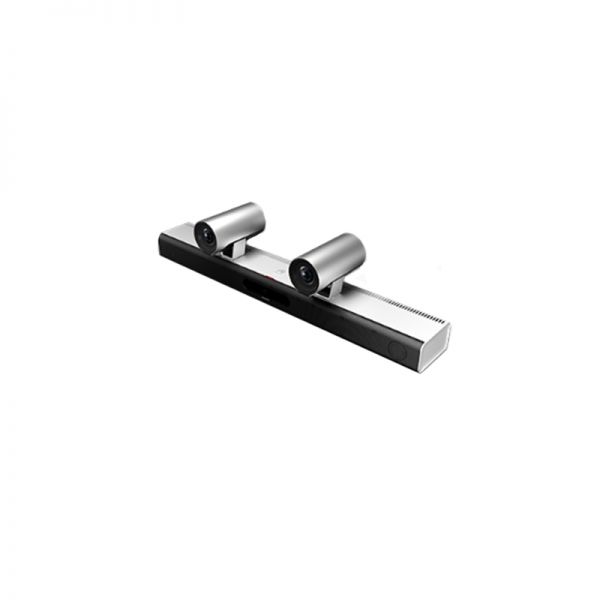

Huawei Cloudlink Bar 500 Specification

Components

HD codec, dual HD Camera, microphone array, speaker, touch panel, bracket,

cables, and power supply

Standards & Protocols

Multimedia Frame Protocols

ITU-T H.323, IETF SIP

Video Encoding and Decoding Protocols

H.265, H.264 HP, H.264 BP, H.264 SVC

Audio Encoding and Decoding Protocols

G.711A、G.711U、G.722、G.729A、AAC-LD、OPUS

Dual-Stream Protocols

ITU-T H.239、BFCP

OtherCommunication Protocol

H.225,H.235, H.241, H.245, H.281, H.350, H.460, RFC2833, LDAP, LDAPS

Network Transmission Protocols

TCP/IP、RTP、RTCP、DHCP、DNS、SMTP、SNMP、

SNTP、Telnet、SSH、HTTP、HTTPS、TR-069

Standards & Protocols

Video Resolution

• H.265:

1080p @ 60 fps, minimum bandwidth required 768 kbit/s

1080p @ 30 fps, minimum bandwidth required 384 kbit/s

720p @ 60 fps, minimum bandwidth required 512 kbit/s

720p @ 30 fps, minimum bandwidth required 256 kbit/s

• H.264:

1080p @ 60 fps, minimum bandwidth required 1Mbit/s

1080p @ 30 fps, minimum bandwidth required 512 kbit/s

720p @ 60 fps, minimum bandwidth required 768 kbit/s

720p @ 30 fps, minimum bandwidth required 384 kbit/s

Presentation Resolution

Inputs

• HDMI: 3840 x 2160 @ 25/30 fps; 3,200 x 1,800 @ 30 fps; 2,880 x 1,800 @ 30 fps;

2,880 x 1,620 @ 50 fps; 2,560 x 1,600 @ 60 fps; 2,048 x 1,536 @ 60 fps

1,920 x 1,200 @ 60 fps; 1,680 x 1,050 @ 60 fps;1,600 x 1,200 @ 60 fps;

1,600 x 900 @ 60 fps; 1,440 x 900 @ 60 fps; 1,400 x 1,050 @ 60 fps; 1,366 x 768 @

60 fps; 1,360 x 768 @ 60 fps; 1,280 x 1,024 @ 60/75/85 fps; 1,280 x 960 @ 60 fps;

1,280 x 768 @ 60/75/85 fps; 1,280 x 800 @ 60 fps; 1,024 x 768 @ 60/70/75/85 fps;

800 x 600 @ 56/60/72/75/85 fps; 720 x 400 @ 85 fps; and 640 x 480 @ 60/72/75/85 fps

• VGA: 640 x 480 @ 60/72/75/85 fps; 720 x 400 @ 85 fps; 800 x 600 @

56/60/72/75/85 fps; 1,024 x 768 @ 60/70/75/85 fps; 1,152 x 864 @ 75 fps;

1,280 x 768 @ 60/75/85 fps; 1,280 x 800 @ 60 fps; 1,280 x 960 @ 60 fps;

1,280 x 1,024 @ 60/75/85 fps; 1,360 x 768 @ 60 fps; 1,366 x 768 @ 60 fps;

1,440 x 900 @ 60 fps; 1,400 x 1,050 @ 60 fps; 1,440 x 576i @ 60 fps;

1,440 x 480i @ 60 fps; 720 @ 480p60; 720 x 576p50; 720p50/60;

1080p24/25/30/50/60; 1,600 x 900 @ 60 fps; 1,600 x 1,200 @ 60 fps;

1,680 x 1,050 @ 60 fps; and 1,920 x 1,200 @ 60 fps

• Codec resolution: 800 x 600; 1,024 x 768; 1,280 x 1,024;1,280 x 720;

1,920 x 1,080; and 3,860x 2,160

• Outputs: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080,

and 3,840 x 2,160

Dual-Stream

1080p @ 60 fps + 1080p @ 60 fps (4K @ 15 fps)

1080p @ 30 fps + 1080p @ 30 fps (4K @ 8 fps)

Data: 1080P @ 30fps / 4K @ 8 fps

Other Video Features

Supports display of PIP, POP modes

VME (Video Motion Enhancement)

Video Intensifier

View Processing

Audio Features

Audio Features

Acoustic Echo Cancellation (AEC),

Automatic Noise Suppression(ANS),

Automatic Gain Control (AGC), VoiceClear,

AudioEnhancer, and Lip synchronization

Optional

Function Models

VPM220 micphone, AirPresence Key

Bandwidth

IP

64Kbps～8Mbps

Ports

Audio Input Port

12 x built-in MIC array

1 x 3.5mm

1 x HD-AI

1 x HDMI (audio)

Audio Output Port

Built-in speaker

2 x HDMI (audio)

1 x 3.5mm

Video Input Port

Built-in dual-camera (1080P, 5 x optical zoom)

1 x HDMI (4K @ 30 fps)

1 x VGA (1080p @ 60 fps)

Video Output Port

1 x HDMI (4K @ 60 fps)

1 x HDMI (4K @ 30 fps)

Other ports

1 x 10/100/1,000 Base-T

1 x RJ45

1 x POE network interface (Touch)

1 x USB 2.0 Type-A

1 x USB 2.0 Type-B

2.4G/5G dual-band Wi-Fi

Conference Features

Languages

Simplified Chinese, English, French, German, Japanese, Spanish, Portuguese, Traditional Chinese, and Russian

Features

• Intelligent voice assistant in Chinese and English

• Wireless access by Wi-Fi

• AirPresence/AirPresence Key

• Built-in collaboration capability

• SiteCall (HD dual-stream)

• Web-based conference management

• Web-based image monitoring and HD picture snapshot

• 16:9 and 4:3 mixed display

• Picture-in-picture: 1/16 picture size, optional position

• API for integration

Stability and Security

Network Adaptability

• IPV4 and IPV6; IP precedence, DiffServ; URI call

• Super Error Concealment (SEC), Automatic Repeat-reQuest (ARQ), Video Forward Error Correction (FEC), Intelligent Rate Control (IRC),

and Video Backward Error Correction (BEC)

Security Management

• H.235 signaling and media stream encryption

• Conference access password, conference control password and administrator password

• Dual-stream encryption

Firewall Traversal

H.460 traversal between private and public networks/static NAT/ STG

Maintenance Management

Maintenance Methods

• Endpoints Network Management: SNMP

• Embedded Web server, GUI interface

• Command line mode: Telnet/SSH

• Touch panel

Maintenance Functions

• Endpoint IP and number are displayed on the front panel

• Automatic sleep, wake-up

• Event log record, query and export

• IP network test

• Default settings restoration

• Embedded local loopback: Local self-loop

• Embedded audio and video testing

Physical Characteristics

Size

Terminal size: 812 mm x 186 mm x 163 mm

Package size: 965 mm x 380 mm x 275 mm

Net weight: 6kg

Gross weight: 13.1kg

Environmental Requirements

• Temperature: 0℃ to 40℃ (operating status),

-40℃ to 70℃ (non-operating status)

• Relative Humidity: 5% to 95% (operating status), 0% to 95% (non-operating status)

• Surrounding noise: less than 46 dBA SPL

• Minimum light: 7 lux

• Recommended light: above 200 lux

Electrical Features

Operating voltage: 100V to 240V AC

Operation frequency: 50 Hz to 60 Hz

Maximum power consumption: 180W

Certifications

CCC, CE (RoHS, REACH, WEEE, UL, FCC, VCCI, RCM, Network access license of MIIT, and Radio Type Approval Certification
