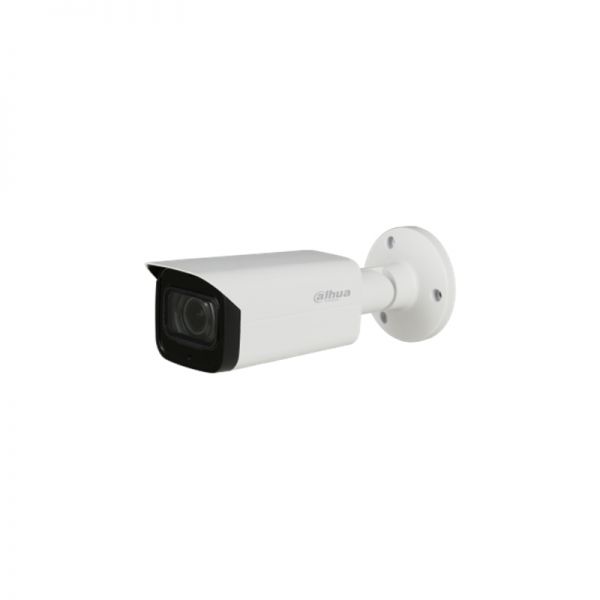

Name:	HAC-HFW2601T-Z-A-DP
Model:	HAC-HFW2601T-Z-A-DP - Dahua 6MP CVI
Brand:	Dahua
Detail:	6MP WDR HDCVI IR Bullet Camera
	Rating: 100% 5/5.0 1 Review
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$91.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

HAC-HFW2601T-Z-A-DP

6MP WDR HDCVI IR Bullet Camera

Price: US$91.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

HAC-HFW2601T-Z-A-DP Overview

HAC-HFW2601T-Z-A-DP, Dahua 6MP WDR HDCVI IR Bullet Camera,120dB True WDR, 3DNR; Max. 6MP resolution; HD/SD switchable; Audio in interface, built-in mic; 2.7-13.5mm motorized lens; Max. IR length 80m, Smart IR.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	HAC-HFW2601T-Z-A-DP
Image Sensor	1/2.9" CMOS
Effective Pixels	2880(H)x1920(V), 6MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.01Lux/F1.3, 30IRE, 0Lux IR on
Focal Length	2.7-13.5mm
Max Aperture	F1.3
Angle of View	H: 88��~24��
Focus Control	Auto / Manual
Close Focus Distance	300mm 11.8''
Casing	Aluminium
Dimensions	244.1mmx 90.4mmx 90.4mm (9.61"x 3.56"x 3.56")

Product Details

TheHAC-HFW2601T-Z-A-DP provides these features:

*120dB True WDR, 3DNR

* Max. 6MP resolution

* HD/SD switchable

* Audio in interface, built-in mic

* 2.7-13.5mm motorized lens

* Max. IR length 80m, Smart IR

* IP67, AC24V/DC12V��30%

Compare to Similar Items

Table 2shows the comparison.

Product Code	HAC-HFW2501T-Z-A	HAC-HFW2501T-Z-A-DP	HAC-HFW2601T-Z-A	HAC-HFW2601T-Z-A-DP
Image Sensor	1/2.8" CMOS	1/2.8" CMOS	1/2.9" CMOS	1/2.9" CMOS
Effective Pixels	2592(H)x1944(V), 5MP	2592(H)x1944(V), 5MP	2880(H)x1920(V), 6MP	2880(H)x1920(V), 6MP
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.005Lux/F1.3, 30IRE, 0Lux IR on	0.005Lux/F1.3, 30IRE, 0Lux IR on	0.01Lux/F1.3, 30IRE, 0Lux IR on	0.01Lux/F1.3, 30IRE, 0Lux IR on
Angle of View	H: 102��~29��	H: 102��~29��	H: 88��~24��	H: 88��~24��
Close Focus Distance	200mm 7.87"	200mm 7.87"	300mm 11.8''	300mm 11.8''
Resolution	5MP (2592x1944)	5MP (2592x1944)	6MP (2880x1920)	6MP (2880x1920)
Frame Rate	20fps@5MP, 25/30fps@4MP, 25/30fps@1080P	20fps@5MP, 25/30fps@4MP, 25/30fps@1080P	20fps@6MP, 25/30fps@4MP	20fps@6MP, 25/30fps@4MP
Power Supply	12V DC ��30%	AC 24V��30% / DC 12V��30%	12V DC ��30%	AC 24V��30% / DC 12V��30%
Power Consumption	Max. 12.4W (12V DC, IR on)	Max 17.2W (12V DC, IR on)	Max 12W (12V DC, IR on)	Max 15W (12V DC, IR on)

GetMoreInformation

Do you have anyquestionabouttheHAC-HFW2601T-Z-A-DP

Quality Certifications

Specification

HAC-HFW2601T-Z-A-DP Specification

HAC-HFW2601T-Z-A-DP Specification
Camera
Image Sensor	1/2.9" CMOS
Effective Pixels	2880(H)x1920(V), 6MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.01Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 80m (262feet)
IR On/Off Control	Auto/ Manual
IR LEDs	4
Lens
Lens Type	Motorized lens / Fixed iris
Mount Type	Board-in
Focal Length	2.7-13.5mm
Max Aperture	F1.3
Angle of View	H: 88°~24°
Focus Control	Auto / Manual
Close Focus Distance	300mm 11.8''
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
	DORI Definition	Distance
		Wide	Tele
Detect	25px/m (8px/ft)	79m(259ft)	274m(899ft)
Observe	63px/m (19px/ft)	32m(105ft)	110m(361ft)
Recognize	125px/m (38px/ft)	16m(52ft)	55m(180ft)
Identify	250px/m (76px/ft)	8m(26ft)	27m(89ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution	6MP (2880x1920)
Frame Rate	20fps@6MP, 25/30fps@4MP
Video Output	1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / WDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D / 3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface	1ch in & Built-in Mic
Electrical
Power Supply	AC 24V±30% / DC 12V±30%
Power Consumption	Max 15W (12V DC, IR on)
Environmental
Operating Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)
Storage Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Aluminium
Dimensions	244.1mm x 90.4mm x 90.4mm (9.61" x 3.56" x 3.56")
