Name:	HAC-HFW2249T-I8-A-LED
Model:	HAC-HFW2249T-I8-A-LED - Dahua 2MP CVI
Brand:	Dahua

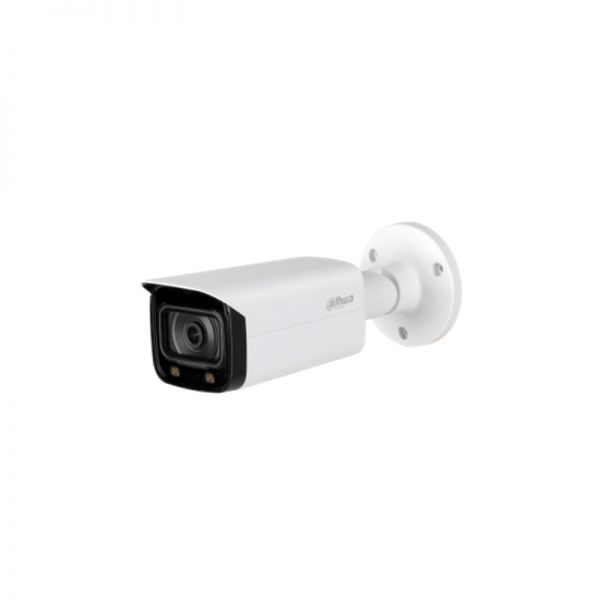

Detail:	2MP Full-color Starlight HDCVI Bullet Camera
	Rating: 100% 5/5.0 1 Review
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$63.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

HAC-HFW2249T-I8-A-LED

2MP Full-color Starlight HDCVI Bullet Camera

Price: US$63.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

HAC-HFW2249T-I8-A-LED Overview

HAC-HFW2249T-I8-A-LED, Dahua 2MP Full-color Starlight HDCVI Bullet Camera, Full-color starlight; 120dB true WDR, 3DNR; 40m(131ft) LED distance; Max. 30fps@1080P; HD/SD output switchable.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	HAC-HFW2249T-I8-A-LED
Image Sensor	1/2.8" CMOS
Effective Pixels	1920(H)x1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.001Lux/F1.0, 0Lux LED on
Focal Length	3.6mm (6mm Optional)
Max Aperture	F1.0
Angle of View	H: 89.5�� (53.8��); V: 47.3�� (30��)
Focus Control	N/A
Close Focus Distance	1600mm (3500mm) 63'' (138")
Casing	Aluminium
Dimensions	244.1mmx 90.4mmx90.4mm (9.61"x 3.56"x 3.56")

Product Details

TheHAC-HFW2249T-I8-A-LED provides these features:

*Full-color starlight

* 120dB true WDR, 3DNR

* 40m(131ft) LED distance

* Max. 30fps@1080P

* HD/SD output switchable

* Audio in interface, built-in mic

* 3.6mm fixed lens (6mm optional)

* IP67, DC12V��30%

Compare to Similar Items

Table 2shows the comparison.

Product Code	HAC-HFW2249E-A-LED	HAC-HFW2249T-I8-A-LED
Image Sensor	1/2.8" CMOS	1/2.8" CMOS
Effective Pixels	1920(H)x1080(V), 2MP	1920(H)x1080(V), 2MP
Scanning System	Progressive	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.001Lux/F1.0, 0Lux LED on	0.001Lux/F1.0, 0Lux LED on
S/N Ratio	More than 65dB	More than 65dB
IR Distance	40m(131ft)	40m(131ft)
IR LEDs	2	2
Focal Length	3.6mm ( 6mm Optional)	3.6mm (6mm Optional)
Max Aperture	F1.0	F1.0
Angle of View	H: 89.5�� (53.8��); V: 47.3�� (30��)	H: 89.5�� (53.8��); V: 47.3�� (30��)
Focus Control	N/A	N/A
Close Focus Distance	1600mm (3500mm) 63'' (138")	1600mm (3500mm) 63'' (138")
Audio Interface	1ch in & Built-in Mic	1ch in & Built-in Mic
Power Supply	12V DC ��30%	12V DC ��30%
Power Consumption	Max. 6.6W (12V DC, LED on)	Max. 6.6W (12V DC, LED on)
Casing	Aluminium	Aluminium
Dimensions	179.8mmx 70mmx 70mm (7.08"x 2.76"x 2.76")	244.1mmx 90.4mmx90.4mm (9.61"x 3.56"x 3.56")

GetMoreInformation

Do you have anyquestionabouttheHAC-HFW2249T-I8-A-LED

Quality Certifications

Specification

HAC-HFW2249T-I8-A-LED Specification

HAC-HFW2249T-I8-A-LED Specification
Camera
Image Sensor	1/2.8" CMOS
Effective Pixels	1920(H)x1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s
Minimum Illumination	0.001Lux/F1.0, 0Lux LED on
S/N Ratio	More than 65dB
IR Distance	40m(131ft)
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm (6mm Optional)
Max Aperture	F1.0
Angle of View	H: 89.5° (53.8°); V: 47.3° (30°)
Focus Control	N/A
Close Focus Distance	1600mm (3500mm) 63'' (138")
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
	DORI Definition	Distance
Detect	25px/m (8px/ft)	3.6mm: 53m(174ft) 6mm: 83m(272ft)
Observe	63px/m (19px/ft)	3.6mm:21m(69ft) 6mm: 33m(108ft)
Recognize	125px/m (38px/ft)	3.6mm: 11m(36ft) 6mm: 17m(56ft)
Identify	250px/m (76px/ft)	3.6mm: 5m(16ft) 6mm: 8m(26ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video
Resolution	1080P (1920x1080)
Frame Rate	25/30fps@1080P, 25/30/50/60fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night	Color
OSD Menu	Multi-language
BLC Mode	BLC / HLC / WDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D/3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface	1ch in & Built-in Mic
Electrical
Power Supply	12V DC ±30%
Power Consumption	Max. 6.6W (12V DC, LED on)
Environmental
Operating Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Aluminium
Dimensions	244.1mm x 90.4mm x90.4mm (9.61" x 3.56" x 3.56")
