H83MMA5821A2, Huawei H83MMA Series Remote Optical Access Equipment, 10G GPON uplink/16FE/AC Power

100% Genuine Ready to Ship

Overview

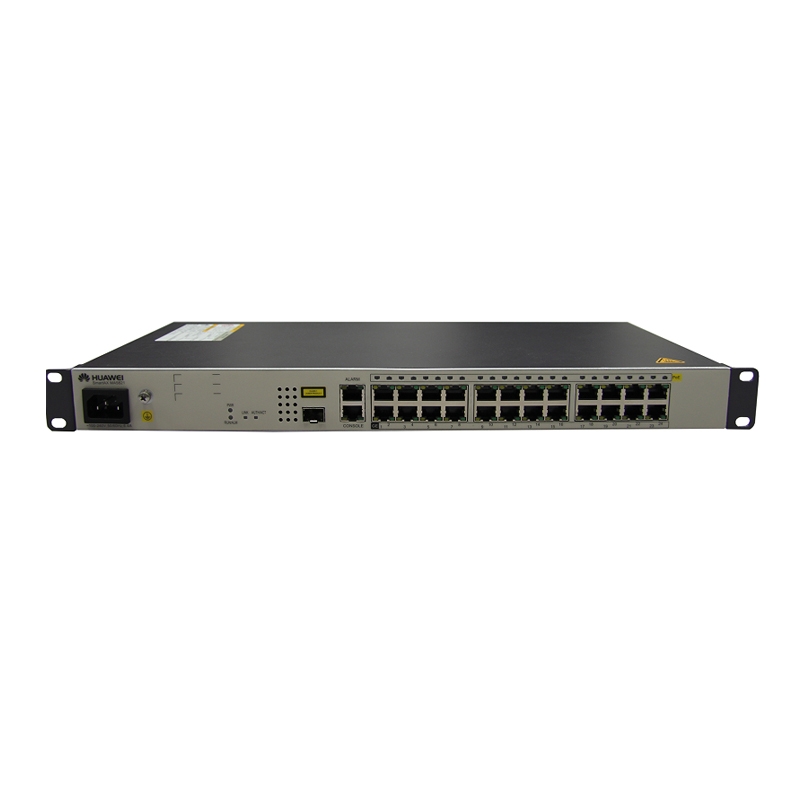

Huawei H83MMA5821A2 Overview

The Huawei H83MMA5821A2 is carrier-grade remote optical access equipment designed for FTTx and cable deployments. Part of the MA5820 series, it integrates a 10G GPON uplink with flexible 16FE user-side access to build high-density last-mile broadband in harsh outdoor environments. Its wide –40°C to 65°C operating range and robust 6 kV surge protection on the power port make it ideal for operators and ISPs in emerging markets, while supporting both PON and 10G PON via auto‑negotiating SFP.

Product Highlights

10G PON

Uplink Speed

16 FE

User Ports

-40~65℃

Wide Temp

Product Applications Scenarios

Service Providers

Enables fiber-based access aggregation for telecom and cable operators, reducing per-subscriber backhaul costs by up to 30% through 10G GPON uplink and dense 16FE user ports.

Public Infrastructure

Delivers reliable FTTx connectivity for campuses, municipalities, and utilities, with hardened –40°C to 65°C design minimizing field failures and truck rolls in outdoor cabinets.

Edge & IoT

Provides low-latency Ethernet access for edge controllers and IoT gateways, using 16FE ports and strong surge protection to cut downtime and maintenance efforts at remote sites.

Product Features Comparison


Model	H83MMA5821A2, Huawei H83MMA Series Remote Optical Access Equipment, 10G GPON uplink/16FE/AC Power	H83MMA569823, Huawei xPON Multi-service Access Chassis, 2×GE+2×GE/Fiber Combo/3 CLOCK/No Optical Transceiver	H901XGHD02, Huawei OLT Interface Board, 8×10G GPON/Advanced/Incl. N2a SFP	TNN1ETMC, Huawei Switch Module, 8xFE+4xFE/GE Hybrid
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	xPON/GE Multi-service Access Module Assembly Chassis	OLT Interface Board	8xFE+4xFE/GE hybrid electrical interface board
Port Configuration	One SFP optical port 10G PON or PON (auto-negotiation); 16 FE user ports	2GE ETH; 2GE ETH/Fiber COMBO	8-port Advanced 10G GPON OLT Interface Board	8xFE + 4xFE/GE hybrid electrical interfaces
Supported Speed	10G PON uplink; FE/GE user-side	GE on LAN and combo interfaces	10G GPON per PON port	FE/GE hybrid
Compatible Platform	MA5820 series FTTx and Cable	Not Specified	MA5800-X7	OSN 7500 II
Installation Type	Remote optical access equipment	Chassis module assembly	Subrack interface board	Interface board in OSN chassis

Optional Add-ons

Model Number	Description

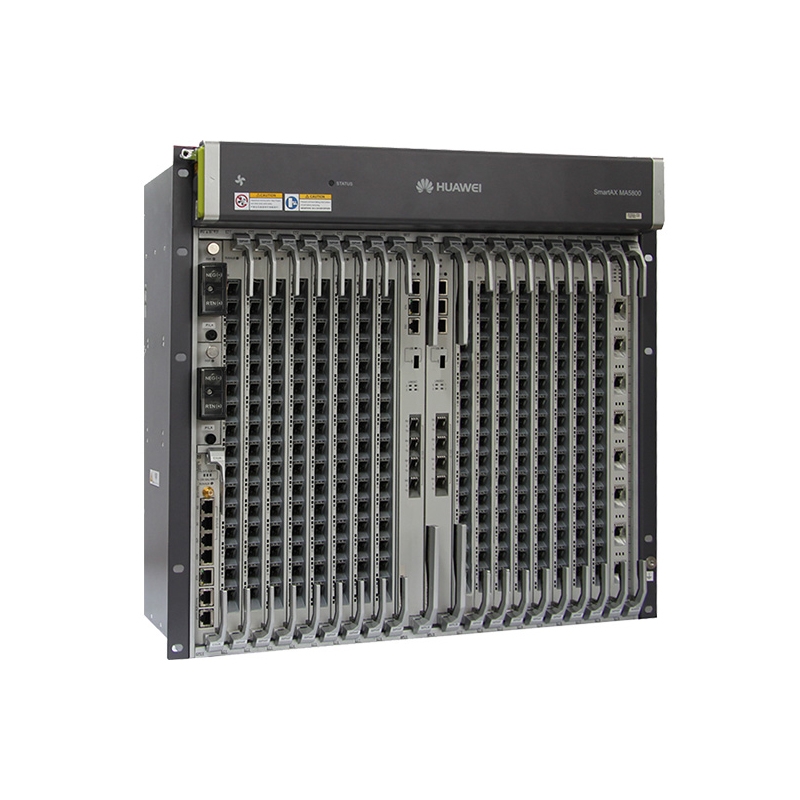

H901XGHD02	Huawei MA5800-X7 8-port Advanced 10G GPON OLT interface board for aggregating H83MMA remote units
ODCM08001	Huawei dispersion compensation module for long-distance GPON/10G GPON backhaul links
PDC-2200WF	Huawei 2200W high-efficiency power module to support access and aggregation platforms in the same FTTx network

Quality Certifications

Specification

Huawei H83MMA5821A2 Specification

Model

H83MMA5821A2

Brand

Huawei

Part Number

02232FSG

Product Description

10G GPON Remote Optical Access Equipment(AC, 16FE, including single 10G GPON uplink module, including Installation Material and Document, America Power Cable)

Product Series

MA5820

Dimensions (H x W x D)

43.6mm x 250mm x 180mm (8 FE) 43.6mm x 442mm x 220mm (16 FE/24 FE)

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power

AC: 220V

Network-side Ports

One SFP optical port 10G PON or PON (auto-negotiation)

User-side Ports

8 FE 16 FE 24 FE 24 GE PoE

Surge Protection

Power port: 6 kV FE/GE: 4 kV

Sub Product Family

FTTx and Cable

UOM

PCS

Get more information

Discover unbeatable prices and fast shipping for the H83MMA5821A2, Huawei H83MMA Series Remote Optical Access Equipment, 10G GPON uplink/16FE/AC Power . Access the detailed H83MMA5821A2, Huawei H83MMA Series Remote Optical Access Equipment, 10G GPON uplink/16FE/AC Power datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are included with the H83MMA5821A2?

The H83MMA5821A2 comes with an America Power Cable, installation materials, and comprehensive documentation.

How does the H83MMA5821A2 compare with other 10G GPON remote optical access equipment?

The H83MMA5821A2 stands out for its comprehensive features, including 16FE ports, 10G GPON uplink module, and complete installation materials, providing a reliable and efficient solution.

Is the H83MMA5821A2 easy to manage?

Yes, the H83MMA5821A2 is designed for easy management with user-friendly interfaces and comprehensive documentation to support administrators.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

Is the H83MMA5821A2 cost-effective for large-scale deployments?

Yes, the H83MMA5821A2 offers a cost-effective solution for large-scale network deployments with its robust 10G GPON capabilities and comprehensive installation materials included.

What are the key features of the H83MMA5821A2?

Key features include 10G GPON uplink support, 16 Fast Ethernet ports, AC power, and comprehensive installation materials and documentation.

What application scenarios is the H83MMA5821A2 suitable for?

The H83MMA5821A2 is ideal for remote optical network access, particularly in large campuses, enterprise networks, and service provider environments.

How can I install the H83MMA5821A2?

The H83MMA5821A2 comes with installation materials and a detailed documentation guide to facilitate easy and efficient installation.

Does the H83MMA5821A2 require regular upgrades?

The H83MMA5821A2 may require firmware updates to ensure optimal performance and security; refer to the manufacturer's guidelines for upgrade procedures.

Are there any alternative products to the H83MMA5821A2?

Alternative products depend on specific requirements, but within Huawei's portfolio, there might be other models to consider for comparison.

What common troubleshooting steps should I follow for the H83MMA5821A2?

Common troubleshooting includes checking all cable connections, ensuring the power supply is stable, and reviewing the configuration settings as per the documentation.
