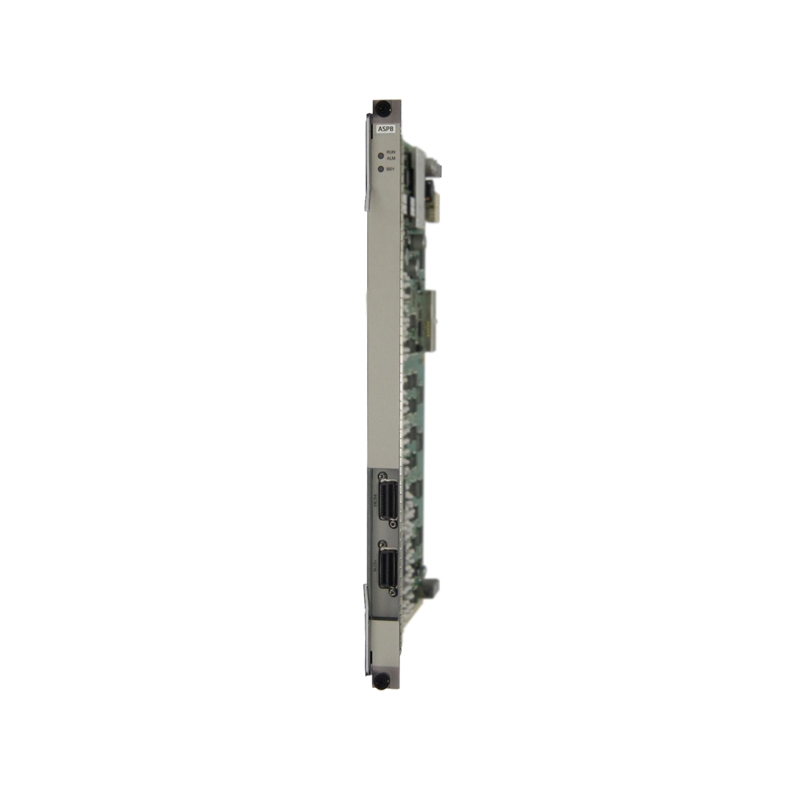

H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services

Name: H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services
SKU: H80CASPB
Rating: 5 (2 reviews)

Brand: Huawei
Model: H80CASPB

Rating:

100%

5/5.0

2 Reviews

21 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services

100% Genuine Ready to Ship

Overview

Huawei H80CASPB Overview

The Huawei H80CASPB is a carrier-grade VoIP subscriber board for SmartAX MA5600T access platforms, delivering up to 64 VoIP POTS ports and 64 G.711 DSP channels for high-density voice access. With support for multiple codecs including G.711A, G.711U, G.729, G.723, and G.726, it enables flexible deployment across Asia, Europe, Africa, and North America. The Delander 64-pin connector, automatic high-temperature shutdown, and extended operating range from -40°C to +65°C ensure reliable performance for distributors, integrators, and end users.

Product Highlights

DSP Chnls

29W max

Low Power

-40~65℃

Wide Temp

Product Applications Scenarios

Service Providers

High-density POTS and VoIP ports let operators aggregate legacy voice and IP telephony on one platform, cutting access node footprint and up to 30% site OPEX.

Enterprise Network

Supports multi-codec VoIP and stable PSTN migration for large campuses, simplifying PBX consolidation and reducing analog line management effort by about 25%.

Public Infrastructure

Rugged temperature range and line testing (MELT) make it ideal for public telephony, emergency call boxes, and municipal access nodes with lower truck rolls.

Product Features Comparison


Model	H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services	CVDSL3209, Huawei CVDSL3200 Series Subscriber Cable, 32-port VDSL/20m/0.5mm	LS6W2PSD0500, Huawei CE Series Switch Accessory, 500W DC Power, Hot-swappable, High efficiency	A00COUP05, Huawei Antenna Feeder Coupler, Cavity stripline, 800~2500MHz, 20±1dB, N/female
Brand	Huawei	Huawei	Huawei	Huawei
Compatible Models	n/a	n/a	n/a	n/a
Accessory Type	n/a	Subscriber Cable	DC Power Supply Unit	Antenna Feeder Coupler
Connector Type	Delander 64-pin	n/a	n/a	N/female
Mounting Method	n/a	n/a	n/a	n/a
Certification	n/a	RoHS	n/a	RoHS

Optional Add-ons

Model Number	Description
CVDSL6425	Huawei CVDSL Series 64-channel VDSL subscriber cable, 25m, 128 cores for MA5600T voice access wiring
H83MMA5626A2	Huawei GPON remote optical access unit, 1x GPON uplink and 16x FE user ports for FTTx voice aggregation
OSPL43101	Huawei bare optical splitter 1:4 SC/UPC, G.657A, 1m pigtail for distributing OLT/MA5600T optical feeds

Quality Certifications

Specification

Huawei H80CASPB Specification

Model

H80CASPB

Brand

Huawei

Connector

Delander 64-pin

Operating temperature

40° C to +65° C

Power consumption

• Static: 13W • Maximum: 29W (calculated based on the 25% convergence ratio)

Automatic shutdown at high temperature

Supported

DSP channel (G.711)

Codec

G.711A / G.711U / G.729 / G.723 / G.726

Polarity of wires a and b

a+ b

Short loop

Supported

16/12 KC

Supported

Polarity reversal

Supported

Power supply at high voltage (for a long distance)

Supported

Port current

20 mA / 25 mA / 30 mA

MELT

Supported

MELT precision

High

Get more information

Discover unbeatable prices and fast shipping for the H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services . Access the detailed H80CASPB, Huawei SmartAX MA5600T VoIP Subscriber Board, 64 VoIP POTS Ports/64 Channels/Access Services datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80CASPB?

The H80CASPB typically requires a chassis, power supply, and VAS boards for full functionality.

How does the H80CASPB compare with other similar products?

The H80CASPB stands out for its high port density and robust VoIP capabilities compared to other VoIP boards.

What makes the H80CASPB suitable for system integrators?

The H80CASPB's scalability, reliability, and cost-efficiency make it an excellent choice for system integrators.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H80CASPB?

The H80CASPB is highly cost-effective, offering 64 VoIP POTS access services on a single board, reducing hardware expenses.

What are the main features of the H80CASPB?

The H80CASPB supports 64 VoIP channels, high reliability, and excellent voice quality.

What are the application scenarios for the H80CASPB?

The H80CASPB is ideal for residential and enterprise VoIP services, enhancing voice connectivity.

How do I install the H80CASPB?

The H80CASPB can be installed in the Huawei SmartAX MA5600T chassis. Ensure the system is powered off during installation.

Does the H80CASPB need software upgrades?

Yes, it's advisable to keep the software updated for optimal performance and security.

Are there alternative products to the H80CASPB?

The Huawei SmartAX series offers other boards, but the H80CASPB is unique in its VoIP POTS capabilities.

What common troubleshooting steps exist for the H80CASPB?

Check power connections, software updates, and ensure correct installation to troubleshoot.

What accessories are available for the H80CASPB?

The H80CASPB typically requires a chassis, power supply, and VAS boards for full functionality.

How does the H80CASPB compare with other similar products?

The H80CASPB stands out for its high port density and robust VoIP capabilities compared to other VoIP boards.

What makes the H80CASPB suitable for system integrators?

The H80CASPB's scalability, reliability, and cost-efficiency make it an excellent choice for system integrators.

How cost-effective is the H80CASPB?

The H80CASPB is highly cost-effective, offering 64 VoIP POTS access services on a single board, reducing hardware expenses.

What are the main features of the H80CASPB?

The H80CASPB supports 64 VoIP channels, high reliability, and excellent voice quality.

What are the application scenarios for the H80CASPB?

The H80CASPB is ideal for residential and enterprise VoIP services, enhancing voice connectivity.

How do I install the H80CASPB?

The H80CASPB can be installed in the Huawei SmartAX MA5600T chassis. Ensure the system is powered off during installation.

Does the H80CASPB need software upgrades?

Yes, it's advisable to keep the software updated for optimal performance and security.

Are there alternative products to the H80CASPB?

The Huawei SmartAX series offers other boards, but the H80CASPB is unique in its VoIP POTS capabilities.

What common troubleshooting steps exist for the H80CASPB?

Check power connections, software updates, and ensure correct installation to troubleshoot.

What accessories are available for the H80CASPB?

The H80CASPB typically requires a chassis, power supply, and VAS boards for full functionality.

How does the H80CASPB compare with other similar products?

The H80CASPB stands out for its high port density and robust VoIP capabilities compared to other VoIP boards.

What makes the H80CASPB suitable for system integrators?

The H80CASPB's scalability, reliability, and cost-efficiency make it an excellent choice for system integrators.
