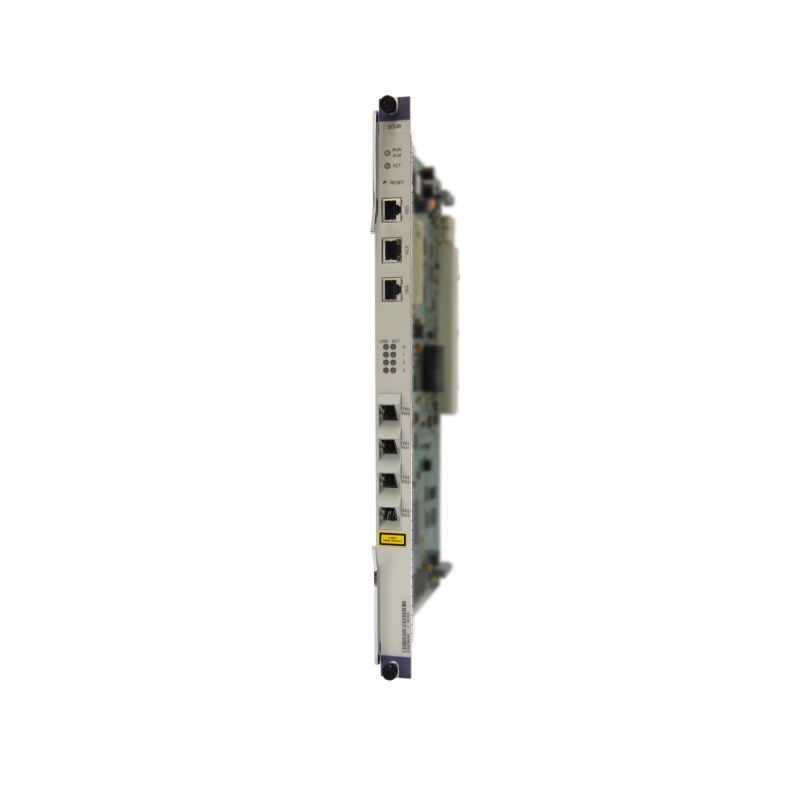

H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2x10GE, 4GB Memory, 1.8GHz CPU

Name: H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2x10GE, 4GB Memory, 1.8GHz CPU
SKU: H802SCUB
Rating: 4.8 (4 reviews)

Brand: Huawei
Model: H802SCUB

Rating:

95%

4.8/5.0

4 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2x10GE, 4GB Memory, 1.8GHz CPU

100% Genuine Ready to Ship

Overview

Huawei H802SCUB Overview

The Huawei H802SCUB is a carrier-grade SmartAX MA5600T super control unit board designed for FTTx and broadband aggregation networks. It integrates a 24 x GE LAN switch with 48 Gbit/s switching capacity and 1 Gbit/s bandwidth per slot to handle dense access in metro and campus deployments across Asia, Europe, Africa, and North America. With a 16,384-entry MAC address table, rich IPv4/IPv6 routing resources, and optimized multicast support, it suits distributors building GPON platforms, integrators upgrading legacy DSL, and operators delivering triple-play services.

Product Highlights

48 Gbit/s

Switch Perf

24 x GE

GE Ports

16,384

MAC Scale

Product Applications Scenarios

Service Providers

The H802SCUB aggregates high-density GE access for broadband and IPTV, simplifying OLT control and cutting central office footprint by up to 30% for regional carriers.

Enterprise Network

In large enterprises, it delivers stable Layer 2 switching, ARP, and ACLv4/v6 control, improving campus access reliability and reducing unplanned downtime for IT teams.

Public Infrastructure

For public sector broadband projects, its multicast scale and IPv4/IPv6 routing tables support e-government, education, and surveillance services with predictable latency.

Product Features Comparison


Model	H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2×10GE, 4GB Memory, 1.8GHz CPU	TNH1ISUE11, Huawei TNH1ISUE Series Integrated System Control Unit, 8xFE/21xE1/2xSTM-4	TNHD00ISUB01, Huawei TNHD Series Integrated System Control Unit, 21xE1/120ohm, 2xSTM-1 S-1.1 LC, ESFP Optical Module	TNHD00ISUE02, Huawei TNHD00ISUE02 Integrated System Control Unit, 8xFE/21xE1, 2xSTM-4, ESFP Optical Module
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	Integrated System Control Unit	Integrated System Control Unit	Integrated System Control Unit
Port Configuration	LAN switch: 24 x GE; Service port: 16,384	8x FE, 21x E1, 2x STM-4	21 x E1, 21 x T1, 2 x STM-1	8x FE, 21x E1, 2x STM-4
Supported Speed	Switching capacity: 48 Gbit/s; Bandwidth per slot: 1 Gbit/s	n/a	Switching Capacity: 40Gbps	n/a
Compatible Platform	n/a	n/a	n/a	n/a
Installation Type	n/a	Rack-mounted	Standard Rack 19 inches	1U Rack Mountable

Optional Add-ons

Model Number	Description
H901GPHF03	Huawei 16-port GPON OLT interface board with Class B+ SFP for MA5800/MA5600T series
S-SFP-FE-LH40-SM1310	Huawei FE single-mode 40 km eSFP module for uplink and aggregation ports
DMIC-2SFP+	Huawei 2×10GE SFP+ interface card to extend high-speed uplinks from OLT platforms

Quality Certifications

Specification

Huawei H802SCUB Specification

Model

H802SCUB

Brand

Huawei

LAN switch

24 x GE

Switching capacity

48 Gbit/s

Bandwidth per slot

1 Gbit/s

MAC address table

16384

Access user

1024

Multicast user

2048

Number of static programs configurable

4096

Maximum number of online programs supported

1024

IPv4 routing table

5120

IPv6 routing table

5120

Service port

16384

ARP table

8192

ACL rule

ACLv4: 1024; ACLv6: 256

Maximum Frame Size

2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.

VRF (L3 VPN)

Not supported

Operating temperature

40° C to +65° C

Power consumption

Static: 14W Maximum: 17W

Get more information

Discover unbeatable prices and fast shipping for the H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2×10GE, 4GB Memory, 1.8GHz CPU . Access the detailed H802SCUB, Huawei SmartAX MA5600T Super Control Unit Board, 2×10GE, 4GB Memory, 1.8GHz CPU datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are compatible with the H802SCUB?

Compatible accessories include fiber optic modules, power supply units, and backup batteries specific to the MA5600T series.

How does the performance of the H802SCUB compare to similar products?

The H802SCUB offers superior processing power and reliability compared to similar products, ensuring high network stability and performance.

What is the warranty period for the H802SCUB Super Control Unit Board?

The H802SCUB typically comes with a 1-year manufacturer warranty, with options for extended coverage.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What are the main features of the H802SCUB Super Control Unit Board?

The H802SCUB Super Control Unit Board for Huawei SmartAX MA5600T offers advanced processing capabilities, robust security features, and high-speed data handling.

How cost-effective is the H802SCUB for system integrators?

The H802SCUB provides high performance at a competitive price, enhancing overall network efficiency and reducing operational costs.

What is the primary application scenario for the H802SCUB?

The H802SCUB is ideal for large-scale FTTx deployments, supporting high bandwidth and a wide range of services.

How do I install the H802SCUB into the MA5600T chassis?

To install the H802SCUB, align it with the appropriate slot in the MA5600T chassis and secure it firmly in place following the installation guide.

Does the H802SCUB require regular firmware upgrades?

Yes, regular firmware upgrades are recommended to maintain optimal performance and security features.

Are there alternative products to the H802SCUB?

Alternatives to the H802SCUB include other control unit boards from the Huawei SmartAX series like the H801SCUA.

What common troubleshooting steps are there for the H802SCUB?

Common troubleshooting includes checking the board status LEDs, verifying connections, and ensuring updated firmware. Consult the user manual for detailed steps.
