What makes the H801SPUC cost-effective?

The H801SPUC is cost-effective due to its support for HQoS, which optimizes bandwidth utilization.

What are the main features of the H801SPUC?

The H801SPUC features HQoS support, high uplink capacity, and reliability for wholesale scenarios.

In what scenarios can I use the H801SPUC?

The H801SPUC is ideal for open access networks and wholesale to multiple RSPs.

How do I install the H801SPUC?

The H801SPUC can be installed by following the Huawei SmartAX MA5600T series installation guide.

Does the H801SPUC require regular upgrades?

Yes, for optimal performance, periodic firmware upgrades are recommended for the H801SPUC.

Are there alternative products to the H801SPUC?

Similar uplink boards in the Huawei MA5600T series can be considered as alternatives.

What accessories are available for the H801SPUC?

Accessories include compatible cables, connectors, and mounting kits.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

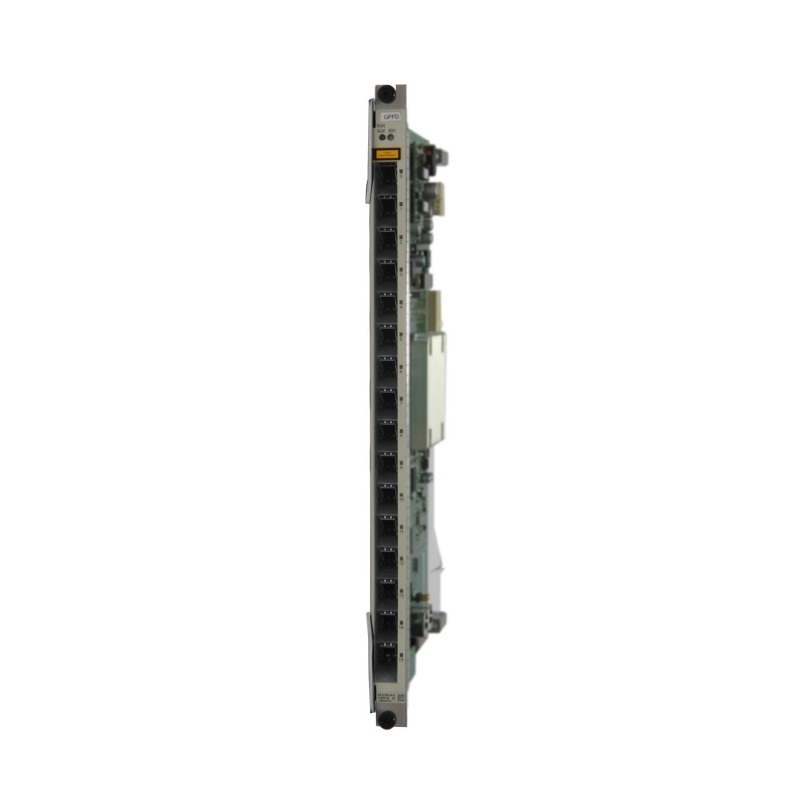

H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs

Name: H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs
SKU: H801SPUC
Rating: 5 (1 reviews)

Brand: Huawei
Model: H801SPUC

Rating:

100%

5/5.0

1 Review

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs

100% Genuine Ready to Ship

Overview

Huawei H801SPUC Overview

Huawei H801SPUC is a carrier-grade uplink module for SmartAX MA5600T OLT, designed for open access and multi-RSP wholesale environments. It delivers 40 Gbit/s switching performance with 32,768 MAC addresses to support dense subscriber aggregation in Asia, Europe, Africa, and North America. HQoS and shaping in outband management enable precise bandwidth control for ISPs, distributors, and SMB integrators, while SyncE and 1588ACR clock synchronization ensure stable triple-play and mobile backhaul services across converged access networks.

Product Highlights

40 Gbit/s

High Through

32,768

MAC Scale

53W/90W

Power Range

Product Applications Scenarios

Service Providers

Supports wholesale multi-RSP access with HQoS and VLAN stacking, enabling operators to segment services and cut per-subscriber backhaul cost by up to 20%.

Enterprise Network

Delivers 40 Gbit/s uplink capacity and 32,768 MAC entries, helping campus cores aggregate access shelves reliably while simplifying QoS policy enforcement.

Public Infrastructure

Combines SyncE, 1588ACR, and Y.1731 OAM to build deterministic transport for utilities and city networks, reducing downtime and O&M visit frequency.

Product Features Comparison


Model	H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs	TN13VA101, Huawei OSN Series, 1-Channel VOA Board/Optical Attenuation/For OSN 1800	U18SLOCREG04, Huawei U1980 Local Regeneration Module, Local registration, Voice support, Plug-in module	CR2D0EAGFH10, Huawei NetEngine Series Physical Interface Card, 10×100/1000Base-X SFP
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	1-Channel Variable Optical Attenuator Board	Local regeneration	Physical Interface Card
Port Configuration	n/a	Channel Count: 1	Network Ports: 4 GE	Port Count: 10
Supported Speed	Forwarding capability: 40 Gbit/s	Service Rate: 10Gbps	n/a	Interface Speed: 100/1000Base-X
Compatible Platform	n/a	Application: Telecom Networks	Compatibility: Huawei U1980	n/a
Installation Type	n/a	Mounting Type: Rack-mounted	Plug-in module	n/a

Optional Add-ons

Model Number	Description
H80D00VDPE01	Huawei VDSL2 service board for MA5600T series, expanding copper-based broadband access capacity.
H80D00GPBD01	Huawei GPON service board for MA5600T/MA5680T OLTs, providing high-density fiber access for FTTH.
PHD-600WA-B	Huawei 600W HVDC power module supplying reliable DC power for MA5600T chassis deployments.

Quality Certifications

Specification

Huawei H801SPUC Specification

Model

H801SPUC

Brand

Huawei

Forwarding capability

40 Gbit/s

MAC number

32768

Maximum frame size

• 2052 bytes • 9216 bytes (jumbo frame enabled)

VLAN forwarding

VLAN+MAC or SVLAN+CVLAN

Shaping in outband management

Supported

HQoS

Supported

L3 forwarding

Not supported

Clock synchronization

1588ACR, SyncE

Y.1731

Supported

Link aggregation

Supported at Inter-board and Intra-board

MSTP ring network protection

Supported

G.8032 ring network protection

Not supported

Operating temperature

40° C to +65° C

Power consumption

• Static: 53W • Maximum: 90W

Get more information

Discover unbeatable prices and fast shipping for the H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs . Access the detailed H801SPUC, Huawei SmartAX MA5600T Uplink Board, HQoS Function/For Open Access/Wholesale to Multi-RSPs datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How does the H801SPUC compare to other uplink boards?

The H801SPUC offers superior HQoS functionality and multi-RSP support compared to basic uplink boards.

How can I troubleshoot common issues with the H801SPUC?

Refer to the Huawei MA5600T series troubleshooting guide for common issues and solutions.

Why is HQoS important in the H801SPUC?

HQoS ensures efficient bandwidth management, critical for delivering multiple RSP services effectively.
