What Is Multicast VLAN Registration (MVR) and How to Configure It on Cisco Switches

In today’s business networks, efficient bandwidth management is crucial, especially when deploying IPTV, video conferencing, or streaming media across multiple VLANs. One of the best practices to optimize multicast traffic delivery while preserving VLAN isolation is to use Multicast VLAN Registration (MVR).

This FAQ explains what MVR is, how it works, why it matters, and how to configure it on Cisco switches to enhance your network’s scalability and efficiency.

What Is Multicast VLAN Registration (MVR)?

Multicast VLAN Registration (MVR) is a Layer 2 feature that allows multicast streams to traverse multiple VLANs without replicating traffic in each VLAN unnecessarily. It enables a dedicated multicast VLAN (MVLAN) to carry multicast traffic while subscribers remain in separate VLANs for unicast traffic.

• Centralizes multicast traffic in a dedicated VLAN.
• Works with IGMP snooping to forward multicast streams only to interested receivers.
• Prevents multicast flooding, improving bandwidth efficiency and reducing unnecessary traffic.

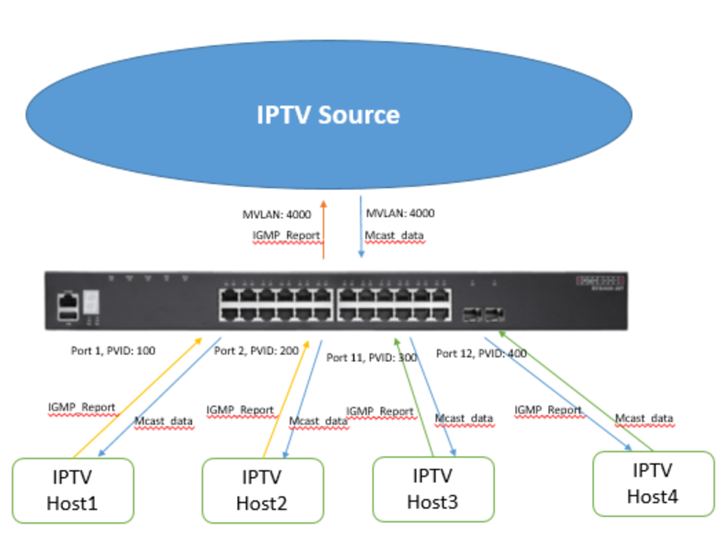

How Does MVR Work?

MVR uses:

• Multicast VLAN (MVLAN): The VLAN carrying multicast streams across the Layer 2 network.
• Source Ports: Connected to multicast sources or upstream routers, placed in the MVLAN.
• Receiver Ports: Connected to subscriber devices, remaining in their access VLANs while receiving multicast streams.

MVR listens for IGMP join/leave messages from devices in access VLANs and forwards multicast traffic from the MVLAN only to ports with interested receivers.

Modes:

• Transparent Mode: Forwards IGMP reports from receiver VLANs without modification.
• Proxy Mode: Forwards IGMP reports to the multicast router in the context of the MVLAN, reducing upstream traffic.

Why Use MVR in Your Network?

Implementing MVR on Cisco switches offers:

• Reduced Bandwidth Waste: Multicast streams are delivered only to interested receivers.
• Improved Performance: Ideal for IPTV, video conferencing, and surveillance.
• Scalability: Supports multiple multicast groups and receivers without increasing VLAN complexity.
• Security & Isolation: Unicast traffic remains isolated in separate VLANs.

Common MVR Application Scenarios

• IPTV delivery across corporate VLANs for training or signage.
• Live video conferencing across departments in different VLANs.
• Streaming internal announcements efficiently.
• Video surveillance distribution across a segmented network.

How to Configure MVR on Cisco Switches (CLI Example)

Below is a basic example to configure MVR on a Cisco switch:

conf t
! Define MVLAN (e.g., VLAN 100)
vlan 100
name MVLAN
exit

! Enable MVR globally
mvr

! Enable MVR on MVLAN
interface vlan 100
mvr vlan 100
exit

! Configure the source port (uplink to multicast router/server)
interface GigabitEthernet1/0/1
switchport mode trunk
mvr type source
exit

! Configure receiver port
interface GigabitEthernet1/0/2
switchport access vlan 10
mvr type receiver
exit

! Verify configuration
show mvr

Tips:

• Ensure IGMP snooping is enabled on VLANs for effective multicast management.
• Match MVLAN ID across your Layer 2 network.
• Test with IPTV or multicast test streams to confirm selective delivery.

Choosing the Right Cisco Switches for MVR

When planning for MVR:

• Ensure your Cisco switch model supports MVR and IGMP snooping (e.g., Catalyst 9400, 6500, 9300 series).
• Verify maximum supported multicast groups and MVLANs.
• Check software feature licenses if required on your platform.

If you need assistance selecting the right switch for your IPTV or streaming projects, contact our technical experts for recommendations.

Conclusion

Multicast VLAN Registration (MVR) is a practical solution to deliver multicast traffic efficiently across multiple VLANs without sacrificing bandwidth or network performance. By leveraging MVR on Cisco switches, you can enhance your network’s efficiency, scalability, and user experience for IPTV, video conferencing, and surveillance applications.
