What is the HPE Proliant ML110 Gen9 Series Servers?

HPE ProLiant ML110 Gen9 Server is a small, quiet tower with performance, expansion, and growth at an affordable price to meet most small and midsized businesses’ compute demands. The ML110 Gen9 Server is a single processor tower form factor that can also be placed in a rack server cabinet using 4.5U of rack space. It includes up to five PCIe slots with room to grow with eight Large Form Factor (LFF) or sixteen Small Form Factor (SFF) disk drives. Provides eight DDR4 DIMM slots supporting HPE DDR4 SmartMemory with a maximum capacity of 256 GB, making this the ideal server for small-to mid-sized businesses and remote offices/branch offices.

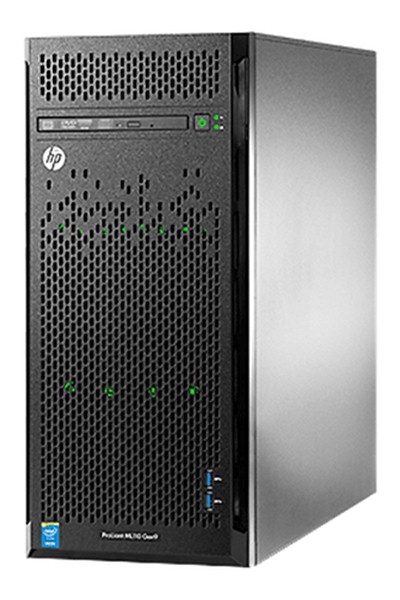

ml110-server

Table 1 shows the main product features of ML110 Gen9 Servers.

Feature	Description
Processor (One of the following depending on Model)	E5-1650v3, E5-1603v3, E5-1620v3, E5-2660v4, E5-2640v4, E5-2630Lv4, E5-2623v4, E5-2620v4, E5-2609v4, E5-2603v4, E5-1680v4, E5-1660v4, E5-1620v4, E5-1607v4, E5-1603v4
Chipset (One of the following depending on model)	Intel C610 series chipset Intel E5-2600v4 processor family Intel E5-2600v3 processor family Intel E5-1600v4 processor Intel E5-1600v3 processor family
Cache memory	10MB (1 x 10MB) Level 3 cache1 15MB (1 x 15MB) Level 3 cache2 20MB (1 x 20MB) Level 3 cache3 25MB (1 x 25MB) Level 3 cache4 30MB (1 x 30MB) Level 3 cache4 35MB (1 x 35MB) Level 3 cache5
Memory	DIMM slots available: 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel) Maximum capacity (LRDIMM): 128GB (8 x 16GB LRDIMM @ 2133 MHz) Maximum capacity (RDIMM): 256GB (8 x 32GB RDIMM @ 2133 MHz)
Network controller	Broadcom 5717C0 Dual-port 1Gb
Power supply	HPE 350 W ATX-Gen9 power supply FIO kit HPE 550 W ATX-Gen9 power supply kit HPE 750 W CS gold hot plug power supply kit
Form factor	Tower (4.5 U)

Table 2 shows the main models of ML110.

Model	Description
838502-001	HPE ProLiant ML110 Gen9 E5-2603v4 8GB-R B140i 4LFF NHP 350W PS Entry Server
838503-001	HPE ProLiant ML110 Gen9 E5-2620v4 8GB-R B140i 4LFF 350W PS Base Server
840665-S01	HPE ProLiant ML110 Gen9 E5-2603v4 8GB-R B140i 8SFF 1TB 550W PS Server
840667-S01	HPE ProLiant ML110 Gen9 E5-1620v4 8GB-R B140i 4LFF 1TB 550W PS Server
