What Is an Optical Distribution Frame (ODF)? Key Functions and Use Cases Explained

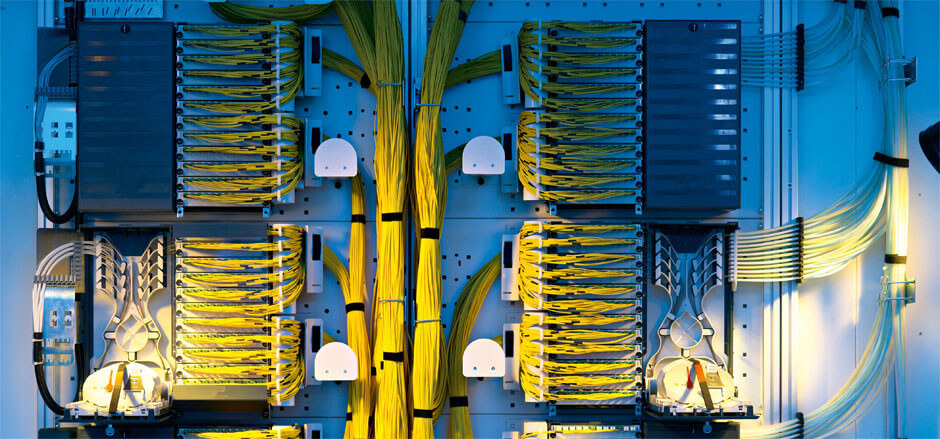

An Optical Distribution Frame (ODF) is a key infrastructure component used to organize, manage, and connect fiber optic cables in a structured and secure manner. Commonly found in central offices, data centers, and telecom environments, the ODF serves as a termination point for optical fibers, allowing for easy patching, splicing, and maintenance.

Its main purpose is to centralize fiber cable management while protecting the fiber ends and simplifying signal routing between network equipment.

Why Are ODFs Essential in Fiber Optic Networks?

ODFs play a crucial role in high-capacity fiber networks, especially as enterprises and telecom carriers expand backbone, access, and metro networks. Here’s why they matter:

• Efficient cable organization: Reduces clutter and confusion in high-density environments
• Simplified troubleshooting and maintenance: Technicians can easily access and test fiber ports
• Flexible connectivity: Allows quick reconfiguration of fiber links
• Protection: Prevents damage to delicate fiber connectors and pigtails



Types of Optical Distribution Frames

ODFs can be classified based on installation and functionality:

1. Wall-mounted ODFs – Ideal for compact installations such as enterprise communication rooms.
2. Rack-mounted ODFs – Used in high-density environments like telecom operator rooms and large data centers.
3. Floor-standing ODFs – Typically used in central offices and long-haul transmission networks.

They may also include splicing trays, patch panels, or integrated cable management systems.

ODF in Real-World Applications

Optical distribution frames are deployed across various industries:

• Telecom core networks – Interconnecting long-haul WDM/OTN equipment such as Huawei OSN 3500 or ZTE optical platforms
• Enterprise backbone networks – For structured cabling between MDF and IDF zones
• Data centers – Managing fiber interconnects between switches, storage, and routers
• FTTx deployments – As termination points in fiber-to-the-building or fiber-to-the-home (FTTH) solutions



Benefits of Using an ODF

Feature	Benefit
Centralized Fiber Access	Simplifies network layout and administration
Modular Design	Supports flexible scaling
Reduced Downtime	Enables fast identification of faults
Signal Integrity	Minimizes insertion loss and reflection



Related Equipment: What Works with an ODF?

ODFs are often integrated into larger transmission and optical transport solutions. Common associated equipment includes:

• WDM/OTN platforms (e.g. Huawei OSN 7500, ZTE ZXONE, FiberHome OTNs)
• MSTP systems like Huawei OSN 500 for metro transmission
• Optical modules (SFPs, XFPs) and patch cords
• OTDR and optical testers for diagnostics



FAQs About Optical Distribution Frames

Q1: Can ODFs be used in both single-mode and multi-mode networks?

Yes. ODFs can be equipped with adapters and panels compatible with either single-mode or multi-mode fiber depending on the use case.

Q2: Is an ODF necessary for small-scale fiber deployments?

While not mandatory, even small-scale networks benefit from ODFs by improving organization, reducing risk of damage, and easing expansion.

Q3: What’s the difference between an ODF and a patch panel?

An ODF is designed specifically for fiber optic networks and often includes more comprehensive cable management and splicing capabilities. A patch panel is a simpler interface, typically for copper or fiber.

Conclusion

An Optical Distribution Frame (ODF) is a critical element in structured fiber optic network design. It ensures proper termination, protection, and manageability of fiber links in data centers, telecom stations, and enterprise wiring closets. As bandwidth demands continue to rise, investing in a high-quality ODF system is essential for building a reliable, scalable, and easily maintained fiber infrastructure.
