What Is an Access Point? — Explained for Network Engineers and SMBs

A wireless access point (AP) is a network device that allows Wi-Fi-enabled devices—such as laptops, smartphones, and IoT equipment—to connect to a wired Ethernet network. Unlike consumer routers that bundle routing and wireless functions, a dedicated AP focuses solely on wireless connectivity, often in enterprise or business-grade deployments.

In short: An access point extends wired network services into the wireless domain, enabling seamless mobility, centralized management, and high-capacity wireless access in office, industrial, and public environments.

What Is an Access Point?

A wireless access point (WAP) is a Layer 2 device that enables communication between wireless clients and a wired LAN. It bridges the wireless signal to the Ethernet backbone and allows users to move freely within a coverage area while staying connected to the network.

Access points are often used in:

• Enterprise networks with high user density
• SMBs that want to expand wireless reach
• Public venues like hotels, schools, and hospitals

Unlike a wireless router, which performs routing, DHCP, and firewalling, an AP focuses only on wireless access and usually relies on a separate router or controller.

How Does a Wireless Access Point Work?

At a high level, access points convert digital signals from the wired network into wireless radio signals and vice versa. Key working components include:

• Radios and antennas: Broadcast and receive Wi-Fi signals (2.4 GHz / 5 GHz / 6 GHz for Wi-Fi 6/6E/7)
• Ethernet uplink: Connects to the wired LAN or PoE switch
• Onboard OS: Handles encryption, traffic management, and communication protocols

Common Features:

• MU-MIMO: Connects multiple users simultaneously
• Beamforming: Focuses signal toward active clients
• Channel management: Avoids interference and balances load
• WPA3 encryption: Provides secure wireless transmission
• AI-driven diagnostics (in some models): Auto-optimizes performance and alerts IT staff of anomalies

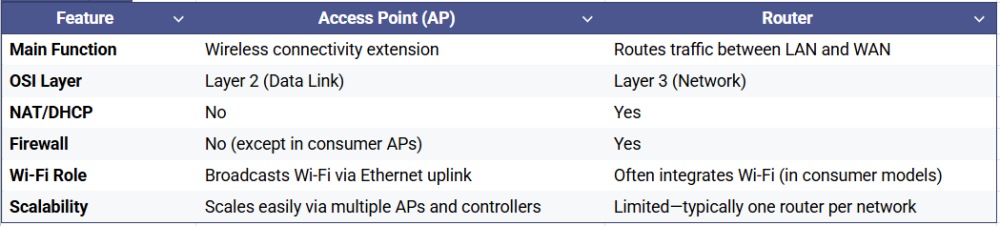

Access Point vs Router: What’s the Difference?

Though both may offer Wi-Fi, their roles differ:

When Should You Use an Access Point?

Deploy access points when:

• Wi-Fi dead zones exist in your building
• Wired Ethernet backhaul is available for stable uplinks
• User density is high (e.g., >25 users in a single area)
• Roaming between zones is required (e.g., multi-floor buildings)
• Centralized management is a priority (e.g., Cisco WLC or Aruba Central)

Common AP Modes:

• Root AP: Wired connection to LAN, serves wireless clients
• Repeater / Mesh: Wirelessly relays to another AP
• Bridge Mode: Connects two LAN segments wirelessly
• Workgroup Bridge: Bridges a wired device to a wireless LAN

Choosing an Access Point: Vendor Examples

Depending on your network size and control requirements:

• Cisco Catalyst 9100 Series: Enterprise-grade, Wi-Fi 6/6E support, controller-based or embedded WLC
• Aruba Instant APs (HPE): Cloud-managed or instant controller-based deployment
• Ubiquiti UniFi APs: Affordable, with centralized UniFi Controller for SMBs
• TP-Link Omada Series: Good for budget deployments with remote cloud management

Browse our Cisco Access Point Product Page to compare models by specs, bands, and controller compatibility.

Pros and Cons of Access Points

✅ Pros:

• Extend Wi-Fi coverage beyond single-router limits
• Support high-density user environments
• Centralized configuration and monitoring
• Seamless roaming with same SSID
• Strong encryption & guest network isolation
• Future-ready for IoT and Wi-Fi 7

⚠️ Cons:

• Higher cost than all-in-one routers
• Requires PoE or power outlet at each AP
• More complex planning and configuration
• Still subject to wireless interference

FAQ

Q1: Can I use an access point without a router?

No. You still need a router to assign IP addresses and provide internet access. The AP only extends Wi-Fi to clients.

Q2: How many access points do I need?

Roughly 1 AP per 1,500–2,000 sq ft or 20–30 active users. For high-density scenarios or metal structures, site surveys are recommended.

Q3: Access Point vs Wi-Fi Extender — Which is better?

APs with wired backhaul offer superior speed and stability. Extenders often suffer from reduced throughput due to shared radios.

Q4: Can I manage multiple APs from one place?

Yes. Many enterprise APs support centralized control via wireless LAN controllers (WLC) or cloud platforms (e.g., Aruba Central, UniFi Controller).

Conclusion

Access points are essential building blocks for any scalable, secure, and high-performance wireless network. Whether you're upgrading office Wi-Fi or designing a multi-AP enterprise setup, understanding how APs work—and how they differ from routers—is key to making the right investment.
