What is a 5 Tuple in Networking and How Is It Used in Network Security?
Selene Gong
In networking and cybersecurity, accurately identifying and managing data flows is critical to maintaining network performance and security. A 5-tuple is a key concept that provides a unique signature for each network communication session. Understanding the 5-tuple helps network engineers and security professionals classify traffic, enforce firewall rules, and optimize flow control.
What Is a 5 Tuple?
A 5-tuple is a standard term in networking that refers to five essential attributes which uniquely identify a single network communication flow. This set of data is fundamental for flow identification, network traffic management, and security enforcement.
Components of a 5 Tuple
The five components that make up a 5-tuple are:
Source IP Address: The IP address of the device initiating the communication.
Source Port Number: The port on the source device used for the session.
Destination IP Address: The IP address of the receiving device.
Destination Port Number: The port on the destination device targeted by the communication.
Protocol Number: The transport protocol in use, such as TCP (6), UDP (17), or ICMP (1).
These elements combined uniquely identify a communication flow and help network devices track and manage traffic efficiently.

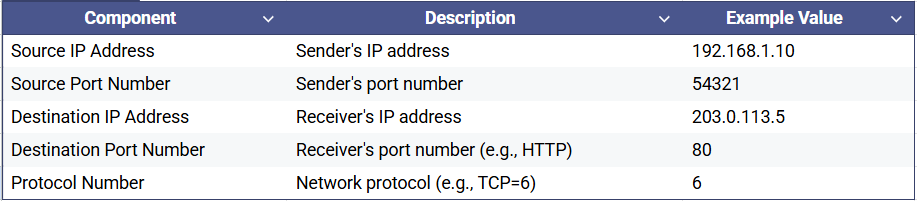

Example Table: 5-Tuple Components
How Firewalls Use 5 Tuples
Firewalls rely heavily on the 5-tuple to implement firewall rules and access control policies. By inspecting these five fields in packets, firewalls decide whether to allow or block network traffic.
For example, a firewall rule might block traffic where:
Source IP is 192.168.1.0/24
Destination IP is 10.0.0.5
Protocol is TCP (6)
Destination port is 443 (HTTPS)
This granular filtering is fundamental to network security, enabling administrators to enforce strict policies on network flows.
Limitations of 5-Tuple in Modern Network Security
While 5-tuple filtering is powerful, it faces challenges in today’s dynamic networks:
Scalability Issues: Managing 5-tuple based policies for thousands of virtual machines or cloud workloads can lead to complex, hard-to-maintain rule sets.
Policy Fragmentation: Without integration across security domains, policies may become siloed, creating visibility gaps.
Dynamic Environments: Modern networks with mobile devices, IoT, and cloud services require more flexible and aggregated security models.
Beyond 5-Tuple: Modern Security Approaches
To address these challenges, modern solutions like Cisco TrustSec offer:
Role-Based Access Control: Policies based on user roles or device types rather than static IP addresses.
Scalable Segmentation: Aggregating flows and policies to simplify management.
Integrated Visibility: Correlating user identity, device posture, and network traffic for comprehensive security.
This evolution allows organizations to maintain security while supporting agile, scalable infrastructure.
FAQ Section
Q1: What is a 5-tuple?
A 5-tuple is a set of five unique fields—source IP, source port, destination IP, destination port, and protocol—that identify a network flow or session.
Q2: What is 5-tuple in TCP connection?
In TCP connections, the 5-tuple includes the TCP protocol number (6), alongside source and destination IPs and ports, uniquely identifying the session.
Q3: What is 5-tuple classification?
5-tuple classification is the process of categorizing network traffic by examining the five tuple fields to apply firewall rules, routing, or QoS policies.
Q4; Can 5-tuple rules handle encrypted traffic?
5-tuple rules operate at the network and transport layers and cannot inspect encrypted payloads; deeper inspection requires additional technologies like TLS termination or SSL inspection.
Q5: How does 5-tuple relate to network performance?
Using 5-tuple matching allows efficient flow tracking and helps optimize routing and security policies, but excessive or overly granular 5-tuple rules can impact device performance.
