VLAN vs Subnet: Navigating Network Segmentation for Your Business
Selene Gong
For IT managers and purchasing decision-makers in small to medium-sized businesses, designing an efficient, secure, and scalable network can be complex. One common area of confusion arises when considering network segmentation: understanding the difference between VLAN and subnet. While both break down large networks into manageable segments, they operate at different network layers and serve distinct, yet complementary, purposes.
This guide clarifies the nuances of VLAN and subnet, explains when to use each, and offers actionable insights for your network design.
What Are VLANs and Subnets?
VLAN (Virtual Local Area Network)
Layer: Operates at Layer 2 (Data Link Layer).
What it does: Virtually isolates networks, creating separate broadcast domains on managed switches.
How it works: Switch ports are logically grouped into VLANs, allowing devices to communicate within the same VLAN while remaining isolated from others.
Subnet (Subnetwork)
Layer: Operates at Layer 3 (Network Layer).
What it does: Divides a large network into smaller segments using IP addressing.
How it works: Uses IP address ranges and subnet masks to manage traffic, requiring routers for communication between subnets.
Are VLANs and subnets the same? No, but it’s a best practice to implement a 1:1 mapping between VLANs and subnets for simplicity and security in business networks.
Key Differences: VLAN vs Subnet
Factor
VLAN (Virtual Local Area Network)
Subnet (Subnetwork)
OSI Layer
Layer 2 (Data Link Layer)
Layer 3 (Network Layer)
Purpose
Logical segmentation by function, department, security
IP address segmentation for routing
Traffic Isolation
At the switch level
At the router level
Broadcast Domain
Creates separate Layer 2 broadcast domains
Limits broadcasts at Layer 3
Addressing
MAC addresses, 802.1Q tagging
IP addresses (IPv4/IPv6)
Configuration Point
Managed switches (port assignments)
Routers and device IP configurations
Hardware/Software
Primarily software-defined, using switches
Router-dependent for inter-subnet routing
Inter-Segment Traffic
Requires a Layer 3 device for inter-VLAN routing
Requires routers for communication between subnets
Why VLANs and Subnets Matter for Your Business
Enhanced Security
VLANs isolate sensitive departments or device groups (e.g., guest Wi-Fi, VoIP phones, security cameras).
Subnets enable controlled routing and easier monitoring for threats within network segments.
Improved Performance
VLANs reduce broadcast traffic across the network.
Subnets reduce host counts per segment, improving internal communication speeds.
Better Manageability
VLANs group devices logically regardless of location.
Subnets provide structured IP management, simplifying growth and troubleshooting.
Cost Efficiency
VLANs enable logical partitioning on existing switches, reducing hardware needs.
Support for QoS
VLANs facilitate traffic prioritization for VoIP and video applications.
Subnets allow traffic shaping and bandwidth management per segment.
Best Practice: Combine VLANs and Subnets
VLANs and subnets are not mutually exclusive. Combining them provides secure, scalable, and efficient segmentation:
Use VLANs for Layer 2 segmentation: Logical grouping for functions and security.
Use Subnets for Layer 3 segmentation: IP addressing, routing, and policy management.
Follow the 1:1 rule: One VLAN per subnet simplifies routing and security while maintaining clear traffic boundaries.

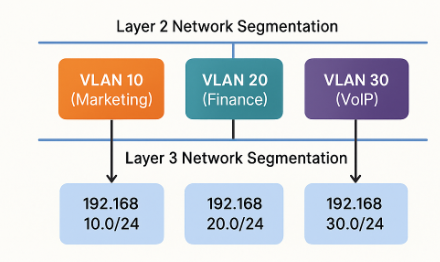

Example:
VLAN 10 (Marketing) → Subnet 192.168.10.0/24
VLAN 20 (Finance) → Subnet 192.168.20.0/24
VLAN 30 (VoIP) → Subnet 192.168.30.0/24
This structure ensures effective segmentation while keeping the network easy to manage and expand.
FAQ: VLAN vs Subnet
Q1: How many subnets are in one VLAN? Best practice is one subnet per VLAN for clarity and security, though technically, multiple subnets can exist within one VLAN using advanced configurations.
Q2: When should I use a VLAN? Use VLANs to:
Segment traffic by department or function.
Reduce broadcast domains.
Improve security and manageability.
Apply QoS policies for critical applications like VoIP.
Q3: Is a VLAN the same as a subnet? No. VLANs operate at Layer 2 to segment broadcast domains, while subnets operate at Layer 3 to manage IP addressing and routing. They are often used together in a 1:1 mapping.
Q4: What are the three types of VLANs? 1. Default VLAN: Typically VLAN 1; initial assignment for all switch ports. 2. Data VLAN: Carries user traffic. 3. Management VLAN: Dedicated for switch/router management. You may also encounter Voice VLANs and Native VLANs in advanced configurations.
Ready to Optimize Your Business Network?
Implementing VLANs and subnets effectively requires robust networking hardware:
Managed Ethernet Switches: For VLAN configuration and logical Layer 2 segmentation.
Network Routers: For Layer 3 routing between subnets and inter-VLAN traffic.
Firewalls: For advanced security across network segments.
