Selecting the Best SFP Modules for Long-Distance Fiber Links

In enterprise and data center networking, long-distance fiber connectivity is a critical component of modern infrastructure design. Whether connecting campuses, remote buildings, or metro-scale environments, selecting the correct SFP (Small Form-factor Pluggable) module directly impacts link stability, signal integrity, and overall network performance.

However, many deployment issues—such as link flapping, high bit-error rates, or complete link failure—are not caused by fiber infrastructure itself, but by incorrect optical transceiver selection.

This guide provides a structured engineering approach to selecting SFP modules for long-distance fiber links, combining optical theory, real-world deployment considerations, and procurement best practices.

• Part 1: Single-Mode vs Multimode: The Foundation of Fiber Design
• Part 2: LR vs ER vs ZR: Choosing the Right Optical Class
• Part 3: Optical Budget: The Most Important Engineering Metric
• Part 4: Compatibility and DOM/DDM Telemetry Challenges
• Part 5: Procurement Strategy and Supply Chain Reliability
• Part 6: Practical Deployment Example
• Part 7: SFP Selection Checklist for Long-Distance Links
• Part 8: Conclusion

Part 1: Single-Mode vs Multimode: The Foundation of Fiber Design

A correct SFP selection always starts with understanding fiber type.

SR (Short Range – Multimode Fiber)

• Wavelength: 850nm
• Fiber type: Multimode Fiber (MMF)
• Typical range: ~300m (OM3), ~400m (OM4)

SR modules are commonly used for intra-data center or short rack-to-rack connections.

A key limitation is modal dispersion, where multiple light paths cause signal distortion over distance.

Single-Mode Fiber (SMF)

Single-mode fiber eliminates modal dispersion by allowing light to travel in a single path through a ~9-micron core.

It is required for all long-distance enterprise and metro deployments.

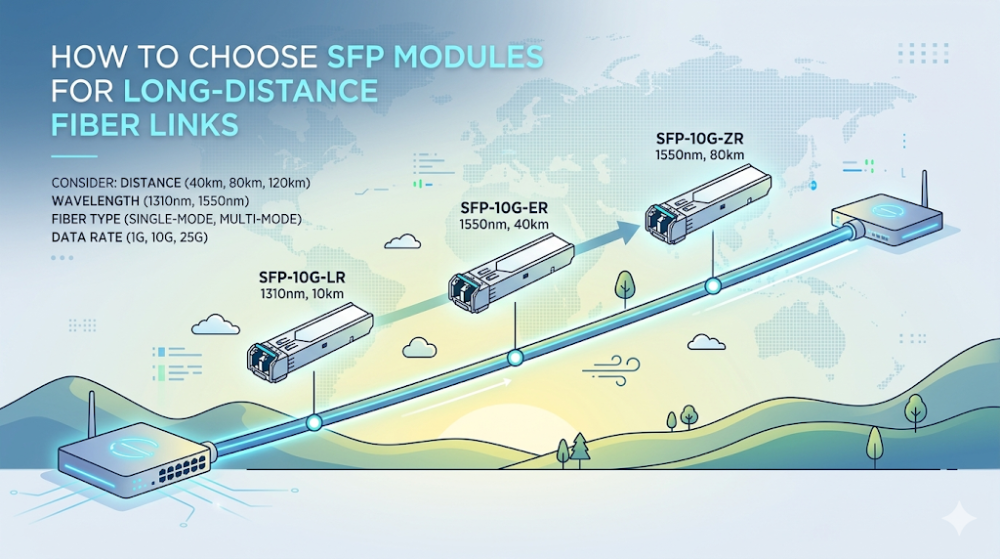

Part 2: LR vs ER vs ZR: Choosing the Right Optical Class

LR (Long Reach)

• 1310nm wavelength
• Up to 10km distance
• Standard for campus interconnects

ER (Extended Reach)

• 1550nm wavelength
• Up to 40km distance
• Uses higher optical power (EML laser)

ZR (Extreme Reach)

• 1550nm wavelength
• Up to 80km+
• Uses high-sensitivity APD receivers

Engineering Warning: High-power ER and ZR modules can damage receivers if used on short links without proper attenuation.

Part 3: Optical Budget: The Most Important Engineering Metric

Many network failures occur because engineers rely only on labeled distance ratings.

The correct approach is optical budget calculation.

Optical Budget = Tx Power (min) − Rx Sensitivity (min)

Key loss factors

• Fiber attenuation: ~0.35 dB/km (SMF)
• Connector loss: 0.2–0.5 dB per pair
• Splice loss: ~0.1 dB per splice

A safety margin of 3–5 dB should always be included for aging and environmental variation.

If total loss exceeds the optical budget, the link will fail even if distance is within specification.

Part 4: Compatibility and DOM/DDM Telemetry Challenges

SFP modules include an EEPROM-based management system accessed via I2C.

This enables DOM/DDM (Digital Optical Monitoring), which provides real-time telemetry including optical power, temperature, and bias current.

However, vendor-specific checksum validation may cause compatibility issues such as:

• “Unsupported transceiver” errors
• Port shutdown events
• Incorrect telemetry readings

In multi-vendor environments, compatibility validation is critical for stable operations.

Part 5: Procurement Strategy and Supply Chain Reliability

Beyond technical correctness, sourcing reliable optical modules is a key operational requirement.

Common risks

• Counterfeit SFP modules
• Incorrect vendor coding
• Unstable inventory availability

To reduce procurement uncertainty, teams often use real-time visibility tools for pricing and stock availability. For example:

IT-Price helps compare optical transceiver availability across multiple vendors before procurement decisions.

For enterprise deployments requiring verified multi-brand compatibility and stable sourcing, suppliers like Router-switch provide validated optical modules with consistent availability.

Part 6: Practical Deployment Example

A campus network initially used SR modules for inter-building connectivity, resulting in unstable links due to distance limitations.

After migrating to LR single-mode SFP modules:

• Link stability improved significantly
• Packet loss was eliminated
• Network performance became consistent

This shows that incorrect SFP selection is often the root cause of instability, not fiber infrastructure.

Part 7: SFP Selection Checklist for Long-Distance Links

• Correct fiber type (MMF or SMF)
• Distance class (SR/LR/ER/ZR)
• Optical budget validation
• Vendor compatibility and DOM/DDM support
• Supply chain reliability

Part 8: Conclusion

Selecting SFP modules for long-distance fiber links requires a combination of optical physics, system design, and procurement strategy.

By properly evaluating fiber type, optical budget, compatibility, and supply reliability, network engineers can build stable and scalable enterprise fiber infrastructures.
