How to Read Cisco 9300 Indicator Lights (With Troubleshooting Tips)
Selene Gong

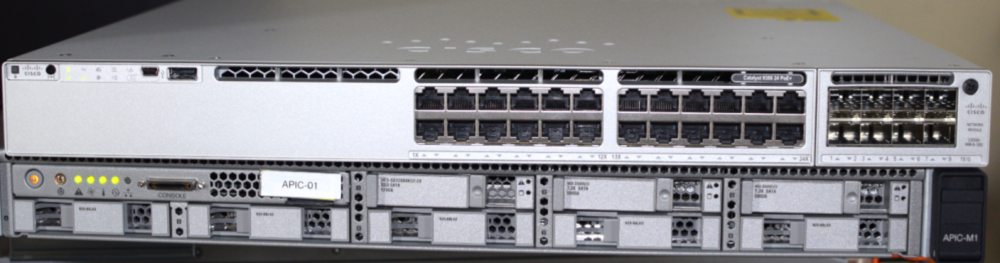

Cisco Catalyst 9300 switches use a series of indicator lights (LEDs) to provide real-time visual feedback about the switch’s operational status, port activity, power supply, and stacking health. Correctly interpreting these Cisco 9300 indicator lights helps network engineers and administrators quickly identify issues and ensure reliable network performance without needing to log into the command-line interface. This guide explains the meaning of each LED color and status, along with practical troubleshooting tips.
What Are Cisco 9300 Indicator Lights?
The Cisco 9300 indicator lights provide immediate visual feedback on the operational status, port activity, power delivery, and stacking configurations of your Catalyst 9300 switches. Understanding these LED signals helps network engineers and IT admins quickly assess the health of your network without logging into the CLI, enabling faster troubleshooting and efficient monitoring.
Cisco 9300 LED Status Indicators Explained
Below is a clear breakdown of key Cisco 9300 indicator lights and what they mean:
Port Status (STAT)
Off: No link or administratively shut down. Check cabling and interface status.
Green: Link present, no activity.
Blinking Green: Normal data activity, including minimal control traffic.
Alternating Green-Amber: Link fault (e.g., CRC errors, collisions).
Amber: Port blocked by STP, not forwarding data.
Blinking Amber: STP blocked, receiving control frames.
Alternating Green-Amber: Power denied (insufficient power budget).
Blinking Amber: PoE+ fault or non-compliant cabling/device.
Amber: PoE+ administratively disabled.
System LED (SYST)
Off: Switch not powered on.
Green: Operating normally.
Blinking Green: Booting or upgrading firmware.
Amber: Fault (fan, POST failure, over-temperature).
Stack LEDs
ACTV:
Off: Not active or standalone.
Green: Active in stack or standalone.
Blinking Green: Standby in stack.
Amber: Stack election or stack error.
STACK: Indicates member position during stack mode, blinking green on the corresponding port LED when identified.
StackPower (S-PWR)
Off: Cable disconnected or standalone.
Green: Healthy StackPower ring.
Blinking Green: Open ring detected.
Amber: Fault (load shedding, defective cable).
Blinking Amber: Insufficient power budget.
Fan and Beacon LEDs
Fan:
Off: No power.
Green: Normal.
Amber: Fan fault.
Beacon (UID): Solid Blue: Activated for physical identification.
Console and Management LEDs
USB Console: Green = active, Off = inactive.
RJ-45 Console: Green = active, Off = inactive.
Management Port: Green = link up, Blinking Green = activity, Off = down.
Cisco 9300 LED Status Indicators Table
Type
Color
Meaning
Action
STAT
Green/Blinking
Link and activity status
Normal unless link is down
SPEED
Green/Flashing
Port speed (100Mb/1Gb/Multigigabit)
Verify as needed
DUPLX
Green
Full duplex
Desired state
PoE+
Green/Amber Variations
Power delivery status and faults
Check PoE budget and cabling
SYST
Green/Blinking/Amber
System operational status
Check fans, POST logs, power supplies
STACK
Green/Blinking/Amber
Stack member role and errors
Check stacking cables, configuration
S-PWR
Green/Blinking/Amber
StackPower health and faults
Check power stacking connections
Fan
Green/Amber
Fan health
Replace faulty fans if needed
Beacon
Solid Blue
Physical identification active
Deactivate when no longer needed
Common Troubleshooting Tips
Port LED Off: Check that the port is not administratively shut down and that cabling is connected securely.
Fast Blinking Green on Ports: Normal on Catalyst 9300 switches, indicating any activity including minimal control traffic. Does not imply high utilization or storm.
Amber System LED: Indicates a fault (fan, power supply, POST failure). Check modules and logs, and contact Cisco support if persistent.
PoE+ Issues (Blinking Amber): Verify device compatibility, PoE power budget, and replace non-compliant cables if faults persist.
StackPower or Stack LED Amber: Check stacking cables, power budget, and stack configurations. Re-seat cables and review stack election if needed.
FAQs About Cisco 9300 Indicator Lights
Q1: What do fast blinking green Cisco 9300 indicator lights mean?
Fast blinking green on Catalyst 9300 ports indicates data activity, including minimal control traffic. This is normal and does not imply congestion.
Q2: Why is my Cisco 9300 system LED amber?
An amber system LED indicates a system fault (fan, power, POST failure, or high temperature). Check system logs and hardware immediately.
Q3: Can I use the Cisco 9300 stack LED to identify switches in a stack?
Yes, pressing the Mode button cycles the STACK LED, blinking the corresponding port LED to indicate each stack member’s number.
Q4: Are Cisco 9300 indicator lights different for Meraki-managed models?
Yes, Meraki-managed Catalyst 9300 models may use LEDs for additional cloud connectivity and provisioning statuses. Refer to Meraki documentation for details.
Q5: What should I do if PoE+ LEDs show faults on a Cisco 9300?
Check your power budget, connected devices, and cabling for PoE+ compliance. Clear faults by disconnecting non-compliant devices or increasing power capacity.
Conclusion
Understanding Cisco 9300 indicator lights enables quick and effective troubleshooting, ensuring your network runs smoothly without unnecessary downtime. For more detailed configuration guides, hardware options, and support, visit router-switch.com.
