How to Download and Upgrade Cisco Switch Firmware?

Cisco switch firmware upgrade Cisco IOS upgrade

Author: Selene Gong

TL;DR: Upgrading Cisco switch firmware is essential for performance, security, and new features. You download the firmware from Cisco’s official site (requires account), prepare your device by backing up configs and ensuring sufficient flash space, then upgrade via CLI (using TFTP/FTP or USB) or web GUI depending on the model. Always verify firmware integrity before upgrading and backup your configuration to prevent data loss.

Firmware controls the core operation of Cisco switches. Known as Cisco IOS or IOS-XE, it is the embedded software enabling the switch to process traffic, enforce policies, and communicate. Firmware upgrades fix bugs, patch security vulnerabilities, add new features, and improve overall stability and performance.

Regular firmware upgrades ensure your network devices remain reliable and secure. This guide walks you through what Cisco switch firmware is, why and when to upgrade, how to download firmware files, preparation steps, detailed upgrade methods, and answers common FAQs.

What is Cisco Switch Firmware?

Firmware is a low-level software stored on hardware, here specifically Cisco IOS or IOS-XE that runs on switches. It manages hardware functions and network protocols.

Why Upgrade Cisco Switch Firmware?

Upgrading firmware is important to:

Improve Performance: Optimize device operations and forwarding efficiency.
Enable New Features: Cisco adds features and enhancements with updates.
Fix Bugs: Resolve known software issues causing instability or errors.
Patch Security Vulnerabilities: Protect against exploits and attacks.
Fix Connectivity Issues: Solve problems like dropped packets or slow connections.

How to Download Cisco Switch Firmware?

Follow these steps:

Go to Cisco Support & Downloads.
Search your switch model number (e.g., Catalyst 9300, Cisco 250 series).
Select the appropriate software release and recommended stable image.
Log in or create a free Cisco account if prompted.
Accept license agreements.
Download the firmware image file (usually .bin or .SPA.bin).
Verify the file checksum (MD5 or SHA256) matches Cisco’s published value to ensure integrity.

Preparing for Cisco Firmware Upgrade

Check Current Version: Use show version to see your current firmware.
Check Flash Space: Run dir flash: to ensure enough free space (typically at least 25 MB).
Backup Configuration: copy running-config startup-config and optionally backup to a TFTP server: copy running-config tftp:///
Console Access: Connect via serial console cable using PuTTY or similar, set to correct COM port.
Set Up TFTP/FTP Server: If using network transfer, ensure server is reachable from switch, firewall allows UDP 69 (TFTP) or FTP ports.
Review Upgrade Path: For major version jumps, check Cisco documentation for required intermediate upgrades.
Verify Firmware Integrity: Confirm checksum of downloaded firmware matches Cisco’s published hash.

Methods to Upgrade Cisco Switch Firmware

Method	Description	Supported Models	Key Notes
CLI + TFTP/FTP	Transfer firmware to flash via TFTP/FTP, set boot system, reload	Catalyst 3750, 3850, 9300, 9200, 9500	Requires console access, firewall & server setup
CLI + USB	Copy firmware from USB flash drive, install via CLI commands	Catalyst 3850 and newer in install mode	Switch must be in install mode
Web-based GUI	Upload firmware through switch web interface and reboot	Cisco Business Series (Sx250, Sx350, SG350X)	Simple GUI method, suitable for smaller switches

Step-by-Step: Upgrade Firmware via CLI (TFTP/FTP)

This method is common for many Cisco Catalyst and enterprise switches.

Connect to switch console with PuTTY.
Enter privileged mode:
```
enable
```
Check current version and flash space:
```
show version
dir flash:
```
Backup configuration:
```
copy running-config startup-config
```
Upload firmware to TFTP/FTP server root directory.
Copy firmware from server to switch flash:
```
copy tftp:/// flash:
```
or
```
copy ftp:/// flash:
```
Verify firmware integrity (optional):
```
verify /md5 flash:
```

Configure boot system to new image:

configure terminal
no boot system
boot system flash:
end

Save configuration:
```
write memory
```
Reload switch:
```
reload
```
Confirm new firmware version post reboot:
```
show version
```

Step-by-Step: Upgrade Firmware via Web GUI

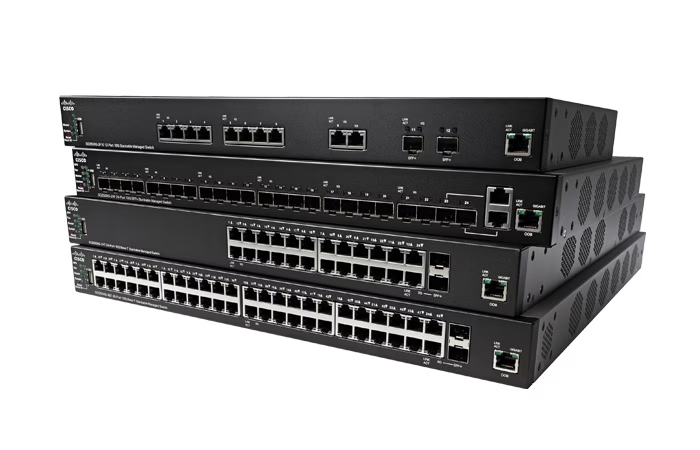

This method is commonly used for Cisco Business series switches (e.g., Sx250, Sx350, SG350X, Sx550X).

Access switch web interface by IP address.
Navigate to Administration > File Management > Firmware Operations.
Select Update Firmware.
Choose upload method: HTTP/HTTPS or USB.
Select the downloaded firmware file.
Click Apply and wait for upload to complete.
Reboot switch via Administration > Reboot and confirm.
Verify firmware version in Firmware Operations.

Frequently Asked Questions (FAQs)

Q1: What is firmware upgrade and why is it important for my Cisco switch?

Firmware upgrade updates the switch’s IOS software, improving performance, fixing bugs, adding features, and patching security flaws.

Q2: How often should I upgrade Cisco switch firmware?

Upgrade when Cisco releases critical updates or new features relevant to your environment. Regularly check Cisco release notes.

Q3: Do I need a Cisco account to download switch firmware?

Yes, Cisco requires login for official firmware downloads.

Q4: How do I console into a Cisco switch for an upgrade?

Use a serial console cable connected from the switch’s console port to your PC. Use PuTTY or equivalent terminal software, select the right COM port.

Q5: What should I do before upgrading Cisco switch firmware?

Backup configs, check free flash space, verify downloaded firmware integrity, and ensure console/TFTP/FTP access.

Conclusion

Firmware upgrades are vital for maintaining Cisco switch stability, security, and feature set. Proper preparation—backup, verifying space and file integrity—and choosing the appropriate upgrade method help ensure smooth upgrades. Always review Cisco’s official documentation and release notes for your specific switch model.
