How Many Cisco Switches Can You Stack? A Comprehensive Guide

TL;DR: Most Cisco Catalyst switches support stacking up to 8 switches (9 for 3750-X). Stacking enables unified management, scalability, and redundancy but requires model compatibility, dedicated stack cables, and careful design to avoid bottlenecks.

Switch stacking allows you to connect multiple Cisco switches into a single logical unit using dedicated stacking ports and cables, enabling unified management while distributing data forwarding across all stack members.

For Cisco Catalyst switches, the typical maximum is 8 switches per stack, while older models like the 3750-X can stack up to 9. Understanding these limits and compatibility considerations is essential for scalable, resilient network design.

What Is Switch Stacking?

Switch stacking connects multiple physical switches to operate under a single management and control plane while sharing forwarding responsibilities. It simplifies operations, increases port density, and enables incremental capacity expansion without redesigning your network.

Key Benefits of Switch Stacking

• Simplified Management: Manage all stack members as one device.
• High Availability: A standby switch takes over if the active switch fails.
• Scalability: Add ports incrementally by adding switches.
• Increased Bandwidth: High-speed backplane for inter-switch traffic.
• Optimized Performance: Distributed data plane enables line-rate forwarding.

Cisco Catalyst Switch Stack Limits Comparison

Switch Model	Max Stack Size	Stacking Technology	Max Stack Bandwidth	Notes
Catalyst 9300X	8	StackWise-1T	1 Tbps	Mixed stacking with 9300 modular supported
Catalyst 9300 (modular)	8	StackWise-480	480 Gbps	Mixed stacking with 9300X runs at 480 Gbps
Catalyst 9300L (fixed)	8	StackWise-320	320 Gbps	Cannot stack with 9300X or modular 9300
Catalyst 3750-X	9	StackWise	32 Gbps	Older, supports up to 9 in a data stack
Cisco Meraki MS Series	8	Physical stacking	Varies	Model-dependent stacking compatibility

Technical Considerations and Limitations

• Stacking Bandwidth: High, but ring topology can bottleneck in large stacks.
• Management Latency: Large stacks may experience slight command delays.
• Single Logical Failure Domain: Affects the entire stack if an issue occurs.
• Software Homogeneity: All members must run compatible firmware versions.
• Physical Constraints: Cable lengths limit physical layout flexibility.

When to Use Switch Stacking

• Access layer needing high port density with simplified management.
• Campus or branch networks requiring scalable expansion.
• Environments demanding high availability with minimal complexity.

When to Avoid or Be Cautious

• Core layer environments requiring maximum throughput isolation.
• Where risk from a single failure domain is unacceptable.
• Physical layout constraints limiting cable routing.

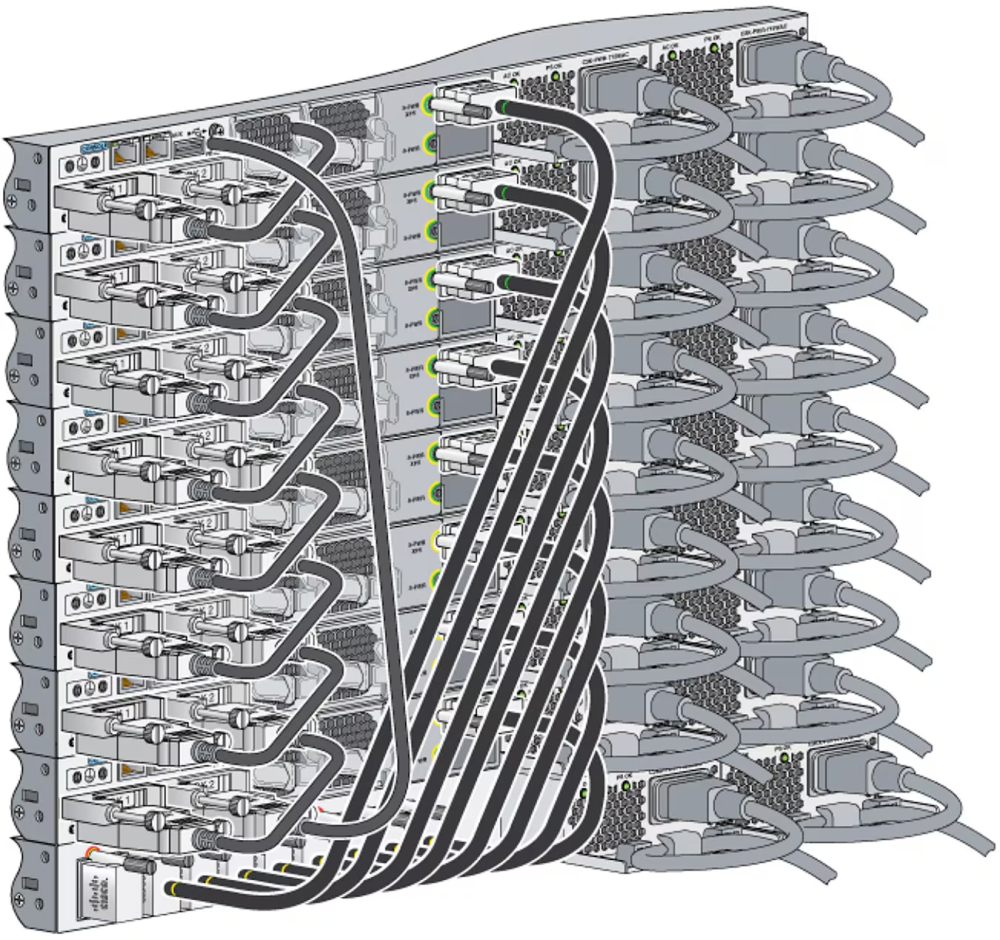

Stack Cable and Connectivity Tips

• Use dedicated Cisco stacking cables (0.5m, 1m, 3m) for reliability.
• Power off switches before connecting or removing stack cables.
• Ensure secure connections to prevent unintentional disconnections.
• Maintain full ring topology for redundancy.

Conclusion

For most Cisco Catalyst switches, you can stack up to 8 switches in a single stack, while the older Catalyst 3750-X can stack up to 9. Knowing these stacking limits and best practices allows you to build a scalable, reliable network while simplifying management and expanding your infrastructure efficiently.

Ready to expand your network with Cisco switch stacking? Visit router-switch.com for stacking modules, cables, and expert guidance for your deployment.

FAQ

Q1: Does stacking affect performance?

Stacking maintains high performance with distributed forwarding but may introduce minor management latency in large stacks due to ring topology.

Q2: Can Catalyst 9300L stack with 9300 modular or 9300X?

No, 9300L models cannot stack with modular 9300 or 9300X models due to hardware differences.

Q3: How many Cisco switches can you stack together?

Up to 8 switches for most Catalyst models, and up to 9 for older models like the Catalyst 3750-X.

Q4: Does stacking provide redundancy?

Yes, stacking uses a ring topology to reroute traffic if a cable or member fails, ensuring high availability within the stack.

Q5: Do you need special cables for Cisco stacking?

Yes, Cisco stacking requires dedicated stack cables of appropriate length for stable and redundant connections.
