Ethernet Switch vs Router: Key Differences, Use Cases & How to Choose for Your Network
Selene Gong
Understanding the difference between an Ethernet switch and a router is critical for designing a stable and scalable network, whether at home or in an enterprise environment. While both devices manage data flow in a network, they serve fundamentally different purposes at different OSI layers. This guide explains their core functions, compares use cases, and helps you choose the right solution for your networking needs.
What Is an Ethernet Switch?
An Ethernet switch operates at Layer 2 (Data Link layer) of the OSI model. It connects multiple devices (like PCs, printers, or IP phones) within the same local area network (LAN) and forwards traffic based on MAC addresses.
Key Functions:
Learns and builds a MAC address table
Forwards frames to destination ports based on MAC addresses
Can support VLANs and QoS features
Available in unmanaged, smart, or fully managed variants
Enterprise-grade switches can even operate at Layer 3 (routing), but most basic Ethernet switches do not support IP routing.
What Is a Router?
A router operates primarily at Layer 3 (Network layer) and is used to connect different networks together—for example, your home network to the internet via your ISP.
Key Functions:
Assigns IP addresses via DHCP
Forwards packets based on IP addresses
Performs Network Address Translation (NAT)
Provides firewall and VPN capabilities
Acts as a gateway between LAN and WAN
Most consumer-grade routers today are multi-functional devices that combine routing, wireless access point, and basic switching functions.

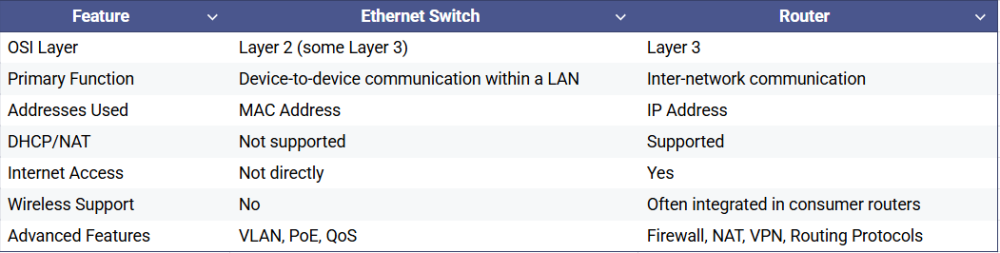

What Is the Difference Between a Switch and a Router?
Can an Ethernet Switch Be Used as a Router?
No, a basic switch cannot function as a router. It lacks IP routing, NAT, DHCP, and gateway functionalities. However, some Layer 3 switches can handle static routing and limited Layer 3 functions, mostly within enterprise networks.
For internet access, a router is still required to manage WAN connections and perform gateway-level functions.
Is an Ethernet Switch Better Than a Router?
It depends on the context:
In LAN scenarios: A switch is better at efficiently handling device-to-device traffic.
For internet access: A router is essential.
In large networks: Both are required—routers manage external communication; switches handle internal traffic and segmentation.
So rather than asking which is "better," consider what you need to accomplish.
Common Network Setup: Switch and Router Together
In most networks, the setup looks like this:
Internet ↔ Router ↔ Switch ↔ End Devices
Router connects to the ISP and handles IP routing, NAT, and DHCP.
Switch extends LAN ports for multiple devices, enabling high-speed internal communication.
Use Cases: When to Use a Switch or a Router
Home Network:
Use an all-in-one wireless router
Add a switch only if more LAN ports are needed
Small Business:
Use a router with firewall and VPN features
Add a managed switch for VLANs and QoS
Enterprise:
Use a core router for WAN access
Deploy multiple managed Layer 2 or Layer 3 switches for scalability, PoE, and segmentation
What Are the Disadvantages of Ethernet Switches?
While switches are essential for LAN performance, they come with limitations:
No NAT, DHCP, or firewall (unless it's a Layer 3 switch with extra config)
Cannot connect directly to ISP for internet
More complex to manage when using VLANs or spanning tree in large topologies
Layer 3 switches can be costly and may still lack full routing protocol support
Final Recommendation
If you are connecting multiple devices within a single LAN, an Ethernet switch is ideal.
If you are connecting to the internet or bridging different networks, a router is essential.
In most setups, you will need both for optimal performance and scalability.
FAQ: Network Switch vs Router
Q1. Is an Ethernet switch better than a router?
Not necessarily. A switch is better for LAN traffic; a router is essential for WAN/internet access. Each serves a different purpose.
Q2. Can an Ethernet switch be used as a router?
No. A typical switch can't assign IP addresses or route between networks. Layer 3 switches can do limited routing but aren't full router replacements.
Q3. What is the difference between a switch and a router?
A switch forwards traffic within a LAN using MAC addresses. A router connects different networks using IP addresses and can provide internet access, NAT, and security.
Q4. What are the disadvantages of Ethernet switches?
Lack of NAT, DHCP, and routing functions; can’t directly connect to the internet; more complex VLAN configurations in large networks.
