Choice depends on network type: Enterprise → IOS XE; Service Provider → IOS XR.
Cisco provides multiple operating systems for modern networks, each tailored to different hardware platforms and deployment scenarios. While classic Cisco IOS remains widely known, many enterprises and service providers adopt IOS XE or IOS XR to leverage improved modularity, high availability, and advanced features. This article explains their differences, architectures, use cases, and practical guidance to help network engineers select the right OS. We also touch on other Cisco OS variants like IOL, IOSv, and NX-OS where relevant.
Part 1: Cisco IOS XE – Features, Architecture, and Use Cases
Cisco IOS XE is an evolution of classic IOS, designed to combine familiar commands with a modern, modular architecture. It provides enterprise networks with high availability and faster service deployment while maintaining stability and scalability.
Definition & Characteristics
Runs as a system daemon on Linux, abstracting system functions into separate processes.
Supports multi-core workload balancing and fault isolation, preventing a single process from crashing the system.
Most configuration commands are similar to classic IOS.
Uses a universal image for routing, switching, VoIP, and security services.
Running Platforms
ASR 1000 series routers
Catalyst switches and other enterprise routing platforms
Core Advantages
Modular and robust, preventing full system failures from rogue processes
High availability: nonstop forwarding and stateful switchover
Faster service deployment through modular architecture
Practical Scenario: Enterprise Edge Deployment with VoIP and Security
Imagine a large enterprise with multiple branch offices that require stable voice services (VoIP) and secure networking. IOS XE is ideal here:
Scenario: Enterprise edge routers using ASR 1000 series at branch office gateways.
High availability features like Nonstop Forwarding (NSF) and Stateful Switchover (SSO) ensure minimal downtime for VoIP.
Linux-based modular processes mean a faulty minor process won’t crash the entire router, ensuring robust 24/7 operation.
Part 2: Cisco IOS XR – Key Features and Architecture
Cisco IOS XR is engineered for large-scale service provider networks. Its microkernel architecture and process isolation provide unmatched reliability and scalability for carrier-grade deployments.
Definition & Characteristics
QNX microkernel ensures fault isolation and system reliability
Processes run in independent memory spaces, preventing cascading failures
Transactional configuration model: changes must be committed to take effect; supports rollback and commit confirmed
Packet-based software distribution allows selective feature deployment
Supports In-Service Software Updates (ISSUs) and web-based GUI management
Running Platforms
CRS routers, ASR 9000/2000 series
Core/backbone networks for service providers
Core Advantages
Superior stability with microkernel design
High scalability for large networks
Advanced software management with ISSUs and selective feature packages
Practical Scenario: Service Provider Backbone with ISSU
Scenario: Large ISP backbone routers (CRS or ASR 9000 series).
Critical software updates can be applied while routers continue forwarding traffic, using ISSU.
QNX microkernel provides isolated processes, allowing selective feature activation and high stability.
This design provides improved high availability and scalable architecture for critical services.

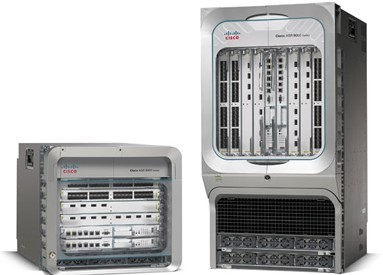

Part 3: Cisco IOS XE vs IOS XR – Detailed Comparison
Feature
Cisco IOS XE
Cisco IOS XR
Kernel Architecture
Linux-based, modular daemons
QNX microkernel, isolated processes
Target Environment
Enterprise, edge, access networks
Service provider, carrier-grade networks
Supported Platforms
ASR 1000, Catalyst switches
CRS, ASR 9000/2000
Configuration Style
Immediate changes
Transactional (commit, rollback)
High Availability
Nonstop forwarding, stateful switchover
ISSUs, advanced HA
Software Management
Universal image
Packet-based software distribution
Management Interface
CLI
CLI + Web GUI
Stability
Improved over classic IOS
Highly reliable, strong process isolation
Part 4: Other Cisco OS & FAQ
Q1: What is the difference between IOS XE and XR? See Part 3 for architecture, HA, and configuration differences.
Q2: What is Cisco IOS XE used for? Enterprise and edge routers; ASR 1000 series, Catalyst switches; routing, switching, VoIP, and high availability.
Q3: What does Cisco IOS XR stand for? XR = eXtensible Routing, highlighting modular, scalable architecture.
Q4: Which features/protocols are common across IOS XE, IOS XR, and NX-OS? High availability mechanisms, process/service isolation, modular/extensible architecture.
Q5: What is the difference between IOL, IOS, and IOSv? IOL/IOSv: virtualized IOS for labs; IOS: classic monolithic, hardware-based.
Q6: Is IOS XE better than IOS XR for enterprises? IOS XE generally suits enterprise networks; IOS XR is optimized for carrier-grade networks.
Q7: Can IOS XR run in a lab? Lab deployments are uncommon due to hardware requirements.
Q8: Can IOS XE handle core routing? Yes, for mid-sized cores and enterprise backbones; large carrier-grade cores favor IOS XR.
Q9: Does IOS XR support Catalyst switches? No, primarily designed for CRS/ASR series.
Q10: Difficulty of upgrading IOS XE vs IOS XR? IOS XE upgrades simpler; IOS XR uses ISSU for zero-downtime upgrades in critical networks.
Part 5: Choosing the Right Cisco OS
Enterprise/Campus Networks: IOS XE
Service Provider/Carrier Networks: IOS XR
Lab/Certification Study: IOSv/IOL
Explore Catalyst (IOS XE) and ASR/NCS (IOS XR) hardware with real-time stock, pricing, global shipping, warranty, and professional support at router-switch.com.
Part 6: Conclusion
Cisco IOS XE and IOS XR serve different network demands. IOS XE is Linux-based and enterprise-friendly, while IOS XR is QNX microkernel and carrier-grade. Understanding architecture, high availability, and configuration models ensures informed OS selection for your network environment.
