Cisco 9200 Switch Port Numbering and Stacking Guide
Selene Gong
Cisco 9200 switch ports are numbered using the logical CLI format TypeX/Y/Z, allowing precise mapping to physical labels for clear configuration and troubleshooting. In this structure:
X = Switch number in the stack (1–8)
Y = Module or slot number (0 for built-in, 1 for network modules)
Z = Physical port number on that module or slot
For example, GigabitEthernet3/0/1 refers to the first built-in Gigabit port on switch 3 in the stack. Understanding this system ensures accurate VLAN, PoE, and EtherChannel configurations in Cisco 9200 deployments.
What Is Cisco 9200 Switch Port Numbering?
Cisco 9200 switch port numbering is a structured logical system used for managing physical interfaces in CLI and monitoring environments. The Cisco Catalyst 9200 Series supports StackWise-160/80 stacking (up to 8 switches), forming a unified control and management plane across your access layer.
The key part of this numbering:
X identifies which physical switch in the stack owns the port.
This allows clear mapping for VLAN assignments, port security, EtherChannel configurations, and efficient troubleshooting.
CLI Logical Mapping vs. Physical Labels
While front panels display physical labels (Port 1, Port 2, etc.), the CLI references the logical interface ID with TypeX/Y/Z. For Cisco 9200 switches, this structure is consistent across models, including PoE and Multigigabit variants.

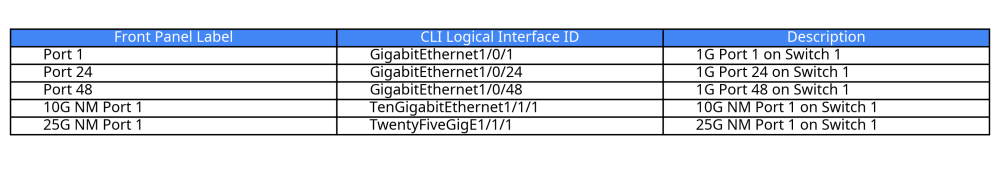

Example: Physical to CLI Mapping (Switch 1)
Key Facts:
Numbering persists after reboots.
Stack numbers (X) can be changed using switch renumber, requiring a reload.
Removing a stack member does not change other members’ numbering.
How to Check Cisco 9200 Switch Port Numbering
You can use CLI commands to verify the port numbering and stack member details:
List stack members:
show switch
Check a specific port’s status:
show interface GigabitEthernet1/0/1
List all ports with status:
show interfaces status
Check system redundancy:
show redundancy
These commands help align physical cabling with logical configuration and confirm operational status during deployment or troubleshooting.
Both 9200 and 9300 use consistent CLI numbering (TypeX/Y/Z), enabling easy configuration migration, while 2960-X has a simpler approach suited to smaller environments.
Frequently Asked Questions (FAQ)
Q1: How to find the port number on a Cisco switch?
Use:
show interface status
to list all ports with logical IDs, physical status, VLAN, and speed for easy mapping.
Q2: How are network ports numbered on Cisco switches?
Ports follow TypeX/Y/Z:
X: Stack member number
Y: Module (0 for built-in)
Z: Physical port number
This ensures consistent configuration across your network.
Q3: What is the Cisco port naming convention?
Cisco uses:
GigabitEthernet / Gi for 1G ports
TenGigabitEthernet / Te for 10G
TwentyFiveGigE for 25G
FortyGigabitEthernet for 40G
Suffixes follow X/Y/Z for stack and module mapping.
Q4: What is the console port on the Cisco 9200L switch?
The Cisco 9200L features:
USB Type-B console port
RJ-45 console port
on the front panel for CLI access and initial configuration.
Q5: How to list all ports on a Cisco switch?
Use:
show interfaces
or
show interfaces status
to display all ports, their operational states, and assignments.
Q6: What does "C9200L 24 ports" mean?
“C9200L-24P” or “C9200L-24T” refers to 9200L models with 24 built-in 1G ports. “L” indicates fixed uplinks; “P” means PoE+ capability.
Q7: How to check Cisco 9200 port details?
Use:
show interface GigabitEthernet1/0/1
(replace ID as needed) to view status, speed, duplex, and error counters.
Final Notes
Mastering Cisco 9200 switch port numbering ensures accurate configuration, simplifies troubleshooting, and helps maintain clear documentation across your deployments. The TypeX/Y/Z format is central to managing VLANs, EtherChannels, and stack expansions efficiently.
