Can You Stack the Cisco Catalyst 9300 with the WS-C2960X?
Selene Gong
When planning network infrastructure, understanding equipment compatibility, especially for core features like stacking, is paramount. For network engineers and system administrators, correctly assessing if devices can be stacked affects design, redundancy, and management complexity. A common question arises regarding the stacking compatibility of different Cisco Catalyst switch series, specifically the modern Cisco Catalyst 9300 and the widely deployed WS-C2960X.
Can Cisco 9300 Stack with WS-C2960X?
No, Cisco Catalyst 9300 Series switches cannot be directly stacked with Cisco Catalyst WS-C2960X switches. This is due to fundamental differences in their underlying hardware, Application-Specific Integrated Circuits (ASICs), and, most importantly, their proprietary stacking technologies.
The Cisco Catalyst 9300 Series utilizes advanced stacking technologies such as StackWise-1T, StackWise-480, or StackWise-320, depending on the specific model within the series. These technologies offer high bandwidth, ranging from 320 Gbps up to 1 Tbps (StackWise-1T). In contrast, the Cisco Catalyst 2960X Series, an older generation of fixed-configuration switches, uses StackWise-Plus technology. Cisco explicitly states that Catalyst 9300 Series switches cannot stack with other Catalyst switches, including Catalyst 3850 and 3650 Series. By extension, this incompatibility applies to the Catalyst 2960X Series as well.
Evidence from Cisco community discussions further reinforces this. Users with both Catalyst 9300 and 2960X switches connect them via Port Channels (EtherChannel) for redundancy, rather than attempting direct hardware stacking. This approach demonstrates a workaround for interoperability when direct Cisco 9300 and 2960X stacking compatibility is not possible.
Differences Between Catalyst 9300 and 2960X Stacking Technologies

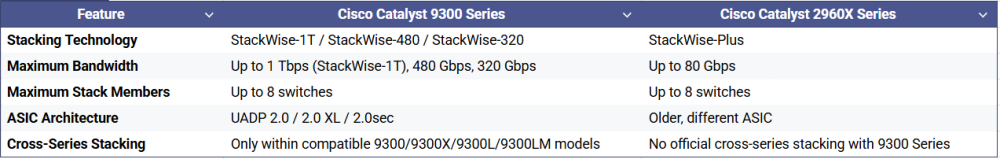

The core reason for the Catalyst 9300 stack with 2960X incompatibility lies in their distinct stacking architectures. The following table highlights the key differences:
The Cisco Catalyst 9300 Series is built on the modern Cisco Unified Access Data Plane 2.0 (UADP) architecture, which provides significant advancements in scale, security, and throughput compared to older Catalyst switches. This advanced ASIC enables higher stacking bandwidths and sophisticated features like line-rate IPsec encryption on some models.
For optimal performance, simplified management, and high availability, it is essential to adhere to Cisco's recommended stacking practices.
Same Series Stacking: Always stack switches from the same Catalyst series and ensure they support the same or compatible StackWise versions. For the Catalyst 9300 Series, this means stacking C9300X SKUs with other C9300X or C9300 SKUs (at StackWise-480 speeds), and C9300L/LM SKUs with other C9300L/LM models.
Dedicated Stacking Cables: Use only Cisco-approved and compatible stacking cables for your specific StackWise technology (e.g., STACK-T1 for StackWise-480/1T, STACK-T3 for StackWise-320).
Benefits of Proper Stacking:
Single Logical Switch: Multiple physical switches operate as a single logical unit, simplifying configuration and management.
Increased Port Density: Combines the ports of all stack members, offering greater density for access layer deployments.
Enhanced Resiliency: Provides features like Stateful Switchover (SSO) and Nonstop Forwarding (NSF), ensuring sub-50-ms failover in case of a stack master failure.
StackPower: Allows power supplies across the stack to be pooled and shared, providing power redundancy and increased power budgets for Power over Ethernet (PoE) devices.
Alternatives if Stacking Is Not Supported
Since direct stacking Cisco 9300 with WS-C2960X is not possible, alternative methods are used to provide redundancy and aggregate bandwidth between these different switch series:
EtherChannel (Port Channel): This is the most common and recommended method for connecting different switch models or stacks to provide both link redundancy and increased bandwidth. You can bundle multiple physical Ethernet links into a single logical link. This method was, in fact, used by a user connecting 2960X switches to a 9300 stack for resilience.
Link Aggregation Control Protocol (LACP): For robust EtherChannel configurations, LACP (IEEE 802.3ad) is generally preferred over Cisco's proprietary PAgP (Port Aggregation Protocol) due to its open standard nature and more comprehensive debugging capabilities.
Layer 3 Routing: If your network design permits, you can configure Layer 3 routing between the Catalyst 9300 stack (acting as a distribution or core layer) and the 2960X switches (typically at the access layer). This provides redundancy at Layer 3 using routing protocols like OSPF or EIGRP, or simply static routes.
VLAN Configuration: Ensure proper VLAN configuration and trunking between the switches to maintain logical separation of traffic and extend VLANs where necessary.
Frequently Asked Questions (FAQs)
Q1: Why can't I stack different Cisco Catalyst switch models like the 9300 and 2960X? A1: Different Cisco Catalyst switch series, such as the 9300 and 2960X, use distinct and incompatible hardware architectures and proprietary stacking technologies (e.g., StackWise-1T/480/320 for 9300 vs. StackWise-Plus for 2960X). This prevents them from forming a single logical stack.
Q2: What happens if I connect a Cisco Catalyst 9300 to a 2960X with stacking cables? A2: Connecting incompatible switches with stacking cables will not result in a functional stack. It could lead to error messages, unstable network behavior, or simply no communication over the stacking ports. They will not recognize each other as valid stack members.
Q3: Can I connect a Cisco Catalyst 9300 and a 2960X for network redundancy? A3: Yes, you can connect them for network redundancy, but not through direct hardware stacking. The recommended method is to use EtherChannel (Port Channel) to bundle multiple physical links between the Cisco Catalyst switch compatibility different series, providing both increased bandwidth and link-level redundancy.
Q4: What are the main benefits of stacking compatible Cisco Catalyst switches? A4: Stacking compatible Cisco Catalyst switches creates a single logical switch, simplifying management, enabling higher port density, and providing a highly resilient architecture with features like Stateful Switchover (SSO) for sub-50-ms failover. It also allows for power sharing via StackPower.
Q5: Are stacking cables universal across all Cisco Catalyst switch series? A5: No, stacking cables are not universal. Different Cisco Catalyst switch series and different StackWise technologies require specific stacking cables. For example, StackWise-1T/480 uses STACK-T1 cables, while StackWise-320 (used by C9300L/LM models) uses STACK-T3 cables.
