Huawei ET1Z04EACC00 S12704 Enhanced Engine AC Bundle

Name: ET1Z04EACC00
SKU: ET1Z04EACC00
Price: 6302 USD
Availability: OutOfStock
Rating: 5 (2 reviews)

Skip to the beginning of the images gallery

Name:	ET1Z04EACC00
Model:	Huawei S12704 Enhanced Engine AC Bundle ET1Z04EACC00 (Including Assembly Chassis1,MPUA Main Board1,SFUC Switch Fabric Unit2,800W AC Power2,Basic Software*1)
Brand:	Huawei
Detail:	Huawei S12704 Enhanced Engine AC Bundle ET1Z04EACC00 (Including Assembly Chassis1,MPUA Main Board1,SFUC Switch Fabric Unit2,800W AC Power2,Basic Software*1)
	Rating: 100% 5/5.0 2 Reviews 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$6,302.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

ET1Z04EACC00

Huawei S12704 Enhanced Engine AC Bundle ET1Z04EACC00 (Including Assembly Chassis*1,MPUA Main Board*1,SFUC Switch Fabric Unit*2,800W AC Power*2,Basic Software*1)

Price: US$6,302.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

ET1Z04EACC00 Overview

ET1Z04EACC00 is the S12704 Enhanced Engine AC Bundle(Including Assembly Chassis*1,MPUA Main Board*1,SFUC Switch Fabric Unit*2,800W AC Power*2,Basic Software*1)

Quick Specs

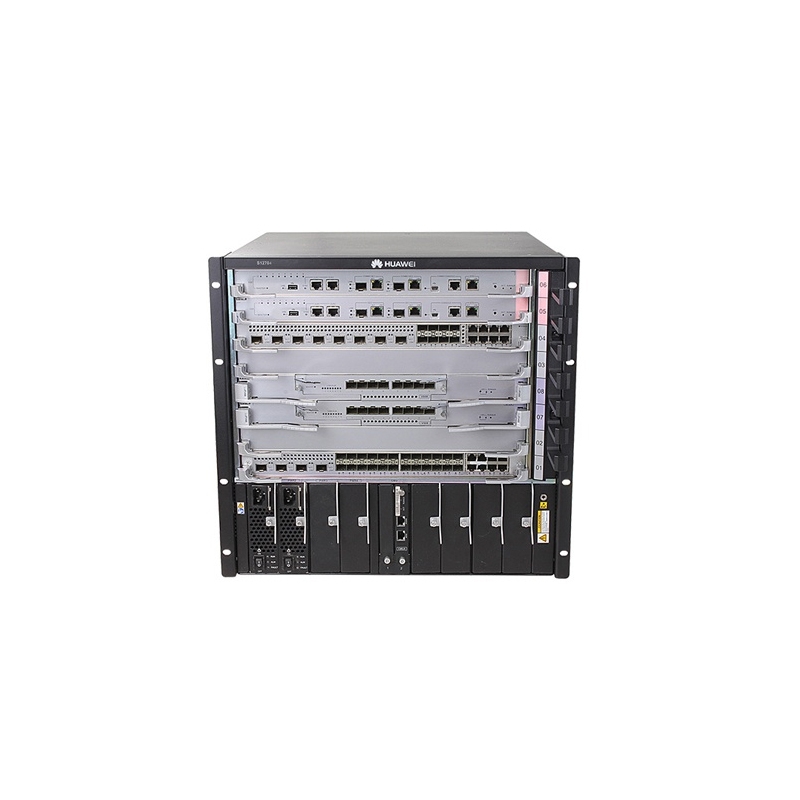

Figure 1 shows the S12704 appearance. ET1Z04EACC00 is its assembly chassis, including cards, modules and units.

Table 1 shows the Quick Specs.

Product Code	ET1Z04EACC00
Packet Forwarding Rates	3,120 Mpps; 4,560 Mpps
Switching Capacity	4.88 Tbit/s; 16.08 Tbit/s
MPU Slots	2
SFU Slots	2
Service Card Slots	4
Energy Saving	Energy Efficient Ethernet (802.3az)
Redundancy Design	MPUs, SFUs, power supplies, and fan modules
Maximum Power Consumption of the Entire Equipment	≤ 2,200W
Installation	The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis.
Dimensions (W x D x H)	With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U)) Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U))
Weight	60 kg (132.3 lb)

Product Details

Figure 2 shows the front structure of the ET1Z04EACC00.

Note:

①	Two MPUs
②	Four service cards, including: ·Open Service Platform Unit ·1000M Interface Card ·GE/10GE Interface Card ·10GE Interface Card ·40GE Interface Card ·100GE Interface Card
③	Two SFUs
④	A pair of mounting brackets
⑤	Four power modules
⑥	Two CMUs
⑦	Front ESD jack
⑧	Cable management frames

·The mounting brackets are used to secure the chassis in a cabinet.
·The ground terminal of an ESD wrist strap can be inserted in the Front ESD jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

Figure 3 shows the rear structure of the ET1Z04EACC00.

Note:

①	Two Fan Module
②	Rear ESD jack
③	JG ground terminal
④	Air filter
⑤	A pair of removable handles

·The ground terminal of an ESD wrist strap can be inserted in the Rear ESD jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.
·The air filter prevents dust from entering the chassis.
·You can install these removable handles on two sides of the chassis to lift the chassis.

The Modules, Cards

Table 2 shows the recommended elements for the ET1Z04EACC00.

Model	Description
FE-SFP optical transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP optical transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ optical transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
40GE CFP optical transceiver
CFP-40G-SR4	High Speed Transceiver CFP-40G-SR4,CFP,40G,Multimode Module(850nm,4*10G,0.1km,MPO)
CFP-40G-LR4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)
CFP-40G-ER4	High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)
40GE QSFP+ optical transceiver
QSFP-40G-eSR4	40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)
QSFP-40G-ER4	40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)
100GE CFP optical transceiver
CFP-100G-SR10	High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
CFP-100G-LR4	CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)
CFP-100G-ER4	High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
100GE interface card
ET1D2C02FEE0	2-Port 100GBASE-X Interface Card(EE,CFP) ET1D2C02FEE0series)
10GE interface card
ET1D2X32SSC0	32-Port 10GBASE-X Interface Card(SC,SFP+)
ET1D2X12SSA0	12-Port 10GBASE-X Interface Card(SA,SFP+)
40GE interface card
ET1D2L08QSC0	8-Port 40GBASE-X Interface Card(SC,QSFP+)
ET1D2L02QSC0	2-Port 40GBASE-X Interface Card(SC,QSFP+)
Centralized monitoring unit
EH1D200CMU00	Centralized Monitoring Board
Cluster switching system unit
EH1D2VS08000	8-Port 10G Cluster Switching System Service Unit (SFP+)
Firewall module
ET1D2FW00S02	NGFW Module C,with HW General Security Platform Software
ET1D2FW00S01	NGFW Module B,with HW General Security Platform Software
GE/10GE interface card
ET1D2S08SX1E	8-Port 10GBASE-X and 8-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
ET1D2S04SX1E	4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card(X1E,RJ45/SFP/SFP+)
Intrusion prevention system module
ET1D2IPS0S00	IPS Module A,with HW General Security Platform Software
Main processing unit
ET1D2MPUA000	S12708/S12712,Main Processing Unit A(Optional clock)
Switch fabric unit
ET1D2SFUD000	S12708/S12712,Switch Fabric Unit D
ET1D2SFUA000	S12708/S12712,Switch Fabric Unit A
Wireless access controller unit
ACU2	WLAN ACU2 Access Controller Unit(128 AP Control Resource Included)
GE interface card
ET1D2T36SEA0	36-Port 10/100/1000BASE-T and 12-Port 100/1000BASE-X Interface Card(EA,RJ45/SFP)
ET1D2G48SX1E	48-Port 100/1000BASE-X Interface Card(X1E,SFP)

Compare to Similar Items

Table 3 shows the comparison of ET1Z04EACC00 and ET1BS12704S0.

Product Code	ET1Z04EACC00	ET1BS12704S0
Description	S12704 Enhanced Engine AC Bundle(Including Assembly Chassis1,MPUA Main Board1,SFUC Switch Fabric Unit2,800W AC Power2,Basic Software*1)	S12704 Assembly Chassis
Packet Forwarding Rates	3,120 Mpps; 4,560 Mpps	3,120 Mpps; 4,560 Mpps(With Necessary Plug-ins)
Switching Capacity	4.88 Tbit/s; 16.08 Tbit/s	4.88 Tbit/s; 16.08 Tbit/s(With Necessary Plug-ins)
MPU Slots	2	2
SFU Slots	2	2
Service Card Slots	4	4
Maximum Power Consumption of the Entire Equipment	≤ 2,200W	≤ 2,200W
Weight(kg)	60 kg	29 kg

Get more information

Do you have any question about the ET1Z04EACC00

Quality Certifications

Specification

ET1Z04EACC00 Specification

Huawei S12704 Enhanced Engine AC Bundle ET1Z04EACC00 (Including Assembly Chassis*1,MPUA Main Board*1,SFUC Switch Fabric Unit*2,800W AC Power*2,Basic Software*1)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What common troubleshooting steps are there for the ET1Z04EACC00?

Common steps include checking power connections, verifying software versions, and examining hardware components for any faults.

What accessories are available for the ET1Z04EACC00?

Available accessories include additional AC power supplies, switch fabric units, and network interface cards.

How does the ET1Z04EACC00 compare with similar products?

The ET1Z04EACC00 stands out due to its integrated components, cost-effectiveness, and superior performance in large network environments.

Is the ET1Z04EACC00 easy to integrate with existing Huawei infrastructure?

Yes, the ET1Z04EACC00 is designed to seamlessly integrate with existing Huawei products, ensuring a unified network architecture.

Learn More

How cost-effective is the ET1Z04EACC00 bundle?

The Huawei S12704 Enhanced Engine AC Bundle ET1Z04EACC00 offers a comprehensive solution with all essential components, providing excellent value for system integrators and distributors.

What are the key features of the ET1Z04EACC00?

The ET1Z04EACC00 includes an assembly chassis, MPUA main board, SFUC switch fabric units, AC power sources, and basic software to ensure optimal performance.

What application scenarios suit the ET1Z04EACC00?

The ET1Z04EACC00 is ideal for large-scale enterprise networks, data centers, and service provider environments requiring high performance and scalability.

How do I install the Huawei S12704 Enhanced Engine AC Bundle?

Follow the installation guide provided by Huawei, ensuring proper assembly of the chassis, MPUA main board, SFUC units, and AC power supplies.

Does the ET1Z04EACC00 require software upgrades?

Yes, periodic software upgrades are recommended to maintain stability, security, and to access new features.

Are there alternative bundles to the ET1Z04EACC00?

Yes, Huawei offers other bundles with different configurations, such as the S12708 or S12710, depending on your needs and capacity requirements.

What common troubleshooting steps are there for the ET1Z04EACC00?

Common steps include checking power connections, verifying software versions, and examining hardware components for any faults.

What accessories are available for the ET1Z04EACC00?

Available accessories include additional AC power supplies, switch fabric units, and network interface cards.

How does the ET1Z04EACC00 compare with similar products?

The ET1Z04EACC00 stands out due to its integrated components, cost-effectiveness, and superior performance in large network environments.

Is the ET1Z04EACC00 easy to integrate with existing Huawei infrastructure?

Yes, the ET1Z04EACC00 is designed to seamlessly integrate with existing Huawei products, ensuring a unified network architecture.
