Name:	DS-9664NI-I8
Model:	DS-9664NI-I8 - Hikvision Ultra NVR
Brand:	Hikvision
Detail:	64-ch 2U 4K NVR
	Rating: 90% 4.5/5.0 2 Reviews
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$1,266.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-9664NI-I8

64-ch 2U 4K NVR

Price: US$1,266.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-9664NI-I8 Overview

Record from and manage up to 64 cameras with the DS-9664NI-I8 64-Channel 12MP 4K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 12MP.

Quick Specs

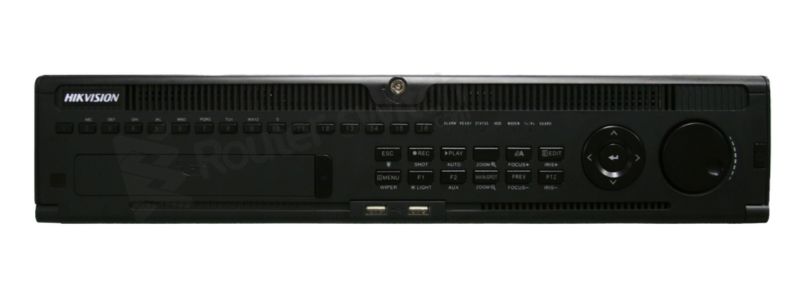

Figure 1 shows the appearance of DS-9664NI-I8.

Table 1 shows the Quick Specs.

Product Code	DS-9664NI-I8
Power supply	100 to 240 VAC, 50 to 60 Hz 200 W
Consumption (without HDD)	≤ 30 W
Dimensions (W × D × H)	445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
IP video input	64-ch Up to 12 MP resolution

Product Details

Figure 2 shows the front panel of DS-9664NI-I8.

Product Features
DS-9664NI-I8 provides these features:

● Up to 64 channel IP cameras can be connected

● Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats

● Up to 12 MP high-definition live view, storage and playback

● Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected

● 2 HDMI (different source) and 2 VGA (different source) interfaces

● 8 HDD can be used for continuous video recording

● Compatible with third-party network cameras

● Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

● Advanced streaming technology enables smooth live view in poor network conditions

● Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Compare to Similar Items

Table 2 shows the comparison of DS-9664NI-I8.

Module

DS-9664NI-I8

DS-9632NI-I16

Power supply

100 to 240 VAC, 50 to 60 Hz 200 W

100 to 240 VAC, 50 to 60 Hz 300 W

Consumption (without HDD)

≤ 30 W

≤ 45 W

Dimensions (W × D × H)

445 × 470 ×90 mm (17.5"× 18.5" × 3.5")

445 × 496 × 146 mm (17.5" × 19.5" × 5.7")

IP video input

64-ch Up to 12 MP resolution

32-ch

Get More Information

Do you have any question about the DS-9664NI-I8?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

Specification

DS-9664NI-I8 Specification

DS-9664NI-I8 Specification
Video and Audio
IP video input	64-ch Up to 12 MP resolution
Video resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Incoming/outgoing bandwidth	320 Mbps or 200 Mbps (when RAID is enabled), 256 Mbps, or 200 Mbps (when RAID is enabled)
VGA1 /HDMI1 output	HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA1 /HDMI1 output	VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA2 /HDMI2 output	1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, 2-ch, RCA (2.0Vp-p, 1 KΩ)
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Decoding
Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Recording resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
Capability	2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Network
Remote connections	128
Network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network interface	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Hard Disk
SATA	8 SATA interfaces
eSATA (optional)	1 eSATA interface
Capacity	Up to 10TB capacity for each HDD
External Interface
Serial port	RS-232; RS-485; Keyboard
Alarm in/out	16/4
USB interface	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Disk Array
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Number of arrays	4
General
Power supply	100 to 240 VAC, 50 to 60 Hz 200 W
Consumption (without HDD)	≤ 30 W
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10 to 90 %
Dimensions (W × D × H)	445 × 470 × 90 mm (17.5" × 18.5" × 3.5")
Weight (without hard disk)	≤ 10 kg (22 lb)
