The steps to access a Hikvision DVR from a mobile are very simple. Just install the iVMS-4500 App in the mobile phone, click the Hik-connect button to create an account and finally add the DVR by pointing the mobile camera to the DVR QR Code. This process is very simple and work for Hikvision remote view.

DS-7732NI-K4/16P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	DS-7732NI-K4/16P
Model:	DS-7732NI-K4/16P - Hikvision NVR 7700 Series
Brand:	Hikvision
Detail:	16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.
	Rating: 92% 4.6/5.0 21 Reviews 1 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$511.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-7732NI-K4/16P

16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.

Price: US$511.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-7732NI-K4/16P Overview

The Hikvision DS-7732NI-K4/16P is a 32 channels network video recorder with a wide array of features, including 16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.

Quick Specs

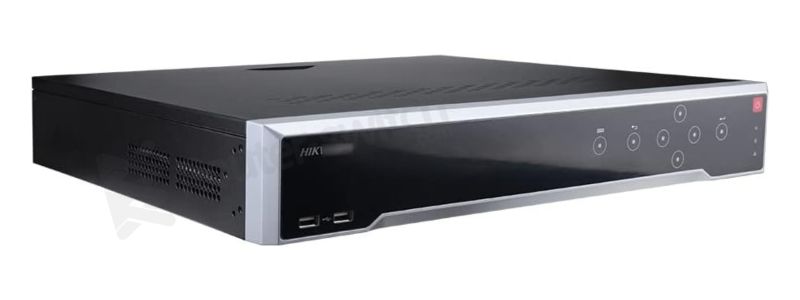

Figure 1 shows the appearance of DS-7732NI-K4/16P.

Table 1 shows the Quick Specs.

Product Code	DS-7732NI-K4/16P
Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Standard	IEEE 802.3 af/at
Power	≤ 200 W
Power Supply	100 to 240 VAC, 50 to 60Hz, 1 A
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10 to 90 %
Dimension (W × D × H)	445 × 400 × 71 mm (17.5"× 15.7" × 2.8")

Product Details

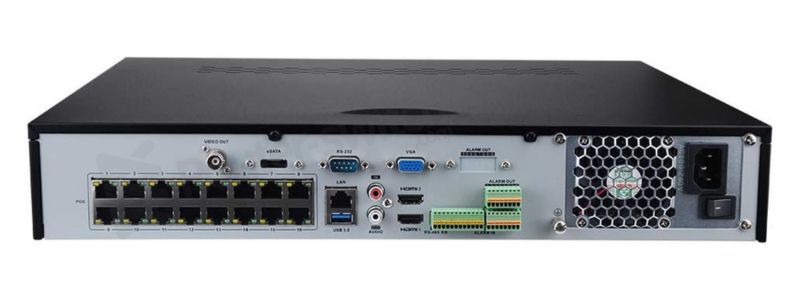

Figure 2 shows the back panel of DS-7732NI-K4/16P.

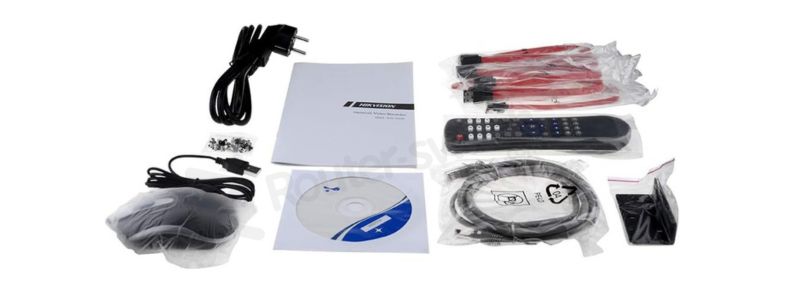

Figure 3 shows kits of DS-7732NI-K4/16P.

Product Features

● Up to 32 channel IP cameras can be connected
● Supports decoding H.265+/H.265/H.264+/H.264 video formats
● Up to 8-ch @ 1080p decoding capacity
● 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
● 4 HDDs for continuous video recording
● Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
● Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
● Channel-zero function ensures smooth remote live view and playback in low bandwidth environments

Compare to Similar Items

Table 2 shows the comparison of DS-7732NI-K4/16P.

Module	DS-7732NI-K4/16P	DS-7708NI-Q4
IP Video Input	32-ch	8-ch, Up to 8 MP resolution
Incoming Bandwidth	256 Mbps	80 Mbps
Power Supply	100 to 240 VAC, 50 to 60Hz, 1 A	100 to 240 VAC, ≤ 80 W
Consumption	≤ 20 W (without enabling PoE and HDD)	≤ 15 W
Dimension (W × D × H)	445 × 400 × 71 mm (17.5"× 15.7" × 2.8")	440 × 393 × 75 mm (17.3" × 15.5" × 3.0")

Get More Information

Do you have any question about the DS-7732NI-K4/16P?

Quality Certifications

Specification

DS-7732NI-K4/16P Specification

DS-7732NI-K4/16P Specifications
Video and Audio
IP Video Input	8-ch
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output	4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output	1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode	HDMI/VGA independent output
Audio Input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-ch
Decoding Capability	2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection	128-ch
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 80 W
Standard	IEEE 802.3 af/at
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each HDD
USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out	4/1
General
Power Supply	48 VDC, 2.5A
Consumption	≤ 15 W (without HDD and PoE off)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10 to 90 %
Dimension (W × D × H)	380 × 317 × 51.5 mm (15.0" × 12.5" × 2.0")
Weight	≤ 3 kg (without HDD, 6.6 lb.)
