main product photo
Name:

DS-7716NI-K4/16P

Model:DS-7716NI-K4/16P - Hikvision Pro NVR
Brand: Hikvision
Detail:
1.5HE 19" 16 channel NVR equipped with 16 PoE inputs and a 4K Ultra HD HDMI output.
Rating:
93%
4.7/5.0
14 Reviews
Price:US$354.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

DS-7716NI-K4/16P

1.5HE 19" 16 channel NVR equipped with 16 PoE inputs and a 4K Ultra HD HDMI output.

Price: US$354.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

DS-7716NI-K4/16P Overview

The Hikvision DS-7716NI-K4/16P is a 1.5HE 19" 16 channel NVR equipped with 16 PoE inputs and a 4K Ultra HD HDMI output. This NVR can handle up to 8Mp cameras. 16 via the built-in PoE switch.

Quick Specs

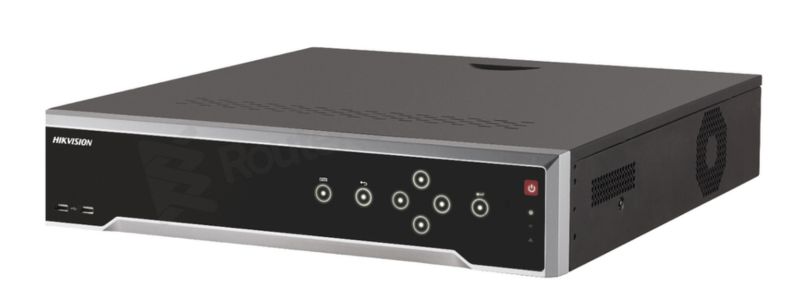

Figure 1 shows the appearance of DS-7716NI-K4/16P.
DS-7716NI-K4/16P appearance

Table 1 shows the Quick Specs.

Product Code

DS-7716NI-K4/16P

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

160 Mbps

Capacity

Up to 6 TB capacity for each HDD

Power Supply

100 to 240 VAC, 50 to 60Hz, 1 A

Consumption

≤ 20 W (without enabling PoE and HDD)

Dimension (W × D × H)

445 × 400 × 71 mm (17.5"× 15.7" × 2.8")

Product Details

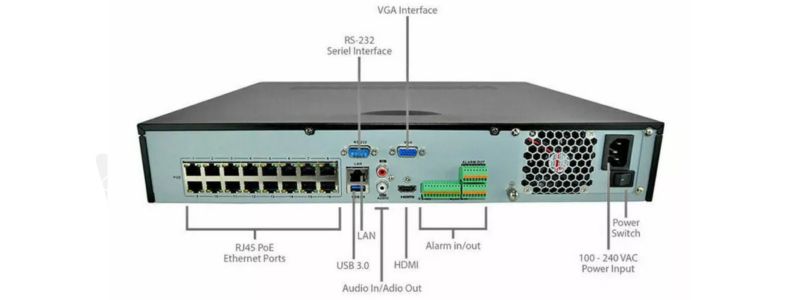

Figure 2 shows the back panel of DS-7716NI-K4/16P.
DS-7716NI-K4/16P front

Product Features

DS-7716NI-K4/16P provides these features:

  • ● Up to 16 channel IP cameras can be connected
  • ● Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • ● Up to 8-ch @ 1080p decoding capacity
  • ● 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • ● 4 HDDs for continuous video recording
  • ● Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
  • ● Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • ● Channel-zero function ensures smooth remote live view and playback in low bandwidth environments

Compare to Similar Items

Table 2 shows the comparison of DS-7716NI-K4/16P.

Module

DS-7716NI-K4/16P

DS-7716NI-Q4/16P

IP Video Input

16-ch

16-ch, Up to 8 MP resolution

Decoding Capability



2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

1-ch @ 8 MP (30 fps) / 4-ch @ 1080p (30 fps)

Power Supply



100 to 240 VAC, 50 to 60Hz, 1 A

100 to 240 VAC or ≤ 300 W

Consumption



≤ 20 W (without enabling PoE and HDD)

≤ 15 W (without enabling PoE)

Working Temperature



-10 °C to 55 °C (14 °F to 131 °F)

-10 °C to 55 °C (14 °F to 131 °F)

Dimension (W × D × H)



445 × 400 × 71 mm (17.5"× 15.7" × 2.8")

440 × 393 × 75 mm (17.3" × 15.5" × 3.0")

Get More Information

Do you have any question about the DS-7716NI-K4/16P?

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

DS-7716NI-K4/16P Specification

DS-7716NI-K4/16P Specification
Video and Audio
IP video input 16-ch
Incoming/outgoing bandwidth 160 Mbps 160 Mbps
HDMI output 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding format H.265/ H.265+/H.264/H.264+/MPEG4
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
Synchronous playback 16-ch
Capability 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
Network
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
POE Interface
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Supported standard IEEE 802.3 af/at
Hard disk
SATA 4 SATA interfaces
Capacity Up to 6 TB capacity for each HDD
External interface
Serial port 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out 16/4
General
Power ≤ 300 W
Power supply 100 to 240 VAC
Consumption (without HDD) ≤ 20 W (without enabling PoE)
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10 to 90 %
Dimensions (W × D × H) 445 × 400 ×71 mm (17.5"× 15.7" × 2.8")
