Name:	DS-7216HUHI-K2
Model:	DS-7216HUHI-K2 - Hikvision TVI DVR
Brand:	Hikvision
Detail:	16-ch 1080p@25fps(Real-Time), 8MP@8fps, 5MP@12fps, 4MP@15fps, 3MP@18fps, Video output: VGA & HDMI Audio I/O: 4 In/ 1 Out Alarm I/O: 16 In/ 4 Out, 32 IP Cam Input, 2 x 10TB SATA
	Rating: 98% 4.9/5.0 8 Reviews
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$420.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-7216HUHI-K2

16-ch 1080p@25fps(Real-Time), 8MP@8fps, 5MP@12fps, 4MP@15fps, 3MP@18fps, Video output: VGA & HDMI Audio I/O: 4 In/ 1 Out Alarm I/O: 16 In/ 4 Out, 32 IP Cam Input, 2 x 10TB SATA

Price: US$420.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-7216HUHI-K2 Overview

The Hikvision DS-7216HUHI-K2 is a 16-channel Turbo HD DVR that supports various camera types, including HD-TVI, AHD, CVI, and analog. It features advanced H.265 Pro+ compression for efficient storage and offers up to 4K ultra-high-definition video output. This DVR is ideal for extensive surveillance needs with up to 16TB storage capacity and a user-friendly interface.

Quick Specs

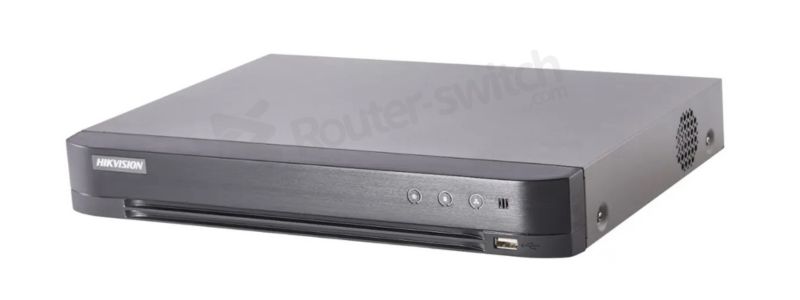

Figure 1 shows the appearance of DS-7216HUHI-K2.

Table 1 shows the Quick Specs.

Product Code	DS-7216HUHI-K2
IP Video Input	16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Video Bit Rate	32 Kbps to 10 Mbps
Audio Bit Rate	64 Kbps
Power Supply	12 VDC
Consumption (Without HDD)	≤ 25 W
Dimension (W × D × H)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Product Details

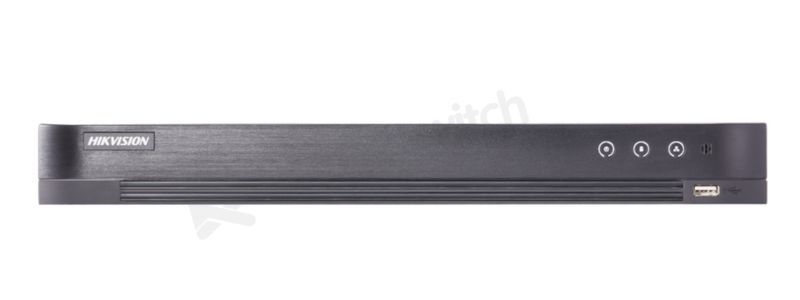

Figure 2 shows the front panel of DS-7216HUHI-K2.

Product Features

DS-7216HUHI-K2 provides these features and benefits:

● 16 channels and 2 HDDs 1U DVR
● Efficient H.265 pro+ compression technology
● Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
● 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
● Up to 32 network cameras can be connected

Get More Information

Do you have any question about the DS-7216HUHI-K2 ?

Quality Certifications

Specification

DS-7216HUHI-K2 Specification

DS-7216HUHI-K2 Specification
Model	DS-7216HUHI-K2
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps to 10 Mbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bit Rate	64 Kbps
Video And Audio
IP Video Input	16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input	5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input	4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input	PAL/NTSC
Audio Input	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback	16-ch
HDTVI Input	8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
VGA/HDMI Output	VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 Ω)
Network
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 10 TB capacity for each disk
Alarm In/Out	16/4
USB Interface	Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
Serial Interface	RS-485 (half-duplex)
General
Power Supply	12 VDC
Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity	10 to 90 %
Dimension (W × D × H)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Consumption (Without HDD)	≤ 25 W
