Name:	DS-2DE4225IW-DE(S5)
Model:	DS-2DE4225IW-DE(S5) - Hikvision Pro PTZ
Brand:	Hikvision
Detail:	4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
	Rating: 95% 4.8/5.0 4 Reviews
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-2DE4225IW-DE(S5)

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-2DE4225IW-DE(S5) Overview

Hikvision DS-2DE4225IW-DE (E) 2MP 25x Network IR Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25x optical zoom lens, the camera offers more details over expansive areas.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	DS-2DE4225IW-DE(S5)
Image Sensor	1/2.8＂ progressive scan CMOS
Power	12 VDC, PoE(802.3at)
Power Consumption and Current	Max. 24 W, including max. 9 W for supplement light
Dimensions	Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")

Product Details

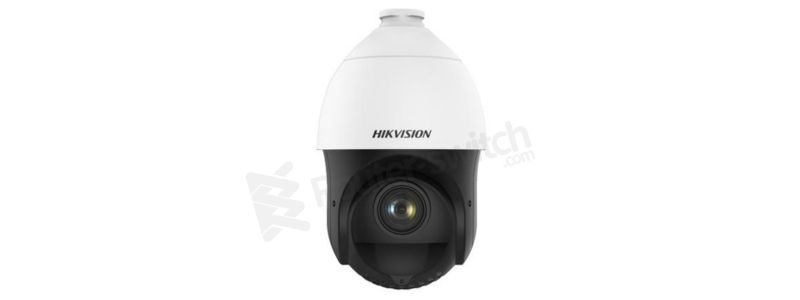

Figure 1 shows the front panel of DS-2DE4225IW-DE(S5).

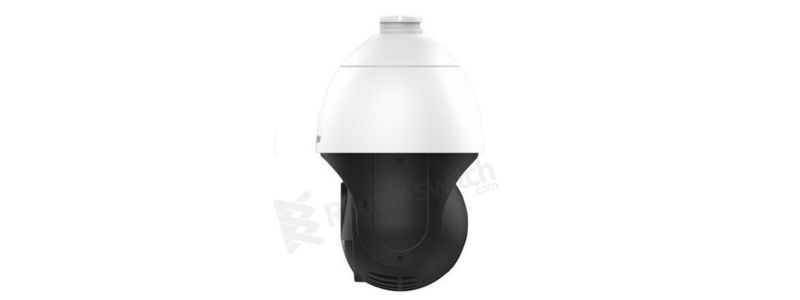

Figure 2 shows the back panel of DS-2DE4225IW-DE(S5).

Product Features

DS-2DE4225IW-DE(S5) provides these features:

● Accurate human and vehicle target classification and alarm based on deep learning algorithm
● Support face capture. Up to 5 faces captured at the same time
● 1/2.8" Progressive Scan CMOS
● Up to 1920 × 1080@30fps resolution
● illumination: Color: 0.005Lux @ (F1.6，AGC ON),B/W: 0.001Lux @(F1.6，AGC ON),0 Lux with IR
● 25× optical zoom, 16× digital zoom
● WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
● Up to 100m IR distance
● 12VDC & POE(802.3at)
● Support H.265+/H.265 video compression

Compare to Similar Items

Table 2 shows the comparison of DS-2DE4225IW-DE(S5).

Module	DS-2DE4225IW-DE(S5)	DS-2DE4415IW-DE(S5)
Image Sensor	1/2.8＂ progressive scan CMOS	1/2.8＂ progressive scan CMOS
Power	12 VDC, PoE(802.3at)	12 VDC, PoE(802.3at)
Power Consumption and Current	Max. 24 W, including max. 9 W for supplement light	Max. 24 W, including max. 9 W for supplement light
Dimensions	Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")	Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")

Get More Information

Do you have any question about the DS-2DE4225IW-DE(S5)?

Quality Certifications

Specification

DS-2DE4225IW-DE(S5) Specification

DS-2DE4225IW-DE(S5) Specification
Camera Module
Image Sensor	1/2.8" progressive scan CMOS
Min. Illumination	0 Lux with IR, color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed	1/1s-1/30000s
Slow Shutter	Yes
Focus	Semi-auto, manual, auto
Day & Night	ICR
Day/Night Switch	Day, night, auto, scheduled-switch
BLC	Yes
WDR	120 dB WDR
HLC	Yes
3D DNR	Yes
Defog	Yes
EIS	Yes
Regional Exposure	Yes
Regional Focus	Yes
Image Settings	Brightness, contrast, sharpness, saturation
White Balance	Auto, ATW, sodium lamp, indoor, fluorescent lamp, outdoor, MWB, Locked WB
Digital Zoom	16x
Optical Zoom	25x
Privacy Mask	Up to 24 masks; polygon region; mosaic mask; mask color configurable
SNR	>52dB
Lens
Focal Length	4.8 mm to 120 mm, 25× Optical
Zoom Speed	Approx. 3.6 s
FOV	Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture	F1.6
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90°(auto flip)
Pan Speed	Configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed	Configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom	Yes
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 pattern scans
Power-off Memory	Yes
Park Action	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning	Yes
PTZ Status Display	Yes
Preset Freezing	Yes
Scheduled Task	Preset, pattern scan, patrol scan, auto scan, panorama scan, random scan, tilt scan, frame scan, dome reboot, dome adjust, aux output
Video
Max. Resolution	1920 × 1080
Stream Type	Main stream, sub-stream, third stream
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	H.265, H.264, MJPEG
Video Bit Rate	32kbps to 16384kbps
H.264 Type	Baseline profile, main profile, high profile
H.265 Type	Main profile
H.264+	Yes
H.265+	Yes
SVC	Yes
ROI	Dynamic face tracking; main stream, sub-stream and third stream respectively support eight fixed areas; fixed region
Audio
Audio Compression	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit Rate	MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate	MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering	Yes
Smart Features
Face Capture	Yes
Basic Event	Audio exception, motion detection, video tampering alarm, exception
Smart Event	Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart Record	ANR, Dual-VCA
Alarm Linkage	Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP
Network
Network Storage	NAS (NFS, SMB/ CIFS), ANR
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API	ISAPI, Hikvision SDK, ONVIF (Profile S, Profile G, Profile T), ISUP, Hik-Connect
Simultaneous Live View	20
User/Host	32
Smooth Streaming	Yes
Security Measures	Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client	iVMS-4200
Web Browser	IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface	1 RJ45 10 M/100 M Ethernet interface, PoE (802.3at), RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage	Support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input	1 alarm input
Alarm Output	1 alarm output
Audio Input	1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output	1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance	100 m
General
Power	12 VDC, PoE (802.3at)
Power Consumption and Current	Max. 24 W, including max. 9 W for supplement light
Operating Conditions	-30℃ to 65℃
Reset	Yes
Material	ADC 12, PC, PC+10% GF
Dimensions	164.5 mm × 290 mm (6.48" × 11.42")
Weight	Approx. 2 kg (4.41 lb)
Approval
Protection	IP66, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
