Name:	DS-2CD2H23G0-IZS
Model:	DS-2CD2H23G0-IZS - Hikvision Network IP Cameras
Brand:	Hikvision
Detail:	2MP Max Resolution, H.265+ Codec, EXIR VF Turret, built-in junction box, IP67, IK10 Protection, 2.8~12mm motorized VF lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
	Rating: 96% 4.8/5.0 5 Reviews
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$165.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

DS-2CD2H23G0-IZS

2MP Max Resolution, H.265+ Codec, EXIR VF Turret, built-in junction box, IP67, IK10 Protection, 2.8~12mm motorized VF lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection

Price: US$165.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

DS-2CD2H23G0-IZS Overview

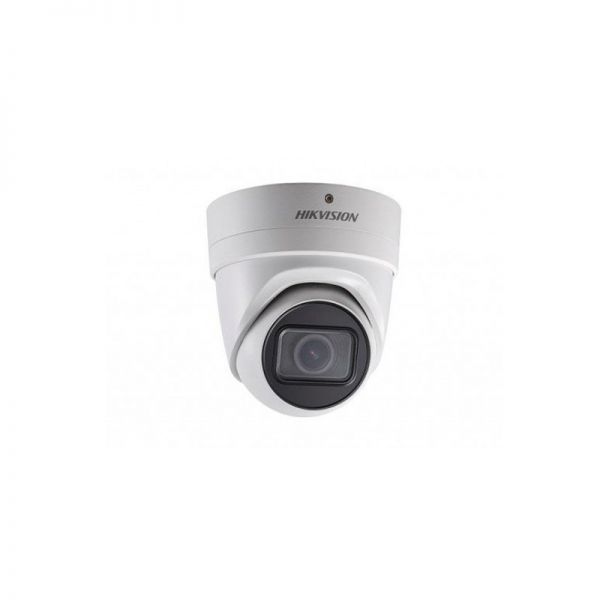

Hikvision DS-2CD2H23G0-IZS is the 2 MP IR Vari-focal Turret Network Camera.

Quick Spec

Table 1 shows the quick spec.

Model	DS-2CD2H23G0-IZS
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	horizontal FOV: 110 to 31 vertical FOV: 58 to 18 diagonal FOV: 136 to 36
Lens Mount	14
Adjustment Range	Pan: 0 to 355, tilt: 0 to 75, rotate: 0 to 360
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Auto

Product Details

Hikvision DS-2CD2H23G0-IZS provides these key features:

1/2.8" Progressive Scan CMOS

1920 1080@30fps

2.8 to 12 mm varifocal lens

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

H.265+, H.265, H.264+, H.264

Three streams

120dB WDR

2 Behavior analyses, and face detection

BLC/3D DNR/ROI/HLC

IP66, IK10

Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

3-Axis adjustment

Compare to Similar Item

Table 2 shows the comparison.

Model	DS-2CD2H23G0-IZS	DS-2CD2H25FWD-IZS
Image Sensor	1/2.8" Progressive Scan CMOS	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR	Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s	1/3 s to 1/100,000 s
Slow shutter	Support	Support
Lens	horizontal FOV: 110 to 31 vertical FOV: 58 to 18 diagonal FOV: 136 to 36	Horizontal field of view: 105to 35 Vertical field of view: 56to 20 Diagonal field of view: 126to 40.5

Get More Information

Do you have any question about the DS-2CD2H23G0-IZS

Quality Certifications

Specification

DS-2CD2H23G0-IZS Specification

DS-2CD2H23G0-IZS Specification
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	horizontal FOV: 110° to 31° vertical FOV: 58° to 18° diagonal FOV: 136° to 36°
Lens Mount	φ14
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	Auto
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	256Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR/ROI/HLC
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping	No
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by alarm in
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Audio	1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	1 input, 1 output (up to 12 VDC, 30 mA), terminal block
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Recognition	Face Detection
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	12 VDC, 0.85A, max. 10W PoE (802.3af, 37V to 57V), 0.35A to 0.2A, max. 12.5W
Impact Protection	IK10
Weather Proof	IP66
IR Range	Up to 30m
Dimensions	Φ 135.8 × 145.5 mm (Φ 5.4" × 5.7")
