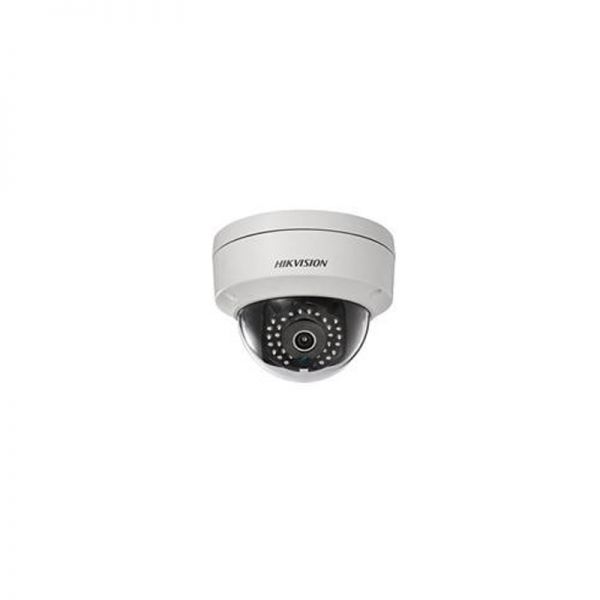

DS-2CD2555FWD-IWS

DS-2CD2555FWD-IWS Specification

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter time

1/3 s to 1/100,000 s

Slow shutter

Support

Lens

2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°

4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92°

6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71°

Lens Mount

M12

Adjustment Range

Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°

Day& Night

IR cut filter with auto switch

Wide Dynamic Range

120 dB

Digital noise reduction

3D DNR

Focus

Fixed

Compression Standard

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate

32Kbps~16Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Triple Streams

Yes


Max. Image Resolution

2944 × 1656

Frame Rate

50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/ROI/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

ROI

Support 1 fixed region for main stream and sub-stream separately

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Network

Network Storage

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

General Function

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

System Compatibility

ONVIF (Profile S, Profile G), ISAPI

Interface

Audio

2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block

Communication Interface

1 RJ45 10M / 100M Ethernet interface

Alarm

1 input, 1 output (max. 12 VDC, 30 mA), terminal block

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Audio

Environment Noise Filtering

Support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Behavior Analysis

Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection

Line Crossing Detection

Cross a pre-defined virtual line

Intrusion Detection

Enter and loiter in a pre-defined virtual region

Unattended Baggage

Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Object Removal

Objects removed from the pre-defined region, such as the exhibits on display.

Exception Detections

Scene change detection

Recognition

Face Detection

Wi-Fi Specification

Wireless Standards

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.412 GHz to 2.4835 GHz

Channel Bandwidth

20/40MHz Support

Transmission Rate

11b: 11Mbps

11g: 54Mbps

11n: up to 150Mbps

Wireless Range

50m(depend on environment)

Protocols

802.11b: DQPSK, DBPSK, CCK

802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK

General

Operating Conditions

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption

12 VDC, 0.625A, max. 7.5W

PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W

Impact Protection

IK08 Protection Level

Weather Proof

IP66

IR Range

Up to 10m

Dimensions

Φ110 mm × 56.4 mm (Φ4.33" × 2.22")
