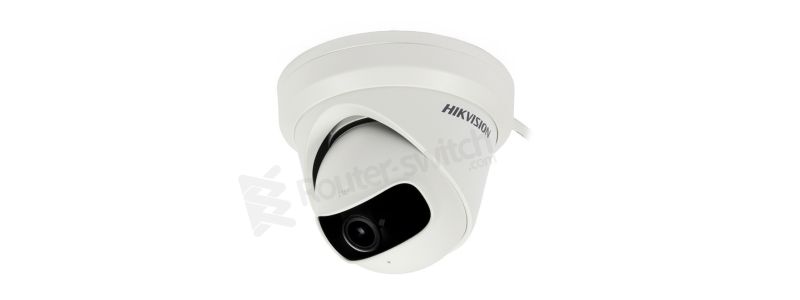

DS-2CD2345G0P-I, Hikvision DS-2CD2345G0P-I Camera, 4MP resolution/Super wide angle/Fixed turret

DS-2CD2345G0P-I Specification

Model

DS-2CD2345G0P-I

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON)

B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 1.68 mm

FOV

1.68 mm, horizontal FOV: 180° , vertical FOV: 101° , diagonal FOV: 180°

Aperture

F2.0

Lens Mount

M12

Illuminator

IR Range

Up to 10 m

Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding support

Region Of Interest (ROI)

1 fixed region for main stream, sub-stream and third stream

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users, 3 levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Network Storage

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+


Day/Night Switch

Day/Night/Auto/Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Interface

On-Board Storage

Built-in micro SD slot, up to 256 GB

Hardware Reset

Reset via reset button on camera body, web browser and client software

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

General

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Storage Conditions

-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)

Startup And Operating Conditions

-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)

Power Consumption And Current

12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W

Camera Dimension

Camera: 127.3 × 104.1 mm (5" × 4.1\")

With package: 150 × 150 × 141 mm (5.9 × 5.9" × 5.6")

Camera Weight

Camera: Approx. 520 g (1.1 lb.)

With package: Approx. 700 g (1.5 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
