PFS4226-24ET-360

24-Port PoE Switch

Price: US$237.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

PFS4226-24ET-360 Overview

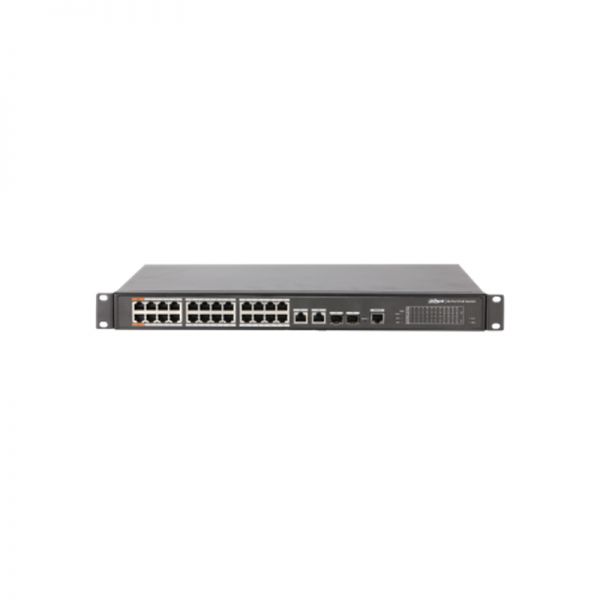

PFS4226-24ET-360 is a dedicated PoE switch designed especially for the security industry. The PoE management function on displays power control and real-time me port consumption on. The switch provides long-distance (250 m / 820 �� ) PoE transmission and a port for Hi-PoE powered devices.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	PFS4226-24ET-360
Ethernet Ports	Two (2) 10/100/1000 Base-T (Combo Port) Two (2) 1000 Base-X (Combo Port) 24 x 10/100 Base-T Ports (PoE Power Supply)
PoE Power Consumption	Ports 1 and 2: Hi-PoE (60 W), PoE+, PoE Maximum per Port: �� 30 W Total Power Consumption: �� 360 W
PoE Protocol	PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.55 Mpps
Power Requirements	100 VAC to 240 VAC
Lightning Protection	Common Mode: 4 KV Differential Mode: 2 V
Dimensions (W x D x H)	440.0 mm x 300.0 mm x 44.0 mm(17.32 in. x 11.81 in. x 1.73 in.)

Product Details

ThePFS4226-24ET-360 provides these features:

* 2 Layer 2 Managed PoE Switch

* Supports PoE, PoE+, and Hi-PoE (use with PFT1300 PoE Extender)

* 360 W PoE Budget

* 250 m (820 �� ) PoE Transmission

* PoE Management, PoE Setting/Event Statistics/Green PoE

* Search and Upgrade via Configuration on Tool

* High Lightning Protection on Design

* Non-blocking Video Transmission

Compare to Similar Items

Table 2shows the comparison.

Product Code	PFS4226-24ET-360	PFS4228-24T
Ethernet Ports	Two (2) 10/100/1000 Base-T (Combo Port) Two (2) 1000 Base-X (Combo Port) 24 x 10/100 Base-T Ports (PoE Power Supply)	21000 Base-X (SFP) 210/100/1000 Base-T 24*10/100 Base-T
Switching Capacity	8.8 Gbps	24.8G
Packet Forwarding Rate	6.55 Mpps	9.52Gpps
MAC Table Size	4K	16K
Port Aggregation	Static Link Aggregation, LACP Protocol	Link aggregation
Port Mirroring	Many-to-One Port Mirroring	Support many-to-one port mirroring
Network Management	Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3	WEB(http and https protocol)
Dimensions (W x D x H)	440.0 mm x 300.0 mm x 44.0 mm(17.32 in. x 11.81 in. x 1.73 in.)	442mmx 263mmx 44.5mm

GetMoreInformation

Do you have anyquestionaboutthePFS4226-24ET-360

Quality Certifications

Specification

PFS4226-24ET-360 Specification

PFS4226-24ET-360 Specification
Ethernet Ports	Two (2) 10/100/1000 Base-T (Combo Port) Two (2) 1000 Base-X (Combo Port) 24 x 10/100 Base-T Ports (PoE Power Supply)
PoE Power Consumption	Ports 1 and 2: Hi-PoE (60 W), PoE+, PoE Maximum per Port: ≤ 30 W Total Power Consumption: ≤ 360 W
PoE Protocol	PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	6.55 Mpps
Power Requirements	100 VAC to 240 VAC
Working Temperature	-10° C to 55° C (14° F to 131° F)
Application Humidity	10% to 90%
Lightning Protection	Common Mode: 4 KV Differential Mode: 2 V
Dimensions (W x D x H)	440.0 mm x 300.0 mm x 44.0 mm (17.32 in. x 11.81 in. x 1.73 in.)
Safety	EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013 UL 60950-1 + CAN/CSA C22.2 No. 60950-1-07
Electromagnetic Compatibility (EMC)	FCC CFR 47 Part 15 subpart B EN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015, EN 55032:2015, EN 6100-3-2:2014, EN 61000-3-3:2013
System	Username/Password: admin/admin
System	IP Address: 192.168.1.110/24
PoE Budget	360 W
MAC Table Size	4K
VLAN	802.1Q Standard VLAN
Spanning Tree	STP, RTSP
Port Aggregation	Static Link Aggregation, LACP Protocol
Port Mirroring	Many-to-One Port Mirroring
DHCP	DHCP-client Support
Long Distance Mode	Power and Data Transmission Distance up to 250 m (820.21 ft)
Flow Control	Half-duplex based on back pressure type control
Flow Control	Full Duplex based on PAUSE Frame
Security Features	IP+MAC Binding, based on port IEEE802.1x Port Authentication
System Maintenance	One-key Recovery, Updated Packet Upload, System Log
QoS	High and Low Priority, WRR, 802.1P, DSCP, Supports priority according to protocol
Network Management	Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3
PoE Management	PoE Setting (real-time port consumption)
	PoE Event Statistics
	Green PoE
